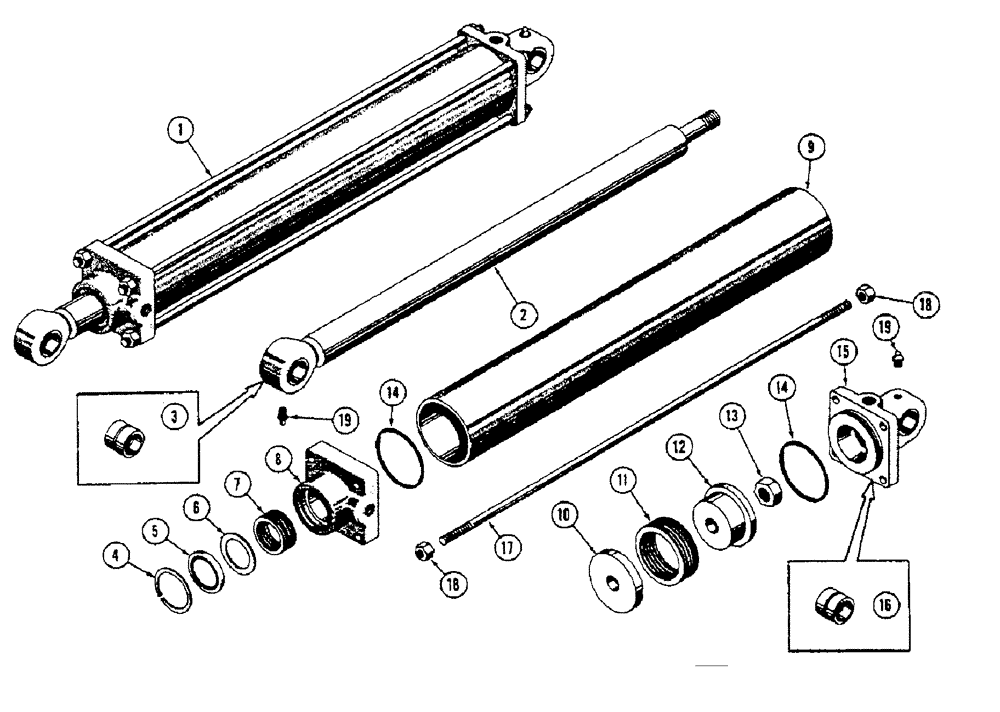

Запчасти Case 600 (280) - HYDRAULIC CYLINDER ASSEMBLY (07) - HYDRAULIC SYSTEM

1

33901

BUSHING

CYLINDER ASS'Y. - hydraulic, terraloader dump

2шт.

2

D20032

END YOKE & PISTON ROD ASS'Y., terraloader dump

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

terraloader dump

2шт.

4

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , terraloader dump 2.125", Int, #212

1шт.

5

17603

WIPER SEAL

- wiper, terraloader dump

1шт.

6

36259

WASHER

- packing, terraloader dump

1шт.

7

17597

PACKING

- rod, terraloader dump

1шт.

8

31657

ARTICULATION

CAP - cylinder end, terraloader dump

1шт.

9

33902

TAB SPRING

TUBE - hydraulic cylinder, terraloader dump

1шт.

10

31661

WASHER

- retainer, terraloader dump

1шт.

11

31662

PACKING

- piston, terraloader dump

1шт.

12

31663

X

BLOCK - piston, terraloader dump

1шт.

13

R12337

NUT

- lock (3/4-16 NF), terraloader dump

1шт.

14

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring, terraloader dump

2шт.

15

D20056

END ASS'Y. - cylinder, terraloader dump

1шт.

16

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

terraloader dump

2шт.

17

33769

ROD - tie, terraloader dump

4шт.

18

131-375

NUT,3/8"-24, GC

- lock (3/8-24 NF), terraloader dump

8шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (49217), Terraloader dump 90º, 1/8" NPT x .84" lg

2шт.
