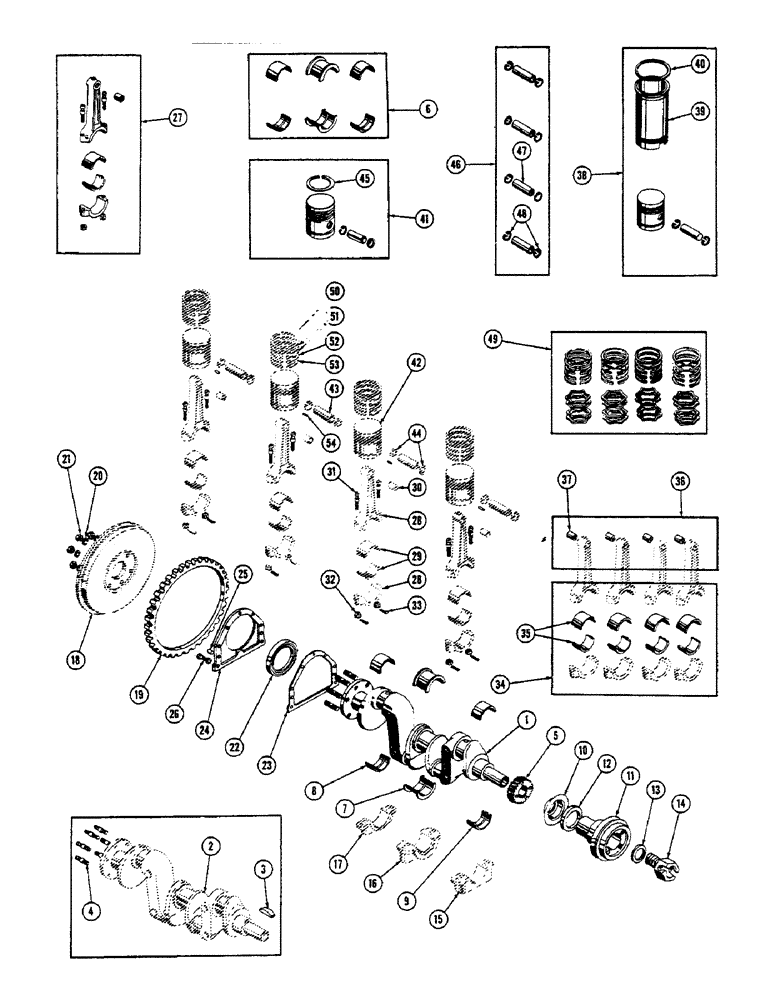

Запчасти Case 600 (016) - DIESEL ENGINE INSTALLATION, FLYWHEEL, CRANKSHAFT, PISTONS (01) - ENGINE

R-2255

CRANKSHAFT & GEAR KIT

1шт.

1

R-11810

CRANKSHAFT ASSY

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

3

10777

LOCK WASHER

KEY - hi pro

1шт.

4

10122

STUD 3/8-24 N.F. x 2-1/8 (Flywheel mtg.)

6шт.

5

10426

SEALING RING COLLAR

GEAR - crankshaft timing

1шт.

6

5485-020

BEARING KIT - crankshaft main (.020 undersize), Serial Range: (Op.-5485)

1шт.

5485

X

CRANKSHAFT BEARING (Standard)

1шт.

7

35422

SCREW

ASSY - c/shaft, center (Upper & lower)

1шт.

8

35420

GASKET

BEARING ASSY - c/shaft, rear (Upper & lower)

1шт.

9

35423

SPARE PART BEARING ASSY - c/shaft, front (Upper & lower)

1шт.

10

10448

THROWER - crankshaft oil

1шт.

11

10147

PULLEY - fan drive

1шт.

12

10681

PIPE FITTING

Dust, c/shaft pulley

1шт.

13

10734

ELEC CONNECTOR

WASHER - plain, pulley retaining

1шт.

14

10449

SEALING RING COLLAR

JAW - c/shaft starting

1шт.

15

REF

INSTRUCTION

CAP - c/shaft front brg. (See Figure #10, ref. #5)

1шт.

16

REF

INSTRUCTION

CAP - c/shaft center brg. (See Figure #10, ref. #6)

1шт.

17

REF

INSTRUCTION

CAP - c/shaft rear brg. (See Figure #10, ref. #7)

1шт.

10119

X

ENGINE FLYWHEEL FLYWHEEL ASSY

1шт.

18

NSS

NOT SOLD SEPARAT

FLYWHEEL

1шт.

19

33835

GEAR WHEEL

Ring

1шт.

20

92-6

LOCK WASHER,3/8"

(10119 mtg.) (48446)

6шт.

21

48162

NUT - light S.F. hex (3/8-24 N.F.) (10119 mtg.)

6шт.

22

N14108

SEAL

SEAL - oil, c/shaft rear brg

1шт.

23

10682

GASKET - seal retainer

1шт.

24

10401

RETAINER - c/shaft rear seal

1шт.

25

30271

SPARE PART Dowel, 1/4 dia. x 15/32 (10401 mtg.)

2шт.

26

10314

LINING

SCREW & LOCKWASHER ASSY, 5/16"-18 N.C. x 3/4 (10401 mtg.)

7шт.

27

NLS

NO LONGER SERVICED

ASSY - connecting

4шт.

28

NSS

NOT SOLD SEPARAT

ROD & CAP - connecting

1шт.

29

REF

INSTRUCTION

BEARING - connecting rod (See ref. #35)

2шт.

30

REF

INSTRUCTION

BUSHING - piston pin (See ref. #37)

1шт.

31

10683

BOLT - connecting rod

2шт.

32

10725

NUT - connecting rod

2шт.

33

132-26

COTTER PIN

3/32" x 3/4" (Conn. rod bolts) (48684)

8шт.

34

5486-020

BEARING KIT - conn. rod (.020 undersize), Serial Range: (Op.-5486)

1шт.

5486

SPARE PART BEARING KIT - conn. rod (Standard)

1шт.

35

R-11816

BEARING ASSY - conn rod (Upper & lower)

4шт.

36

5499

SPARE PART KIT - piston pin bushing

1шт.

37

NSS

NOT SOLD SEPARAT

BUSHING - piston pin

4шт.

38

5490

SPARE PART LINER - assy cylinder

4шт.

REF

INSTRUCTION

RING KIT - piston (See ref. #49)

1шт.

39

10116

SPARE PART LINER - cylinder

1шт.

40

10671

SPARE PART Cylinder liner

2шт.

41

34253-020

PISTON ASSY (.020 oversize), Serial Range: (Op.-34253)

1шт.

34253

PISTON - assy. (Standard)

1шт.

42

NSS

NOT SOLD SEPARAT

PISTON

1шт.

43

REF

INSTRUCTION

PIN - piston (See ref. #47)

1шт.

44

REF

INSTRUCTION

RING - piston pin retaining (See ref. #48)

2шт.

45

33833

PIN

INSERT - top piston groove

1шт.

46

5498

SPARE PART KIT - piston pin

1шт.

47

NSS

NOT SOLD SEPARAT

PIN - piston

4шт.

48

30043

CIRCLIP

RING - piston pin retaining

8шт.

49

34257

TOOTHED SECTOR KIT - piston ring (2 in 1)

1шт.

50

NSS

NOT SOLD SEPARAT

RING - piston, top groove

4шт.

51

NSS

NOT SOLD SEPARAT

RING - piston, 2nd & 3rd groove

8шт.

52

NSS

NOT SOLD SEPARAT

RING - piston, 4th groove

4шт.

53

NSS

NOT SOLD SEPARAT

RING - piston, 5th groove

4шт.

54

10774

LOCK WASHER

PIN - roll, bottom piston ring mtg.

4шт.

R-2361

KIT - shim, cylinder liner (Optional) (Not shown)

1шт.
