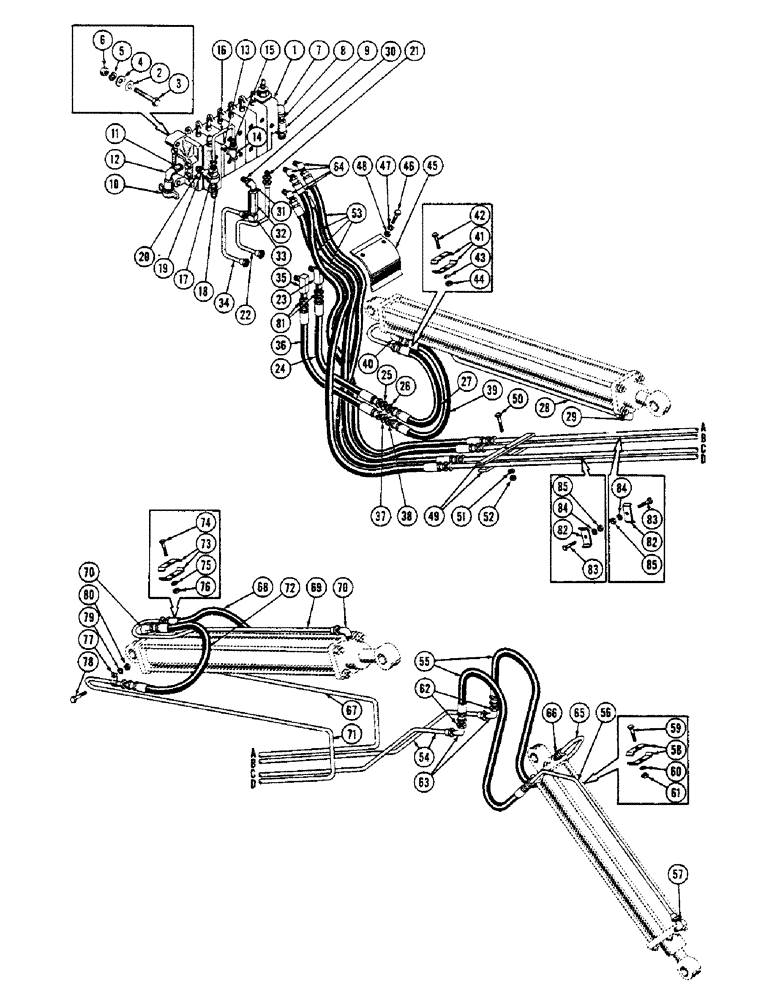

Запчасти Case 600 (274) - BACKHOE HYDRAULICS, BOOM CYLINDER HYDRAULIC, DIPPER CYLINDER HYDRAULICS, DUMP CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

34642

X

VALVE ASS'Y - hydraulic (Used up to ser. #7061039) (See Figure #316 for breakdown)

1шт.

R13330

VALVE ASS'Y - hydraulic (Used from ser. #7061039) (See Figure #312 for breakdown)

1шт.

2

NLS

NO LONGER SERVICED

SHIM - valve mtg., hydraulic system

1шт.

3

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS 1/2-20 NF x 2-1/2 (34642 mtg.) (45712), hydraulic valve sytem

3шт.

4

195-33

WASHER,1/2"

- plain (48428), hydraulic valve sytem

3шт.

5

92-8

LOCK WASHER,1/2"

(48448), hydraulic valve system 1/2"

3шт.

6

25-118

NUT,1/2"-20, G5

- reg. SF hex (48104), hydraulic valve system

3шт.

7

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street (Used up to S/N 7061002) (41674), hydraulic valve system 90º, 3/4"-14, NPT

1шт.

R13332

SUPPORT

ELBOW - 90 degree street, 1" NP (Used from ser. #7061002), hydraulic valve system

1шт.

8

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe, 3/4 NP x 1-3/8 (Used up to ser. #7061002) (41404), hydraulic valve system

1шт.

9

36262

DISCONNECT - quick, male (Used up to ser. #7061002), hydraulic valve system

1шт.

R13356

DISCONNECT - quick, male (Used from ser. #7061002), hydraulic valve system

1шт.

10

36263

DISCONNECT - quick, female (Used up to ser. #7061002), hydraulic valve system

1шт.

R13357

DISCONNECT - quick, female (Used from ser. #7061002), hydraulic valve system

1шт.

11

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - pipe, 3/4 NP x 3 (Used up to ser. #7061002) (41442), hydraulic valve system

1шт.

221-241

X

NIPPLE - pipe, 1" NP x 3 (Used from ser. #7061002), hydraulic valve system

1шт.

12

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street (Used up to S/N 7061002) (41674), hydraulic valve system 90º, 3/4"-14, NPT

1шт.

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

- 90 degree street, 1" NP (Used from ser. #7061002), hydraulic valve system

1шт.

13

221-193

PIPE,Nipple, 1/2" NPT x 3 1/2"

NIPPLE - pipe, 1/2 NP x 3-1/2 (41444), hydraulic valve system

1шт.

14

221-424

TEE,1/2" NPT

- pipe, 1/2 NP (41583), hydraulic valve system

1шт.

15

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (50024), hydraulic valve system

1шт.

16

35154

TUBE ASS'Y - valve to relief valve, hydraulic system

1шт.

17

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (50024), hydraulic valve system

1шт.

18

33959

PIPE FITTING

VALVE ASS'Y - relief (See Figure #295 for breakdown), hydraulic valve system

1шт.

19

221-190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe, 1/2 NP x 2 (41435), hydraulic valve system

1шт.

20

221-60

TUBE

BUSHING - pipe, 1/2 NP to 3/4 NP (41643), hydraulic valve sytem

1шт.

21

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (50024), boom cylinder hydraulic system

1шт.

22

35184

TUBE ASS'Y - valve to boom cylinder hydraulic system

1шт.

23

50880

ELBOW - 90 degree special, boom cylinder hydraulic system 1.312, Int, #131

1шт.

24

35543

HOSE

ASS'Y - valve to boom cylinder hydraulic system

1шт.

25

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ, boom cylinder hydraulic system

1шт.

26

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex jam (7/8-14 NF) (48198), boom cylinder hydraulic system

1шт.

27

35209

HOSE ASSY.

HOSE ASS'Y - valve to boom cylinder hydraulic system

1шт.

28

35206

TUBE ASS'Y - to boom cylinder front ports hydraulic system

1шт.

29

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), boom cylinder hydraulic system

1шт.

30

221-190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe, 1/2 NP x 2 (41435), boom cylinder hydraulic system

1шт.

31

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degree street, 1/2 NP (41673), boom cylinder hydraulic system

1шт.

32

60374

VALVE

ASS'Y - flow control (Used up to ser. #7061002), boom cylinder hydraulic system

1шт.

R13571

VALVE ASS'Y - flow control (Used from ser. #7061002), boom cylinder hydraulic system

1шт.

33

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), boom cylinder hydraulic system

1шт.

34

35178

WEDGE

TUBE ASS'Y - valve to boom cylinder (Used up to ser. #7061002) hydraulic system

1шт.

R13569

TUBE ASS'Y - valve to boom cylinder (Used from ser. #7061002) hydraulic system

1шт.

35

50880

ELBOW - 90 degree special, boom cylinder hydraulic system 1.312, Int, #131

1шт.

36

35543

HOSE

ASS'Y - valve to boom cylinder hydraulic system

1шт.

37

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ, boom cylinder hydraulic system

1шт.

38

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex jam (7/8-14 NF) (48198), boom cylinder hydraulic system

1шт.

39

35209

HOSE ASSY.

HOSE ASS'Y - valve to boom cylinder hydraulic system

1шт.

40

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), boom cylinder hydraulic system

1шт.

41

31665

COLLAR CLAMP

CLAMP - hose (35209 mg.), boom cylinder hydraulic system

2шт.

42

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(31665 mtg.) (45634), Boom cylinder hydraulic system Hex, 5/16"-24 x 1 3/4", G5

1шт.

43

92-5

LOCK WASHER,5/16"

boom cylinder hydraulic system 5/16"

1шт.

44

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), boom cylinder hydraulic system

1шт.

45

35192

BRACKET - top, hose stabilizer, boom cylinder hydraulic system

1шт.

46

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS 3/8-24 NF x 1-3/4 (35192 mtg.) (45659), boom cylinder hydraulic system

4шт.

47

92-6

LOCK WASHER,3/8"

(48446), boom cylinder hydraulic system 3/8"

4шт.

48

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), boom cylinder hydraulic system

4шт.

49

35217

CLAMP - tube, dipper and dump cylinder hydraulic systerm

2шт.

50

14-636

SCREW,Hex, 3/8" - 24 x 2 1/4", Gr 5

HHCS - 3/8-24 NF x 2-1/4 (35217 mtg.) (45661), dipper and dump cylinder hydraulic system

1шт.

51

92-6

LOCK WASHER,3/8"

(48446), dipper and dump cylinder hydraulic systerm 3/8"

1шт.

52

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), dipper and dump cylinder hydraulic system

1шт.

53

35194

OLIVE

HOSE ASS'Y - valve to dump & dipper cylinders hydraulic system

4шт.

54

35195

TUBE ASS'Y - valve to dump cylinder and dipper hydraulic system

2шт.

55

19178

HOSE

ASS'Y - valve to dump cylinder and dipper hydraulic system

2шт.

56

35027

HYD TUBE

TUBE ASS'Y - to dump cylinder front port

1шт.

57

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114)

1шт.

58

32978

PLATE ASSY.

CLAMP - tube (35027 mtg.)

2шт.

59

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(32978 mtg.) (45632) Hex, 5/16"-24 x 1 1/4", G5

1шт.

60

92-5

LOCK WASHER,5/16"

(48445) 5/16"

1шт.

61

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.

62

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex jam (7/8-14 NF) (48198)

2шт.

63

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- 90 degree bulkhead, 5/8 JIC (50526)

2шт.

64

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree male, 5/8 JIC to 1/2 NP (50144)

4шт.

65

35025

TUBE ASS'Y - to dump cylinder rear port

1шт.

66

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (50024)

1шт.

67

35283

TUBE ASS'Y - valve to dipper cylinder

1шт.

68

35197

SHEAVE

HOSE ASS'Y - valve to dipper cylinder

1шт.

69

35206

TUBE ASS'Y - to dipper cylinder front port

1шт.

70

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114)

2шт.

71

35284

TUBE ASS'Y - valve to dipper cylinder

1шт.

72

D27478

HOSE ASSY.

HOSE ASS'Y - valve to dipper cylinder

1шт.

73

31665

COLLAR CLAMP

CLAMP - hose (35197 mtg.)

2шт.

74

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(31665 mtg.) (45634) Hex, 5/16"-24 x 1 3/4", G5

1шт.

75

92-5

LOCK WASHER,5/16"

(48445) 5/16"

1шт.

76

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.

77

49794

GUARD

CLAMP - tube (35283 & 35284 mtg.)

2шт.

78

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(48794 mtg.) (45632) Hex, 5/16"-24 x 1 1/4", G5

2шт.

79

92-5

LOCK WASHER,5/16"

(48445) 5/16"

2шт.

80

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.

81

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex jam (7/8-14 NF) (48198)

2шт.

82

32978

PLATE ASSY.

CLAMP - tube

2шт.

83

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(32978 mtg.) (45634) Hex, 5/16"-24 x 1 3/4", G5

2шт.

84

92-5

LOCK WASHER,5/16"

(48445) 5/16"

2шт.

85

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.
