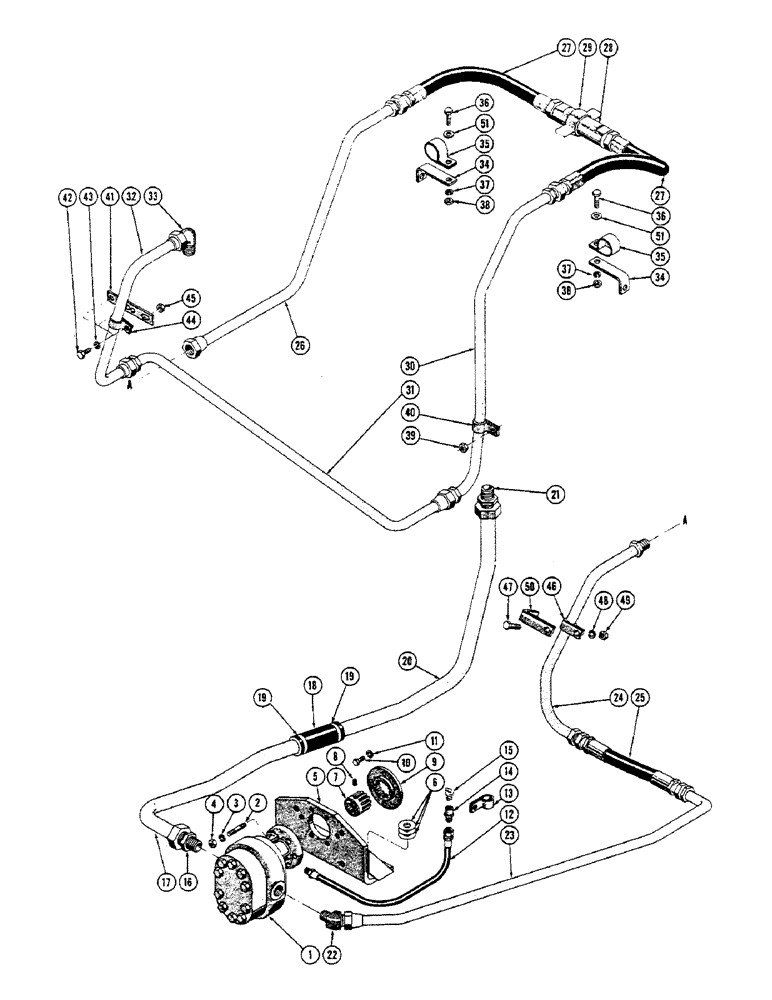

Запчасти Case 600 (272) - BACKHOE PRIMARY HYDRAULICS, (USED FROM SERIAL #7061002) (07) - HYDRAULIC SYSTEM

1

R13331

PUMP ASS'Y - hydraulic

1шт.

2

46513

ROD

STUD - 3/8-16 NC x 3/8-24 NF x 2 (R13331 mtg.)

4шт.

3

92-6

LOCK WASHER,3/8"

(48446) 3/8"

4шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

4шт.

5

33430

PAD

BRACKET ASS'Y - pump mtg.

1шт.

6

33496

BRAKE LINING

SHIMS

1шт.

7

30480

X

COUPLING - male

1шт.

8

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16-18 NC x 1/2 (30480 mtg.)

1шт.

9

10493

COUPLING FLANGE

COUPLING - female

1шт.

10

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(10493 mtg.) Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

11

92-5

LOCK WASHER,5/16"

4шт.

12

74402

HOSE ASS'Y - external lube hose

1шт.

13

R13773

COLLAR CLAMP

CLAMP - insulated (74402 mtg.)

1шт.

14

222-741

HYD CONNECTOR,7/16"-20 45 Degree Fl x 1/8" NPT Fem

CONNECTOR

1шт.

15

REF

INSTRUCTION

FITTING - grease

1шт.

16

R13355

HYD CONNECTOR

CONNECTOR - male 1" NPT x 1-1/4 JIC

1шт.

17

R13110

TUBE ASS'Y -, Serial Range: pump-tank

1шт.

18

R11620

HOSE -, Serial Range: pump-tank

1шт.

19

G10807

CLAMP

- hose (R11620 mtg.)

2шт.

20

R13108

TUBE ASS'Y -, Serial Range: pump-tank

1шт.

21

R13354

CONNECTOR - male 1-1/4 JIC

1шт.

22

218-547

ELBOW,45 Degree, 1 5/16"-12 37 Degree x 3/4"-14, NPTF

- male 3/4 NPT x 3/4 JIC x 45 degrees

1шт.

23

R13323

TUBE ASS'Y -, Serial Range: pump-disconnect

1шт.

24

R13114

TUBE ASS'Y -, Serial Range: pump-disconnect

1шт.

25

R13303

HOSE ASS'Y -, Serial Range: pump-disconnect

1шт.

26

R13120

TUBE ASS'Y -, Serial Range: pump-disconnect

1шт.

27

R13305

HOSE ASS'Y -, Serial Range: pump-disconnect

2шт.

28

R13356

DISCONNECT - quick, male part

1шт.

29

R13357

DISCONNECT - quick, female part

1шт.

30

R13325

TUBE ASS'Y -, Serial Range: disconnect-valve

1шт.

31

R13327

TUBE ASS'Y -, Serial Range: disconnect-valve

1шт.

32

R13301

TUBE ASS'Y -, Serial Range: disconnect-valve

1шт.

33

R14616

ELBOW - special 1" JIC x 1/2 NP

1шт.

34

R10995

BRACKET - tube support

2шт.

35

R13931

CLAMP

- insulated, tube

2шт.

36

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8-24 NF x 1-1/4

2шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

25-116

NUT,Hex, 3/8"-24, G5

- reg SF hex (3/8-24 NF)

2шт.

39

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam (1/2-20 NF)

1шт.

40

51200320

CLAMP

- insulated

1шт.

41

R14209

PLATE - mounting

1шт.

42

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

3шт.

43

92-5

LOCK WASHER,5/16"

3шт.

44

R11405

CLAMP

- tube 1"

1шт.

45

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

46

R11405

CLAMP

- tube 1"

1шт.

47

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

1шт.

48

92-5

LOCK WASHER,5/16"

1шт.

49

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

50

R13363

BRACKET

1шт.

51

195-25

WASHER,3/8"

- plain 3/8

2шт.
