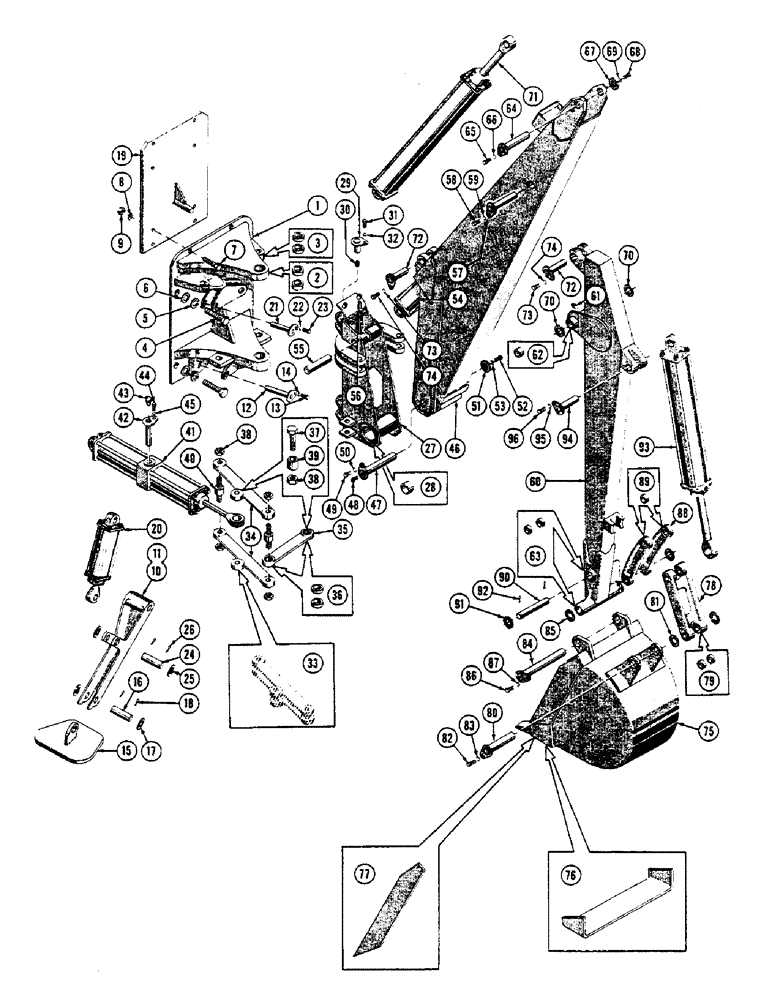

Запчасти Case 600 (262) - BACKHOE INSTALLATION, BUCKET, CYLINDERS, ARMS, LINKAGE, MTG. PARTS (07) - HYDRAULIC SYSTEM

1

34719

BRACKET ASS'Y - mtg.

1шт.

2

70466

BUSHING

4шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

4шт.

4

14-1644

BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd

HHCS 1" - 14 NF x 2-3/4 (34719) (45838)

4шт.

5

92-16

LOCK WASHER,1"

WASHER, LOCK, (48456) 1"

4шт.

6

195-53

WASHER,1" x 2" x .134"

- plain (48436)

4шт.

7

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1-3/4 (34788 mtg.) (45709)

4шт.

8

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

9

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

4шт.

10

34709

ARM - stabilizer, R.H.

1шт.

11

34710

ARM - stabilizer, L.H.

1шт.

12

34629

PIN ASS'Y - (34709 & 34710 mtg.)

2шт.

13

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (34629 mtg.) (45706)

2шт.

14

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

15

35731

BUSHING

FOOT - stabilizer

2шт.

16

35037

PIN (35731 mtg.)

2шт.

17

32625

WASHER

8шт.

18

132-152

PIN

- cotter 1/4 dia. x 1-3/4 (48738)

4шт.

19

34788

HOUSING

PLATE ASS'Y - control valve mtg.

1шт.

20

34942

CYLINDER ASS'Y - hydraulic (See Figure #286 for breakdown)

2шт.

21

34961

PIN ASS'Y (34942 mtg.)

2шт.

22

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (34961 mtg.) (45706)

2шт.

23

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

24

35037

PIN (34942 mtg.)

2шт.

25

32625

WASHER

8шт.

26

132-152

PIN

- cotter, 1/4 dia. x 1-3/4 (48738)

4шт.

27

34727

TOWER ASS'Y

1шт.

28

31139

X

BUSHING

2шт.

29

34900

PIN ASS'Y (34727 mtg.)

2шт.

30

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (49217) 90º, 1/8" NPT x .84" lg

1шт.

31

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (34900 mtg.) (45706)

2шт.

32

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

33

NSS

NOT SOLD SEPARAT

LINK - swing (Used up to serial #12-20-56) (Order ref. #35)

2шт.

34

34711

LINK - swing (Used from serial #12-20-56)

4шт.

35

35030

LINK ASS'Y - swing

2шт.

36

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

4шт.

37

14-1676

HHCS 1"-14 NF x 4-3/4 (34711 mtg.) (45848) Hex, 1"-14 x 4 3/4", G5

4шт.

38

131-370

LOCK NUT

NUT - lock (1"-14 NF) (48378)

12шт.

39

30959

BUSHING - spacer

4шт.

40

D21342

BOLT - spacer

4шт.

41

34920

CYLINDER ASS'Y - hydraulic (Used up to serial #7060417) (See page #292 for breakdown)

2шт.

38871

CYLINDER ASS'Y - hydraulic (Used from serial #7060417) (See page #292 for breakdown)

2шт.

42

35032

X

PIN ASS'Y (34920 or 38871 mtg.)

4шт.

43

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 65 degree grease, 1/8 NP (49219)

1шт.

44

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (35032 mtg.) (45706)

4шт.

45

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

46

34744

BOOM ASS'Y - backhoe

1шт.

47

34902

PIN ASS'Y (34744 mtg.)

1шт.

48

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

1шт.

49

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS 1/2-20 NF x 3/4 (34902 mtg.) (45704)

1шт.

50

92-8

LOCK WASHER,1/2"

(48448) 1/2"

1шт.

51

R11065

WASHER - boom

1шт.

52

14-1220

HHCS 3/4-16 NF x 1-1/4 (34902 mtg.) (45782)

1шт.

53

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

1шт.

54

34886

CYLINDER ASS'Y - hydraulic (See Figure #288 for breakdown)

1шт.

55

34949

PIN (34886 mtg.)

1шт.

56

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, , Lock (49870) 3/8" x 2 1/2", Slotted

1шт.

57

34897

PIN ASS'Y (34886 mtg.)

1шт.

58

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (34897 mtg.) (45706)

1шт.

59

92-8

LOCK WASHER,1/2"

(48448) 1/2"

1шт.

60

34765

SHIM

ARM ASS'Y - dipper

1шт.

61

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

2шт.

62

31148

BUSHING

2шт.

63

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

8шт.

64

34896

PIN ASS'Y (34765 mtg.)

1шт.

65

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (34896 mtg.) (45706)

1шт.

66

92-8

LOCK WASHER,1/2"

(48448) 1/2"

1шт.

67

38617

WASHER - boom

1шт.

68

14-1220

HHCS 3/4-16 NF x 1-1/4 (34896 mtg.) (45782)

1шт.

69

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

1шт.

70

31928

WASHER

2шт.

71

34886

CYLINDER ASS'Y - hydraulic (See Figure #288 for breakdown)

1шт.

72

31109

PIN ASSY.

PIN ASS'Y (34886 mtg.)

2шт.

73

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (31190 mtg.) (45706)

2шт.

74

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

75

D20810

BUCKET ASS'Y - 24" (Standard)

1шт.

D20807

BUCKET ASS'Y - 14", Serial Range: (Optional-35271)

1шт.

D20808

BUCKET ASS'Y - 16", Serial Range: (Optional-35271)

1шт.

D20809

BUCKET ASS'Y - 19", Serial Range: (Optional-35271)

1шт.

D20811

BUCKET ASS'Y - 30", Serial Range: (Optional-35271)

1шт.

37910

BUCKET ASS'Y - grave, 38", Serial Range: (Optional-35271)

1шт.

37698

BUCKET ASS'Y - bell hole, 16", Serial Range: (Optional-35271)

1шт.

37446

BUCKET ASS'Y - bell hole, 30", Serial Range: (Optional-35271)

1шт.

76

35277

KNIFE

BLADE - cutting (For D20810 bucket)

1шт.

37289

BLADE - cutting (For D20807 bucket)

1шт.

36894

BLADE - cutting (For D20808 bucket)

1шт.

35282

FINGER

BLADE - cutting (For D20809 bucket)

1шт.

35294

BLADE - cutting (For D20811 bucket)

1шт.

37908

BLADE - cutting (For #37910 bucket)

1шт.

37448

BLADE - cutting (For #37446 bucket)

1шт.

37696

BLADE - cutting (For #37698 bucket)

1шт.

77

35498

RING

BLADE - cutting, R.H. (For 35271, 37536, 37535, 35287 & 35293 buckets)

1шт.

35499

RING

BLADE - cutting, L.H. (For 35271, 37536, 37535, 35287, & 35293 buckets)

1шт.

78

34974

LINK ASS'Y - bucket dump

1шт.

79

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

8шт.

80

35290

PIN

ASS'Y (34974 mtg.)

1шт.

81

32625

WASHER

4шт.

82

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS 1/2-20 NF x 3/4 (35290 mtg.) (45705)

1шт.

83

92-8

LOCK WASHER,1/2"

(48448) 1/2"

1шт.

84

35288

PIN ASS'Y (Bucket mtg.)

1шт.

85

32625

WASHER

2шт.

86

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (35288 mtg.) (45706)

1шт.

87

92-8

LOCK WASHER,1/2"

(48448) 1/2"

1шт.

88

34973

LINK ASS'Y - bucket dump

2шт.

89

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

90

34999

PIN (34973 mtg.)

2шт.

91

32625

WASHER

4шт.

92

132-152

PIN

- cotter, 1/4 dia. x 1-3/4 (48738)

4шт.

93

30530

BOLT,Hex Flg, 5/16" - 18 x 2 1/4"

CYLINDER ASS'Y - hydraulic (See Figure #286 for breakdown)

1шт.

94

31109

PIN ASSY.

PIN (30530 mtg.)

1шт.

95

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (31109 mtg.) (45706)

1шт.

96

92-8

LOCK WASHER,1/2"

(48448) 1/2"

1шт.
