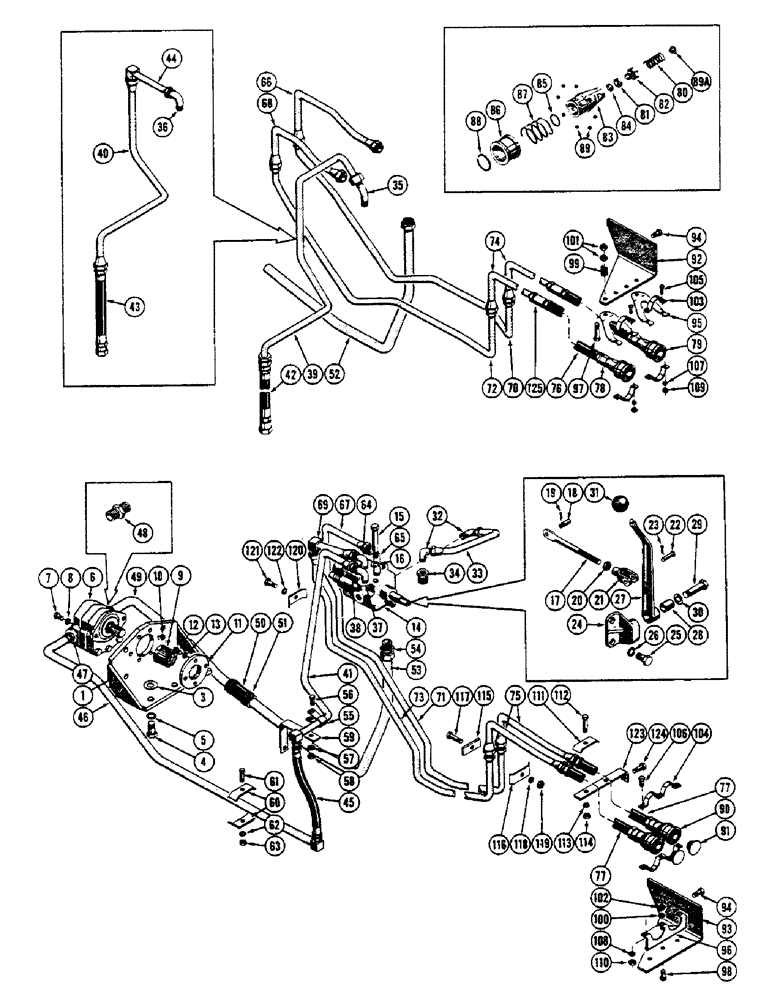

Запчасти Case 600 (230) - SINGLE PULL-BEHIND INSTALLATION,, VALVE, LEVERS, PUMP, TUBES, HOSES, FITTINGS (FROM S/N 7060799) (07) - HYDRAULIC SYSTEM

1

33430

PAD

BRACKET - hydraulic pump mtg. system

1шт.

2

RESERVED

1шт.

3

NLS

NO LONGER SERVICED

SHIM - .010 thick, hydraulic pump system

1шт.

4

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(30640 mtg.) (45158), hydraulic pump system Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450), Hydraulic pump system 5/8"

2шт.

6

31615

CAP

PUMP ASS'Y - hydraulic (See Figure #300 for breakdown) system

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(31615 mtg.) (45056), hydraulic pump system Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

(48446), hydraulic pump system 3/8"

2шт.

9

R13925

COUPLING

- male, hydraulic pump system

1шт.

10

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16-18 NC x 1/2 (30480 mtg.) (47306), hydraulic pump system

1шт.

11

R13926

COUPLING

- female, hydraulic pump system

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(10493 mtg.) (45029), hydraulic pump system Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

92-5

LOCK WASHER,5/16"

(48445), hydraulic pump system 5/16"

4шт.

14

74500

VALVE ASS'Y - hydraulic control (See Figure #326 for breakdown), lever system

1шт.

15

62-864

SHCS 1/2-20 NF x 4 (74500 mtg.) (47570), lever and valve system

2шт.

16

92-8

LOCK WASHER,1/2"

(48448), lever and valve system 1/2"

2шт.

17

35620

SHIM

LINK - valve control, lever system

1шт.

18

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (48661), lever and valve system

1шт.

19

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (48672), Lever and valve system 1/16" x 1/2"

1шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), lever and valve system

1шт.

21

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603), lever and valve system

1шт.

22

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663), Lever and valve system 3/8" x 1.060"

1шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683), lever and valve system

1шт.

24

32322

BRACKET - control lever and valve system

1шт.

25

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(32322 mtg.) (45654), lever and valve system Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

(48446), lever and valve system 3/8"

2шт.

27

38865

LEVER - valve control system

1шт.

28

32362

WASHER

- spacer, lever and valve system

1шт.

29

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1-3/4 (38865 mtg.) (45709), lever and valve system

1шт.

30

195-33

WASHER,1/2"

- plain (48428), lever and valve system

1шт.

31

CAS31375

KNOB

BALL - grip, lever and valve system

1шт.

32

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 JIC to 3/4 NP (50116), primary hydraulic system

2шт.

33

R10979

TUBE ASS'Y - valve to tank, primary hydraulic system

1шт.

34

221-69

BUSHING

- pipe, 3/4 NP to 1-1/4 NP (41659), primary hydraulic system

1шт.

35

218-546

ELBOW,45 Degree, 1 1/16-12" 37 Degree x 1/2"-14, NPTF

- 45 degree male, 1/2 NP to 3/4 JIC (Used up to serial #7060922), primary hydraulic system

1шт.

36

221-563

ELBOW - 90 degree street, 1/2 NP to 3/4 NP (Used from serial #7060922 and up to serial #7061017), primary hydraulic system

1шт.

37

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degree street, 1/2 NP to 1/2 NP (Used from serial #7061017), primary hydraulic system

1шт.

38

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 1/2 NP to 3/4 JIC (Used from serial #7061017), primary hydraulic system

1шт.

39

33404

TUBE ASS'Y - valve to pump (Used up to serial #7060922), primary hydraulic system

1шт.

40

R10834

TUBE ASS'Y - valve to pump (Used from serial #7060922 and up to serial #7061017), primary hydraulic system

1шт.

41

R11501

TUBE ASS'Y - valve to pump (Used from serial #7061017), primary hydraulic system

1шт.

42

35964

HOSE ASS'Y - valve to pump (Used up to serial #7060922), primary hydraulic system

1шт.

43

R10853

HOSE ASS'Y - valve to pump (Used from serial #7060922 and up to serial #7061017), primary hydraulic system

1шт.

44

R10975

TUBE ASS'Y - valve to pump (Used from serial #7060922 and up to serial #7061017), primary hydraulic system

1шт.

45

R11503

HOSE ASS'Y - valve to pump (Used from serial #7061017), primary hydraulic system

1шт.

46

35962

SUPPORT

TUBE ASS'Y - valve to pump, primary hydraulic system

1шт.

47

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 3/4 NP to 3/4 JIC (50026), primary hydraulic system

1шт.

48

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" NP to 1" JIC (50029), primary hydraulic system

11шт.

49

33401

TUBE ASS'Y - pump to tank, primary hydraulic system

1шт.

50

32798

HOSE

- low pressure, primary hydraulic system

1шт.

51

49766

AUGER

CLAMP - hose, primary hydraulic system

2шт.

52

33402

TUBE ASS'Y - pump to tank (Used up to serial #7060922), primary hydraulic system

1шт.

53

R10836

TUBE ASS'Y - pump to tank (Used from serial #7060922), primary hydraulic system

1шт.

54

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 3/4 NP to 1" JIC (50030), primary hydraulic system

1шт.

55

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- tube (R10834 or R11501 mtg.) (Used from serial #7060922), primary hydraulic system

1шт.

56

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(49858 mtg.) (Used from S/N 7060922) (45629), primary hydraulic system Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

57

92-5

LOCK WASHER,5/16"

(Used from serial #7060922), primary hydraulic system 5/16"

1шт.

58

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (Used from ser. #7060922), primary hydraulic system

1шт.

59

33925

BRACKET - tube support (Used from serial #7060922), primary hydraulic system

1шт.

60

31665

COLLAR CLAMP

CLAMP - tube (35962 mtg.), primary hydraulic system

2шт.

61

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1-1/2 (31665 mtg.) (45633), primary hydraulic system

1шт.

62

92-5

LOCK WASHER,5/16"

(48445), primary hydraulic system 5/16"

1шт.

63

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), primary hydraulic system

1шт.

64

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), pull-behind hydraulic system

1шт.

65

218-498

ELBOW - 90 degree extra long male, 5/8 JIC to 1/2 NP (50571), pull-behind hydraulic system 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

66

38400

TUBE ASS'Y - valve to quick disconnect (Used up to serial #7060938), pull-behind hydraulic system

1шт.

67

R11004

TUBE ASS'Y - valve to quick disconnect (Used from serial #7060938), pull-behind hydraulic system

1шт.

68

38402

TUBE ASS'Y - valve to quick disconnect (Used up to serial #7060938), pull-behind hydraulic system

1шт.

69

R11002

TUBE ASS'Y - valve to quick disconnect (Used from serial #7060938), pull-behind hydraulic system

1шт.

70

39496

SPINDLE

TUBE ASS'Y - valve to quick disconnect (Used up to serial #7060938), pull-behind hydraulic system

1шт.

71

74923

WASHER

TUBE ASS'Y - valve to quick disconnect (Used from serial #7060938), pull-behind hydraulic system

1шт.

72

39498

SPINDLE

TUBE ASS'Y - valve to quick disconnect (Used up to serial #7060938), pull-behind hydraulic system

1шт.

73

74927

TUBE ASS'Y - valve to quick disconnect (Used from serial #7060938), pull-behind hydraulic system

1шт.

74

19184

TUBE ASS'Y - valve to quick disconnect (Used up to serial #7060938), pull-behind hydraulic system

2шт.

75

74921

TUBE ASS'Y - valve to quick disconnect (Used from serial #7060938), pull-behind hydraulic system

2шт.

76

A-7784

HOSE ASS'Y - valve to quick disconnect (Used up to serial #7060938), pull-behind hydraulic system

2шт.

77

74931

HOSE ASS'Y - valve to quick disconnect (Used from serial #7060938), pull-behind hydraulic system

2шт.

78

O9466AB

X

CONNECTOR - socket (Used up to serial #7-27-58), pull-behind hydraulic system

2шт.

79

4026AA

X

SOCKET - break-away (Used up to serial #7-27-58), pull-behind hydraulic system

2шт.

80

A11324

SPRING

- coupling piston, pull-behind hydraulic system

1шт.

81

A11325

X

RETAINER - seal, pull-behind hydraulic system

1шт.

82

6119A

X

PISTON - break-away coupling socket, pull-behind hydraulic system

1шт.

83

O8371AB

BODY - female break-away coupling socket, pull-behind hydraulic system

1шт.

84

O8372AB

X

SEAL - break-away coupling piston, pull-behind hydraulic system

1шт.

85

O8377AB

X

SEAL - "O" ring, break-away coupling socket body, pull-behind hydraulic system

1шт.

86

O8378AB

X

SLEEVE - break-away coupling socket body ball retaining, pull-behind hydraulic system

1шт.

87

O8379AB

X

SPRING - coupling socket body retaining sleeve, pull-behind hydraulic system

1шт.

88

O8380AB

X

RING - snap, coupling socket rubber, pull-behind hydraulic system

1шт.

89

O8635AB

X

BALL - break-away coupling socket locking, pull-behind hydraulic system

8шт.

89a

G16517

SPACER

- control, pull-behind hydraulic system

1шт.

90

R12203

SOCKET - break-away (Used from serial #7-27-58), pull-behind hydraulic system

2шт.

91

R12205

CAP - dust (Used from serial #7-27-58), pull-behind hydraulic system

2шт.

92

34925

BRACKET - break-away coupling (Used up to serial #7-27-58), pull-behind hydraulic system

1шт.

93

R12282

BRACKET - break-away coupling (Used from serial #7-27-58), pull-behind hydraulic system

1шт.

94

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1-3/4 (34925 or R12282 mtg.) (45709), pull-behind hydraulic system

2шт.

95

O8388AB

X

BRACKET - brea-away coupling (Used up to serial #7-27-58), pull-behind hydraulic system

2шт.

96

G10942

BRACKET - break-away coupling (Used from serial #7-27-58), pull-behind hydraulic system

1шт.

97

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS 3/8-24 NF x 1-3/4 (O8388AB mtg.) (Used up to serial #7-27-58), pull-behind hydraulic system

2шт.

98

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS 3/8-24 NF x 7/8 (G-10942 mtg.) (Used from ser. #7-27-58), pull-behind hydraulic system

2шт.

99

O1554ABI

SPRING - bracket mtg. (Used up to serial #7-27-58), pull-behind hydraulic system

2шт.

100

92-6

LOCK WASHER,3/8"

(Used from serial #7-27-58), pull-behind hydraulic system 3/8"

2шт.

101

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (Used up to serial #7-27-58), pull-behind hydraulic system

4шт.

102

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (Used from serial #7-27-58), pull-behind hydraulic system

2шт.

103

O8606AB

X

CLAMP - break-away socket (Used up to serial #7-27-58), pull-behind hydraulic system

4шт.

104

R12206

CLAMP - break-away socket (Used from serial #7-27-58), pull-behind hydraulic system

2шт.

105

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

RHMS #8-32 x 5/8 (O8606AB mtg.) (Used up to ser. #7-27-58), pull-behind hydraulic system

4шт.

106

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

HHCS 1/4-28 NF x 5/8 (R12206 mtg.) (Used from serial #7-27-58), pull-behind hydraulic system

3шт.

107

192-6

LOCK WASHER,#8

WASHER, LOCK, (Used up to S/N 7-27-58), pull-behind hydraulic system #8

4шт.

108

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (Used from S/N 7-27-58), Pull-behind hydraulic system 1/4"

3шт.

109

129-6

NUT,#8-32

(Used up to S/N 7-27-58), pull-behind hydraulic system #8-32

4шт.

110

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF) (Used from serial #7-27-58), pull-behind hydraulic system

3шт.

111

31665

COLLAR CLAMP

CLAMP - hose (A-7784 or 74931 mtg.), pull-behind hydraulic system

1шт.

112

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 (31665 mtg.) (45635), pull-behind hydraulic system

1шт.

113

92-5

LOCK WASHER,5/16"

(48445), pull-behind hydraulic system 5/16"

1шт.

114

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), pull-behind hydraulic system

1шт.

115

71603

SPACER - tube clamp, pull-behind hydraulic system

1шт.

116

31665

COLLAR CLAMP

CLAMP - tube (74923 & 74927 mtg.), pull-behind hydraulic system

1шт.

117

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 (31665 mtg.) (45635), pull-behind hydraulic system

1шт.

118

92-5

LOCK WASHER,5/16"

(48445), pull-behind hydraulic system 5/16"

1шт.

119

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), pull-behind hydraulic system

1шт.

120

32978

PLATE ASSY.

CLAMP - tube (74923 & 74927 mtg.), pull-behind hydraulic system

1шт.

121

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(32978 mtg.) (45632), Pull-behind hydraulic system Hex, 5/16"-24 x 1 1/4", G5

1шт.

122

92-5

LOCK WASHER,5/16"

(48445), pull-behind hydraulic system 5/16"

1шт.

123

33422

BRACKET - hose support, pull-behind hydraulic system

1шт.

124

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(33422 mtg.) (45634), Pull-behind hydraulic system Hex, 5/16"-24 x 1 3/4", G5

1шт.

125

221-338

COUPLING,Pipe, 1/2" NPT

- female (Used up to serial #7-27-58), pull-behind hydraulic system

2шт.
