Запчасти Case 600 (228) - SPECIAL HYD. FOR SINGLE PULL-BEHIND - DOZER COMBINATION, DIVERSION VALVE, TUBES, HOSES, FITTINGS (07) - HYDRAULIC SYSTEM

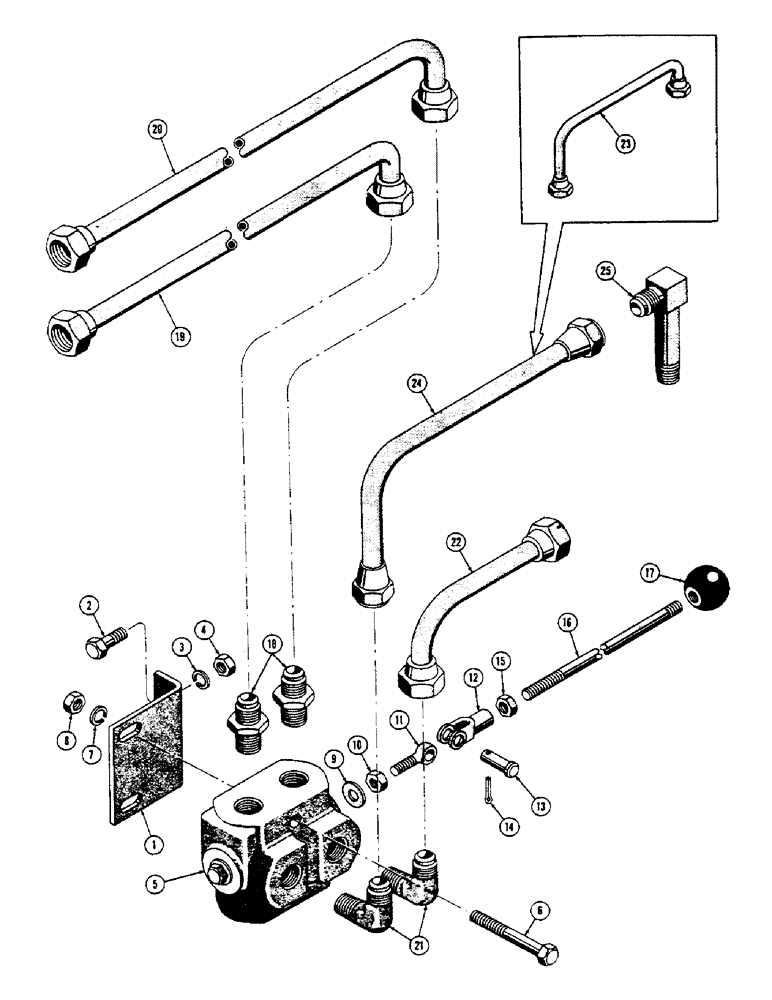

Схема запчастей Case 600 - (228) - SPECIAL HYD. FOR SINGLE PULL-BEHIND - DOZER COMBINATION, DIVERSION VALVE, TUBES, HOSES, FITTINGS (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

32211

ROLL PIN

BRACKET - diversion valve mtg.

1шт.

2

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (32211 mtg.) (45656)

2шт.

3

92-6

LOCK WASHER,3/8"

(48446) 3/8"

2шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

2шт.

5

16628

SEAL

VALVE ASS'Y - diversion

1шт.

6

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

HHCS 3/8-24 NF x 3 (16628 mtg.) (45664)

2шт.

7

92-6

LOCK WASHER,3/8"

(48446) 3/8"

2шт.

8

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

2шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- plain (48405)

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

- reg. SF hex (5/16-18 NC) (47801)

1шт.

11

32254

END - rod

1шт.

12

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603)

1шт.

13

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

1шт.

14

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), (48685) 3/32" x 1"

1шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

1шт.

16

32255

SPARE PART

ROD - diversion valve control

1шт.

17

31375

WASHER

BALL - grip

1шт.

18

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (50024)

2шт.

19

33474

BOLT

TUBE ASS'Y - diversion, Serial Range: valve-manifold

1шт.

20

33475

TOOTH

TUBE ASS'Y - diversion, Serial Range: valve-manifold

1шт.

21

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114)

2шт.

22

19255

TUBE ASS'Y - diversion, Serial Range: valve-valve

1шт.

23

19256

BUSHING

TUBE ASS'Y - diversion valve to valve (Used up to serial #7060361)

1шт.

24

38789

KIT

TUBE ASS'Y - diversion valve to valve (Used from serial #7060361)

1шт.

25

218-498

ELBOW - 90 degree extra long male, 5/8 JIC to 1/2 NP (Used from serial #7060361) 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

Выбрано товаров: 25
