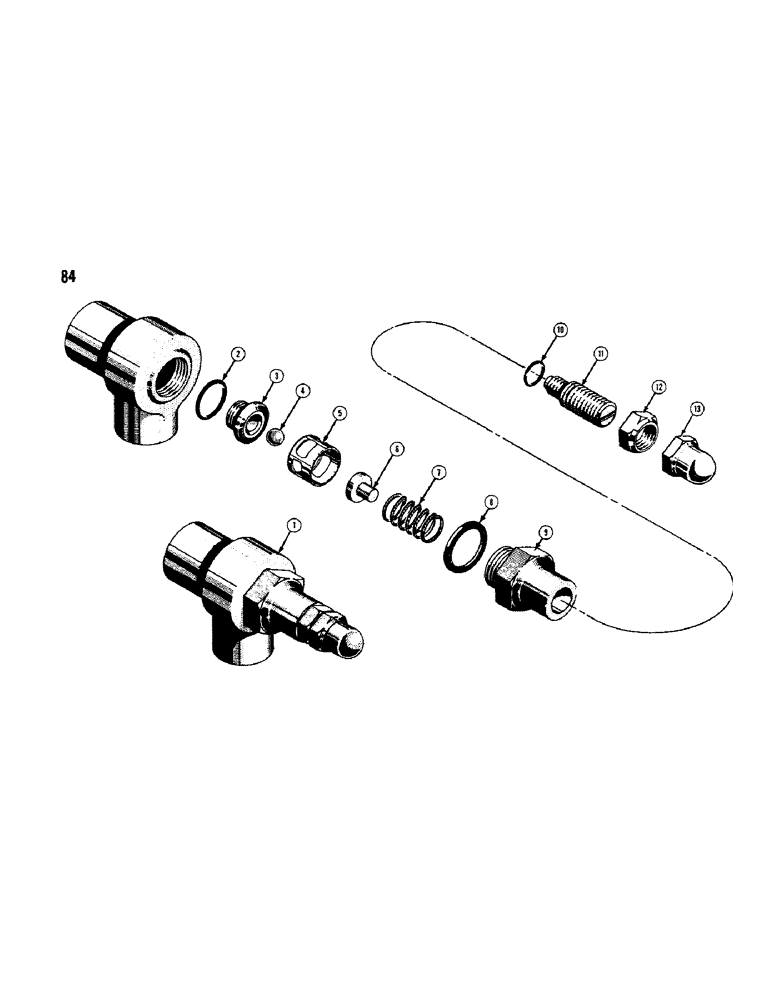

Запчасти Case 520 (184) - 33959 SPECIAL RELIEF VALVE, TERRALOADR AND BACKHOE (07) - HYDRAULIC SYSTEM

1

NLS

NO LONGER SERVICED

VALVE - relief

1шт.

2

O8416AB

X

SEAL - "O" ring

1шт.

3

34119

SEAT, VALVE

SEAT - valve

1шт.

4

O7210AB

X

BALL - relief

1шт.

5

D24389

COLLAR - jam

1шт.

6

CAS34120

BUSHING

SPACER - spring

1шт.

7

34114

VALVE, PRESSURE RELI

SPRING - relief valve

1шт.

8

34115

GASKET

1шт.

9

34113

BODY

CAP - hex. body

1шт.

10

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

11

34110

ADJUSTMENT SCREW

- adjusting

1шт.

12

34111

X

NUT - hex. jam

1шт.

13

34109

NUT - acorn

1шт.

1

D24452

VALVE

- relief, special (terraload'r and backhoe)

1шт.

2

D23928

O-RING

SEAL - "O" ring, D24452 special relief valve (terraload'r and backhoe)

1шт.

3

D24406

SEAT

- valve, D24452 special relief (terraload'r and backhoe)

1шт.

4

O7210AB

X

BALL - relief, D24452 special valve (terraload'r and backhoe)

1шт.

5

D24389

COLLAR - jam, D24452 special relief valve (terraload'r and backhoe)

1шт.

6

CAS34120

BUSHING

SPACER - spring, D24452 special relief valve (terraload'r and backhoe)

1шт.

7

34114

VALVE, PRESSURE RELI

SPRING - relief valve, D24452 special (terraload'r and backhoe)

1шт.

8

34115

GASKET

D24452 special relief valve (terraload'r and backhoe)

1шт.

9

34113

BODY

CAP - hex. body, D24452 special relief valve (terraload'r and backhoe)

1шт.

10

34112

CLIP

SEAL - "O" ring, D24452 special relief valve (terraload'r and backhoe)

1шт.

11

34110

ADJUSTMENT SCREW

- adjusting, D24452 special relief valve (terraload'r and backhoe)

1шт.

12

34111

X

NUT - hex. , D24452 special relief valve (terraload'r and backhoe)jam

1шт.

13

34109

NUT - acorn, D24452 special relief valve (terraload'r and backhoe)

1шт.
