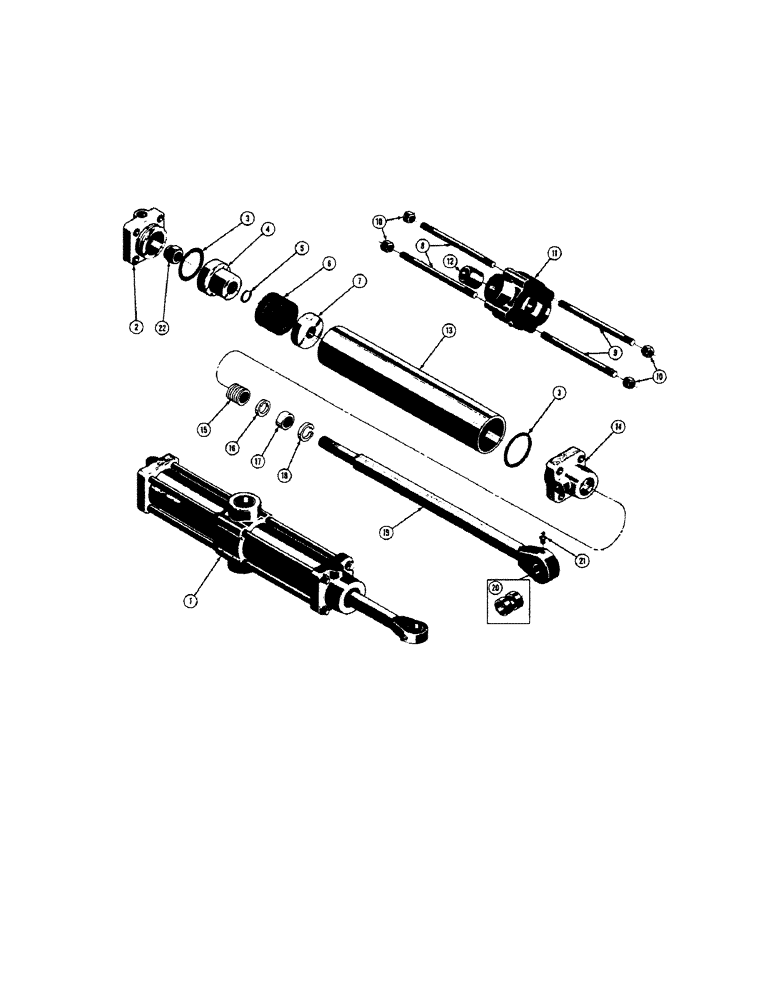

Запчасти Case 520 (180) - BACKHOE HYDRAULIC SWING CYLINDERS (07) - HYDRAULIC SYSTEM

1

D23257

CYLINDER - hydraulic, swing

2шт.

2

34888

END

- cylinder

1шт.

3

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring

2шт.

4

30631

X

PISTON - cylinder (Does not use "O" ring) (Use D23738)

1шт.

D23738

BLOCK

PISTON - cylinder (When replacing 30631 piston order O3522CK "O" ring)

1шт.

5

O3522CK

X

SEAL- "O" ring, piston rod

1шт.

6

17598

PACKING

- piston

1шт.

7

30630

CARTRIDGE

WASHER - piston packing

1шт.

8

38370

ROD - tie, long

4шт.

9

38369

ROD - tie, short

4шт.

10

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8 - 24NF)

8шт.

11

D21905

TRUNNION - cylinder (Used with 2.875" OD cylinder tube) (See D20528)

1шт.

D20528

TRUNNION - cylinder (Used with 3" OD cylinder tube) (See D21905)

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- trunnion

2шт.

13

D23250

TUBE - cylinder, 2.5" ID x 2.875" OD (See 38372)

1шт.

38372

TUBE - cylinder, 2.5" ID x 3" OD (See D23250)

1шт.

14

30628

CAP - end, cylinder

1шт.

15

17597

PACKING

- rod

1шт.

16

D23933

GLAND

WASHER - packing, piston rod

1шт.

17

D23962

SEAL

- wiper, piston rod

1шт.

18

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

19

D20027

ROD - piston

1шт.

20

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

22

D23739

LOCK NUT

NUT - lock (3/4 - 16NF)

1шт.
