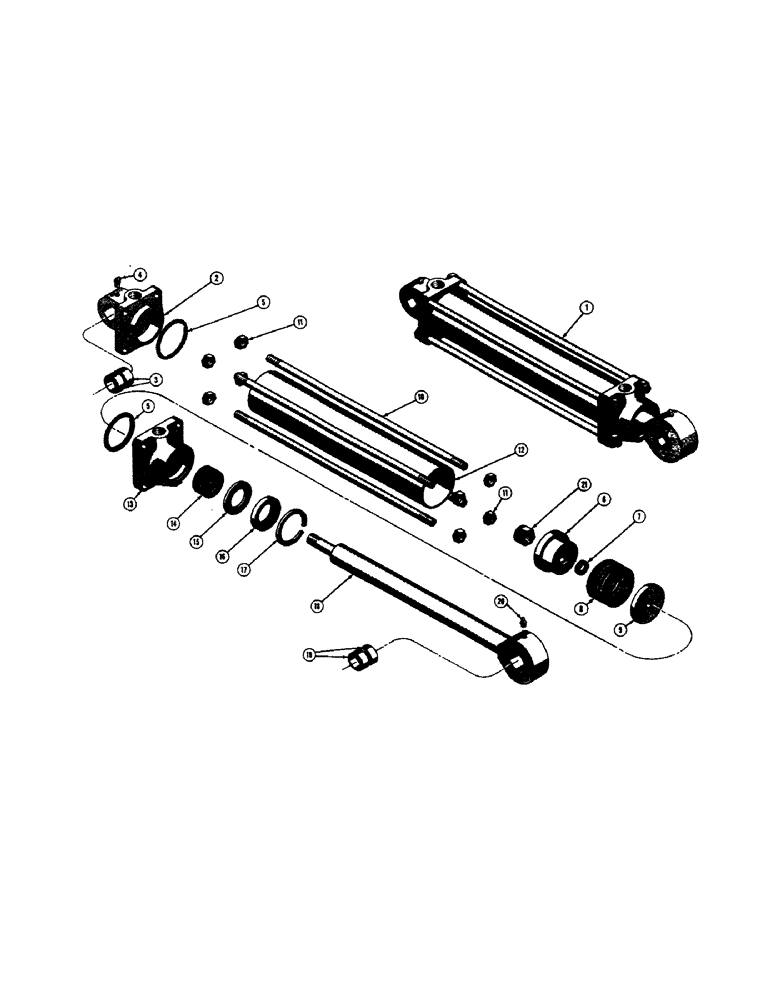

Запчасти Case 520 (180[1]) - BACKHOE HYDRAULIC STABILIZER CYLINDERS (07) - HYDRAULIC SYSTEM

1

38464

SEPARATOR

CYLINDER - stabilizer, hydraulic

2шт.

2

D20055

END - cylinder

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.

4

(NOT USED)

1шт.

5

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

31663

X

PISTON - cylinder (Does not use "O" ring) (Use D23735)

1шт.

6

D23735

PISTON

- cylinder (When replacing 31663 piston order O3522CK "O" ring)

1шт.

7

O3522CK

X

SEAL - "O" ring, piston rod

1шт.

8

31662

PACKING

- piston

1шт.

9

31661

WASHER

- piston packing

1шт.

10

34939

ROD - tie

4шт.

11

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2 - 20NF)

8шт.

12

31750

TUBE - cylinder

1шт.

13

32486

RATCHET

CAP - end, cylinder

1шт.

14

17577

PACKING

- rod

1шт.

15

70740

WASHER

- packing

1шт.

16

17583

WIPER SEAL

- wiper, piston rod

1шт.

17

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

18

D20028

ROD - piston

1шт.

19

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston yoke

2шт.

20

(NOT USED)

1шт.

21

131-152

HARDWARE

NUT - lock (3/4 - 16NF)

1шт.
