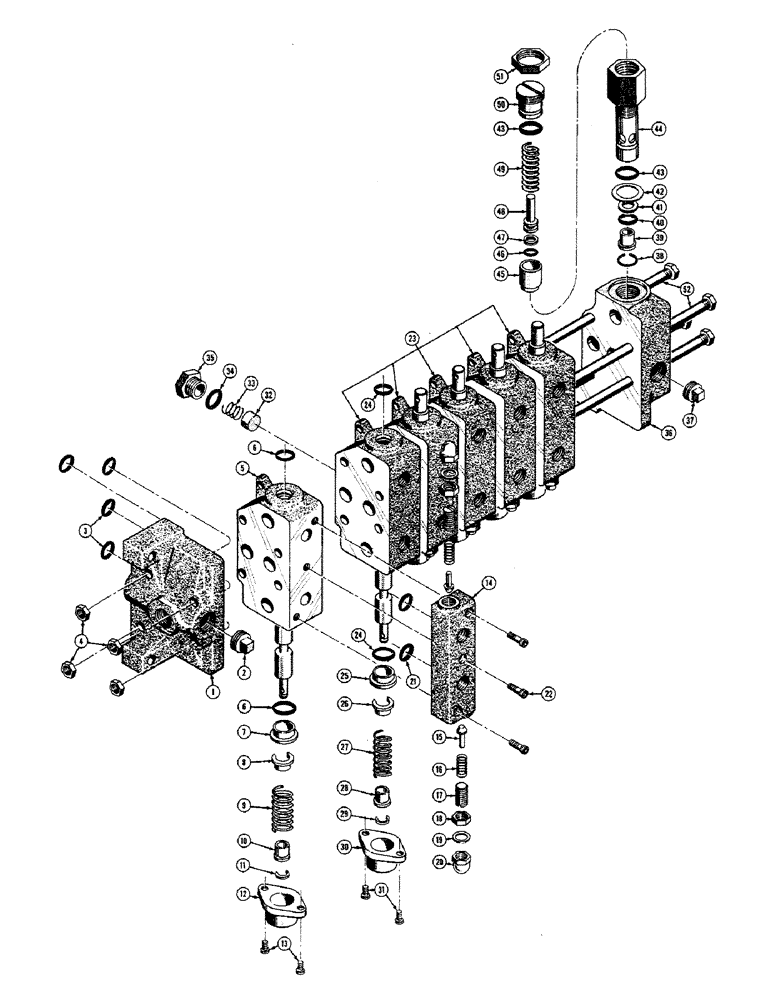

Запчасти Case 520 (176) - D23812 BACKHOE HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

D23812

VALVE

- control, hydraulic (Complete)

1шт.

1

D23824

SECTION - end, control valve

1шт.

2

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, 3/4 NPT ext. sq. hd.

1шт.

3

D21922

O-RING

SEAL - "O" ring

24шт.

4

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - stop (1/2 - 20NF)

4шт.

D23825

SECTION - double acting valve

1шт.

5

D23829

HOUSING AND SPOOL - matched set

1шт.

6

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

2шт.

7

23122

HYDRAULIC HOSE

RETAINER - "O" ring seal

1шт.

8

16205

RETAINER - spring

1шт.

9

23127

SPRING

1шт.

10

23125

HYDRAULIC HOSE

GUIDE - spring

1шт.

11

NLS

NO LONGER SERVICED

- spring guide

1шт.

12

23115

HYDRAULIC HOSE

CAP - valve

1шт.

13

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS - 5/16 - 18NC x 3/4

2шт.

D23827

VALVE UNIT - special relief, complete

1шт.

14

D23831

HOUSING - double relief valve

1шт.

15

16227

HOSE

POPPET - relief valve

2шт.

16

NLS

NO LONGER SERVICED

SPRING - compression

2шт.

17

NLS

NO LONGER SERVICED

SCREW - adjusting

2шт.

18

25-119

NUT,9/16"-18, G5

- hex. (9/16 - 18NF)

2шт.

19

16219

GASKET

4шт.

20

48355

NUT - cap (9/16 - 18NF)

2шт.

21

D21922

O-RING

SEAL - "O" ring

2шт.

22

83-624

SET SCREW,Hex Soc, 3/8"-16 x 1 1/2"

SHCS - 3/8 - 16NC x 1-1/2

3шт.

32

23116

HYDRAULIC HOSE

POPPET - check valve

1шт.

33

23118

HYDRAULIC HOSE

SPRING - poppet

1шт.

34

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring

1шт.

35

23117

HYDRAULIC HOSE

CAP - check valve

1шт.

23

D23826

SECTION - valve, center

5шт.

D23828

HOUSING AND SPOOL - matched set

1шт.

24

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

2шт.

25

23122

HYDRAULIC HOSE

RETAINER - "O" ring

1шт.

26

16205

RETAINER - spring

1шт.

27

23127

SPRING

1шт.

28

23125

HYDRAULIC HOSE

GUIDE - spring

1шт.

29

16413

HOSE

- spring guide

1шт.

30

23115

HYDRAULIC HOSE

CAP - valve

1шт.

31

62-512

HEX SOC SCREW,5/16"-24 x 3/4"

SHCS - 5/16 - 18NC x 3/4

3шт.

32

23116

HYDRAULIC HOSE

POPPET - check valve

1шт.

33

23118

HYDRAULIC HOSE

SPRING - poppet

1шт.

34

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring

1шт.

35

23117

HYDRAULIC HOSE

CAP - check valve

1шт.

D23813

SECTION - end, valve inlet

1шт.

36

D23814

HOUSING - end section

1шт.

37

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, 3/4 NPT ext. sq. hd.

1шт.

D23811

CARTRIDGE - relief valve, complete

1шт.

38

DR15512

X

SNAP RING - poppet retaining

1шт.

39

DR12511

X

POPPET - relief valve

1шт.

40

O8416AB

X

SEAL - "O" ring

1шт.

41

DR12512

X

RING - back up

1шт.

42

23146

WASHER

- fibre, relief valve

1шт.

43

O8377AB

X

SEAL - "O" ring

2шт.

44

DR12505

SHELL - cartridge

1шт.

45

DR12510

X

SEAT - floating

1шт.

46

O9787AB

X

SEAL - "O" ring

1шт.

47

DR12509

X

RING - back up

1шт.

48

DR12508

PLUNGER - displacement

1шт.

49

23136

SPRING

- compression

1шт.

50

DR12506

SCREW - spring adjusting

1шт.

51

DR12507

X

NUT - locking

1шт.

52

38578

SOCKET WRENCH

STUD ASSEMBLY

4шт.
