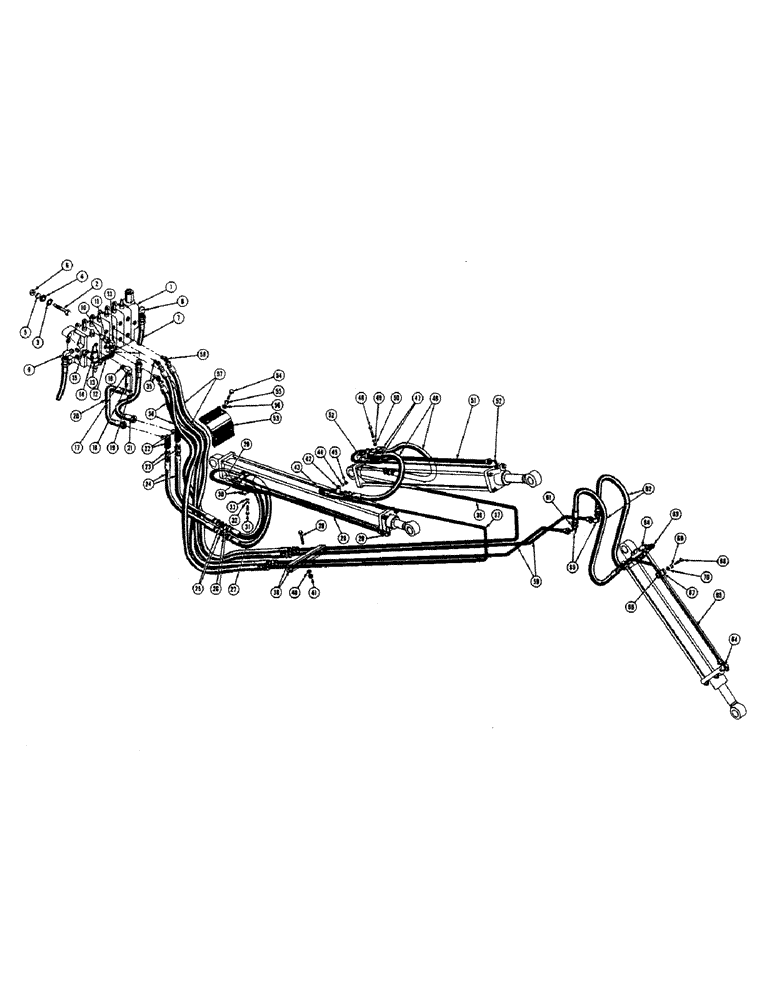

Запчасти Case 520 (168) - BACKHOE VALVE, BOOM, DIPPER ARM, AND DUMP CYLINDER HYDRAULICS, VALVE HYDRAULIC SYSTEM (07) - HYDRAULIC SYSTEM

1

D23812

VALVE

- hydraulic control, backhoe (See figure 176 for breakdown)

1шт.

2

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2 - 20NF x 2-1/2

3шт.

3

33496

BRAKE LINING

SHIM - mounting, valve

1шт.

4

195-33

WASHER,1/2"

- plain (1/2)

3шт.

5

92-8

LOCK WASHER,1/2"

3шт.

6

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20NF)

3шт.

7

D21790

HOSE

- RH side of backhoe valve to pump pressure line

1шт.

8

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

1шт.

9

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 NPT x 3/4 JIC

1шт.

10

D21315

NIPPLE - pipe, 1/2 NPT x 3-1/2

1шт.

11

D23911

FITTING

TEE - female, 1/2 NPT

1шт.

12

D20251

TUBE - pipe tee to relief valve

1шт.

13

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 5/8 JIC

2шт.

14

D24452

VALVE

- relief (See figure 184 for breakdown)

1шт.

15

D21315

NIPPLE - pipe, 1/2 NPT x 3-1/2

1шт.

16

D21316

NIPPLE - pipe, 1/2 NPT x 2, boom cylinder hydraulics

1шт.

17

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degree street, 1/2 NPT, boom cylinder hydraulics

1шт.

18

60374

VALVE

- flow control (See figure 186 for breakdown), boom cylinder hydraulics

1шт.

19

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 5/8 JIC, boom cylinder hydraulics

1шт.

20

D20335

HOSE - flow control valve to LH special male elbow, boom cylinder hydraulics

1шт.

21

36254

LEVER

HOSE - pipe tee to RH special male elbow, boom cylinder hydraulics

1шт.

22

50880

ELBOW - 90 degree special male, boom cylinder hydraulics 1.312, Int, #131

2шт.

23

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex. jam (7/8 - 14NF), boom cylinder hydraulics

2шт.

24

35543

HOSE

- special male elbow to bulkhead union, boom cylinder hydraulics

2шт.

25

D21698

UNION

FITTING - bulkhead union, boom cylinder hydraulics

2шт.

26

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex. jam (7/8 - 14NF), boom cylinder hydraulics

2шт.

27

35209

HOSE ASSY.

HOSE - bulkhead union to boom cylinder, hydraulics

2шт.

28

35206

TUBE - to boom cylinder rear port, hydraulics

1шт.

29

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 5/8 JIC, boom cylinder hydraulics

2шт.

30

31665

COLLAR CLAMP

CLAMP - tube, boom cylinder hydraulics

2шт.

31

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Boom cylinder hydraulics Hex, 5/16"-24 x 1 3/4", G5

1шт.

32

92-5

LOCK WASHER,5/16"

WASHER, LOCK, , boom cylinder hydraulics 5/16"

1шт.

33

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), boom cylinder hydraulics

1шт.

34

D21770

HOSE - valve to tube, dipper cylinder hydraulics

2шт.

35

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

S - 45 degree male, 1/2 NPT x 5/8 JIC, dipper cylinder hydraulics

2шт.

36

D21785

TUBE - valve to dipper cylinder, RH, hydraulics

1шт.

37

D21786

TUBE - valve to dipper cylinder, LH, hydraulics

1шт.

38

35217

CLAMP - tube, dipper cylinder hydraulics

2шт.

39

14-636

SCREW,Hex, 3/8" - 24 x 2 1/4", Gr 5

HHCS - 3/8 - 24NF x 2-1/4, dipper cylinder hydraulics

1шт.

40

92-6

LOCK WASHER,3/8"

WASHER, LOCK, , dipper cylinder hydraulics 3/8"

1шт.

41

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF), dipper cylinder hydraulics

1шт.

42

D20043

CLAMP - tube, dipper cylinder hydraulics

2шт.

43

14-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

Dipper cylinder hydraulics Hex, 1/4"-28 x 1 1/4", G5

2шт.

44

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Dipper cylinder hydraulics 1/4"

2шт.

45

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28NF), dipper cylinder hydraulics

2шт.

46

38410

HOSE

- tube to dipper cylinder, hydraulics

2шт.

47

31665

COLLAR CLAMP

CLAMP - tube, dipper cylinder hydraulics

2шт.

48

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Dipper cylinder hydraulics Hex, 5/16"-24 x 1 3/4", G5

1шт.

49

92-5

LOCK WASHER,5/16"

WASHER, LOCK, , dipper cylinder hydraulics 5/16"

1шт.

50

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), dipper cylinder hydraulics

1шт.

51

35206

TUBE - to dipper cylinder rear port, hydraulics

1шт.

52

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 5/8 JIC, dipper cylinder hydraulics

2шт.

53

35192

BRACKET - hose stabilizer, dipper cylinder hydraulics

1шт.

54

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8 - 24NF x 1-3/4, dipper cylinder hydraulics

4шт.

55

92-6

LOCK WASHER,3/8"

WASHER, LOCK, , dipper cylinder hydraulics 3/8"

4шт.

56

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF), dipper cylinder hydraulics

4шт.

57

D21770

HOSE - valve to tube, dump cylinder hydraulics

2шт.

58

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree male, 1/2 NPT x 5/8 JIC, dump cylinder hydraulics

2шт.

59

D21715

TUBE - to dump cylinder, center section, hydraulics

2шт.

60

D21699

ELBOW - 90 degree male, 7/8 - 14NF x 5/8 JIC, dump cylinder hydraulics

2шт.

61

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex. jam (7/8 - 14NF), dump cylinder hydraulics

2шт.

62

19178

HOSE

- tube to dump cylinder,hydraulics

2шт.

62

19178

HOSE

- tube to dump cylinder, hydraulics

2шт.

63

D20255

TUBE - hose to dump cylinder front port, hydraulics

1шт.

64

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 5/8 JIC, dump cylinder hydraulics

2шт.

65

35027

HYD TUBE

TUBE - hose to dump cylinder rear port, hydraulics

1шт.

66

31665

COLLAR CLAMP

CLAMP - tube, dump cylinder hydraulics

1шт.

67

17179

PLATE - tube clamp, dump cylinder hydraulics

1шт.

68

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Dump cylinder hydraulics Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

69

92-5

LOCK WASHER,5/16"

WASHER, LOCK, , dump cylinder hydraulics 5/16"

1шт.

70

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), dump cylinder hydraulics

1шт.
