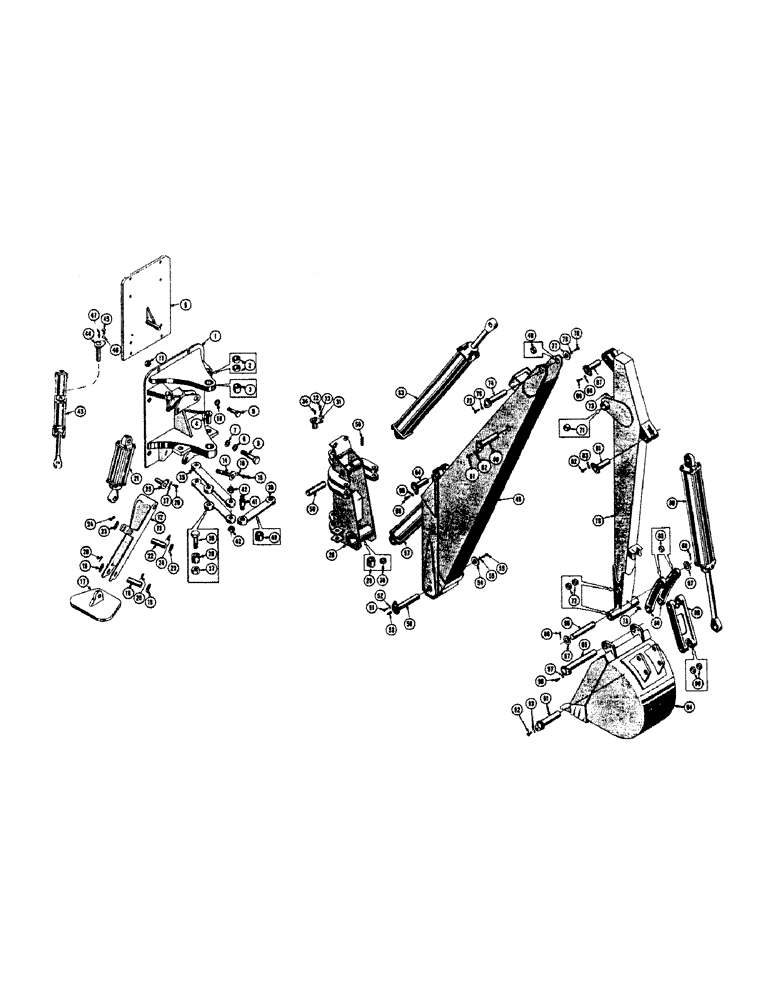

Запчасти Case 520 (160) - BACKHOE MOUNTING PARTS, CYLINDERS, ARMS AND BUCKETS, MOUNTING BRACKET AND STABILIZERS (07) - HYDRAULIC SYSTEM

1

34719

BRACKET - mounting

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

4шт.

3

70466

BUSHING

4шт.

4

35395

PIN - retaining, transport (Includes chain)

1шт.

5

14-1648

BOLT (MACHINE),Hex, 1" - 14 x 3", Gr 5

HHCS - 1 - 14NF x 3, mounting bracket

4шт.

6

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

7

195-33

WASHER,1/2"

- plain (1 - 1/16)

4шт.

8

34788

HOUSING

PLATE - mounting, backhoe control valve

1шт.

9

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20NF x 1-3/4

4шт.

10

92-8

LOCK WASHER,1/2"

4шт.

11

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20NF)

4шт.

12

34709

ARM - stabilizer, RH

1шт.

13

34710

ARM - stabilizer, LH

1шт.

14

34629

PIN - mounting, stabilizer arm

2шт.

15

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20NF x 3/4

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

35731

BUSHING

FOOT - stabilizer

2шт.

18

35037

PIN - mounting, stabilizer

2шт.

19

32625

WASHER - flat (2-1/2" OD x 1-9/32" ID x 11/64" ga.)

4шт.

20

132-152

PIN

- cotter (1/4 x 1-3/4)

4шт.

21

38464

SEPARATOR

CYLINDER - stabilizer, hydraulic (See figure 180 (1) for breakdown)

2шт.

22

35037

PIN - mounting, stabilizer cylinder (Lower)

2шт.

23

32625

WASHER - flat (2-1/2" OD x 1-9/16" ID x 11/64" ga.)

4шт.

24

132-152

PIN

- cotter (1/4 x 1-3/4)

4шт.

25

34961

PIN - mounting, stabilizer cyliner (Upper)

2шт.

26

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20NF x 3/4

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

D23331

tower & swing cylinders & links

1шт.

29

31139

X

BUSHING, tower & swing cylinders & links

2шт.

30

D21282

SPACER - between bushings, tower & swing cylinders & links

1шт.

31

34895

PIN - mounting, tower & swing cylinders & links

2шт.

32

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20NF x 3/4, tower & swing cylinders & links

2шт.

33

92-8

LOCK WASHER,1/2"

tower & swing cylinders & links 1/2"

2шт.

34

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400), Tower & swing cylinders & links 90º, 1/8" NPT x .84" lg

2шт.

35

D20158

LINK - swing, front, tower & swing cylinders

4шт.

36

14-1680

CAPSCREW,Hex, 1" - 14 x 5", Gr 5

HHCS - 1 - 14NF x 5, tower & swing cylinders & links

4шт.

37

131-370

LOCK NUT

NUT - lock (1 - 14NF), tower & swing cylinders & links

4шт.

38

30959

SPACER - bushing, tower & swing cylinders & links

4шт.

39

35030

LINK - swing, tower & swing cylinders

2шт.

40

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

tower & swing cylinders & links

4шт.

41

D21332

BOLT - spacer, tower & swing cylinders & links

4шт.

42

131-370

LOCK NUT

NUT - lock (1 - 14NF), tower & swing cylinders & links

8шт.

43

D23257

CYLINDER - hydraulic, swing (See figure 180 for breakdown), tower & swing cylinders & links

2шт.

44

35031

PIN

- mounting, swing cylinder, tower & links

4шт.

45

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20NF x 3/4, tower & swing cylinders & links

4шт.

46

92-8

LOCK WASHER,1/2"

tower & swing cylinders & links 1/2"

4шт.

47

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 65 degree grease, 1/8 NPT (Lincoln #5300), tower & swing cylinders & links

4шт.

48

34744

BOOM & dipper arm

1шт.

49

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

boom & dipper arm

2шт.

50

35902

SUPPORT

PIN - mounting, boom to tower, dipper arm

1шт.

51

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20NF x 3/4, boom & dipper arm

1шт.

52

92-8

LOCK WASHER,1/2"

boom & dipper arm 1/2"

1шт.

53

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000), boom & dipper arm

1шт.

54

34948

WASHER - boom mounting pin (3" OD x 13/16" ID x 1/2 ga.), dipper arm

1шт.

55

14-1220

HHCS - 3/4 - 16NF x 1-1/4, boom & dipper arm

1шт.

56

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Boom & dipper arm 3/4"

1шт.

57

D23761

CYLINDER - hydraulic, boom (See figure 182 for breakdown), dipper arm

1шт.

58

34949

PIN - mounting, boom cylinder to tower, dipper arm

1шт.

59

49870

BOLT

PIN - driv-lok (3/8 x 2-1/2 - type E), boom & dipper arm

1шт.

60

34897

PIN - mounting, boom cylinder to boom, dipper arm

1шт.

61

14-815

HHCS - 1/2 - 20NF x 3/4, boom & dipper arm

1шт.

62

92-8

LOCK WASHER,1/2"

boom & dipper arm 1/2"

1шт.

63

D23761

CYLINDER - hydraulic, dipper arm (See page 182 for breakdown), boom

1шт.

64

31109

PIN ASSY.

PIN - mounting, dipper arm, Serial Range: cylinder-boom

1шт.

65

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20NF x 3/4, boom & dipper arm

1шт.

66

92-8

LOCK WASHER,1/2"

boom & dipper arm 1/2"

1шт.

67

D20285

PIN - mounting, dipper arm cylinder to dipper arm, boom

1шт.

68

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20NF x 3/4, boom & dipper arm

1шт.

69

92-8

LOCK WASHER,1/2"

boom & dipper arm 1/2"

1шт.

70

34765

SHIM

ARM - dipper, boom

1шт.

71

31148

BUSHING, boom & dipper arm

2шт.

72

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

boom & dipper arm

8шт.

73

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000), boom & dipper arm

2шт.

74

34896

PIN - mounting, dipper, Serial Range: arm-boom

1шт.

75

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20NF x 3/4, boom & dipper arm

1шт.

76

92-8

LOCK WASHER,1/2"

boom & dipper arm 1/2"

1шт.

77

38617

WASHER - dipper arm mounting pin, boom

1шт.

78

14-1220

HHCS - 3/4 - 16NF x 1-1/4, boom & dipper arm

1шт.

79

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Boom & dipper arm 3/4"

1шт.

80

D23774

CYLINDER - hydraulic, bucket (See figure 182 for breakdown), boom & dipper arm

1шт.

81

31109

PIN ASSY.

PIN - mounting, bucket cylinder to dipper arm, boom

1шт.

82

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20NF x 3/4, boom & dipper arm

1шт.

83

92-8

LOCK WASHER,1/2"

boom & dipper arm 1/2"

1шт.

84

34973

LINK - bucket, dipper arm to bucket cylinder, boom

2шт.

85

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

boom & dipper arm

2шт.

86

34999

PIN - mounting, 34973 link to dipper arm (Also 34973 link to bucket cylinder), boom

2шт.

87

32625

WASHER - flat (2-1/2" OD x 1-9/32" ID x 11/64 ga.), boom & dipper arm

4шт.

88

132-152

PIN

- cotter (1/4 x 1-3/4), boom & dipper arm

4шт.

89

34974

LINK - bucket, cylinder to bucket, boom & dipper arm

1шт.

90

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

boom & dipper arm

8шт.

91

35290

PIN

- mounting, 34974 link to bucket, boom & dipper arm

1шт.

92

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20NF x 1, boom & dipper arm

1шт.

93

92-8

LOCK WASHER,1/2"

boom & dipper arm 1/2"

1шт.

94

D20807M

BUCKET - 14" (Machinery item), boom & dipper arm

1шт.

D20808M

BUCKET - 16" (Machinery item), boom & dipper arm

1шт.

37698M

BUCKET - bellhole, 16" (Machinery item), boom & dipper arm

1шт.

D20809M

BUCKET - 19" (Machinery item), boom & dipper arm

1шт.

D20811M

BUCKET - 30" (Machinery item), boom & dipper arm

1шт.

37446M

BUCKET - bellhole, 20" (Machinery item), boom & dipper arm

1шт.

D20461M

BUCKET - bellhole and graveyard, 36" (Machinery item), boom & dipper arm

1шт.

37910M

BUCKET - graveyard, 38" (Machinery item), boom & dipper arm

1шт.

95

35288

PIN - mounting, bucket to dipper arm, boom

1шт.

96

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20NF x 1, boom & dipper arm

1шт.

97

92-8

LOCK WASHER,1/2"

boom & dipper arm 1/2"

1шт.
