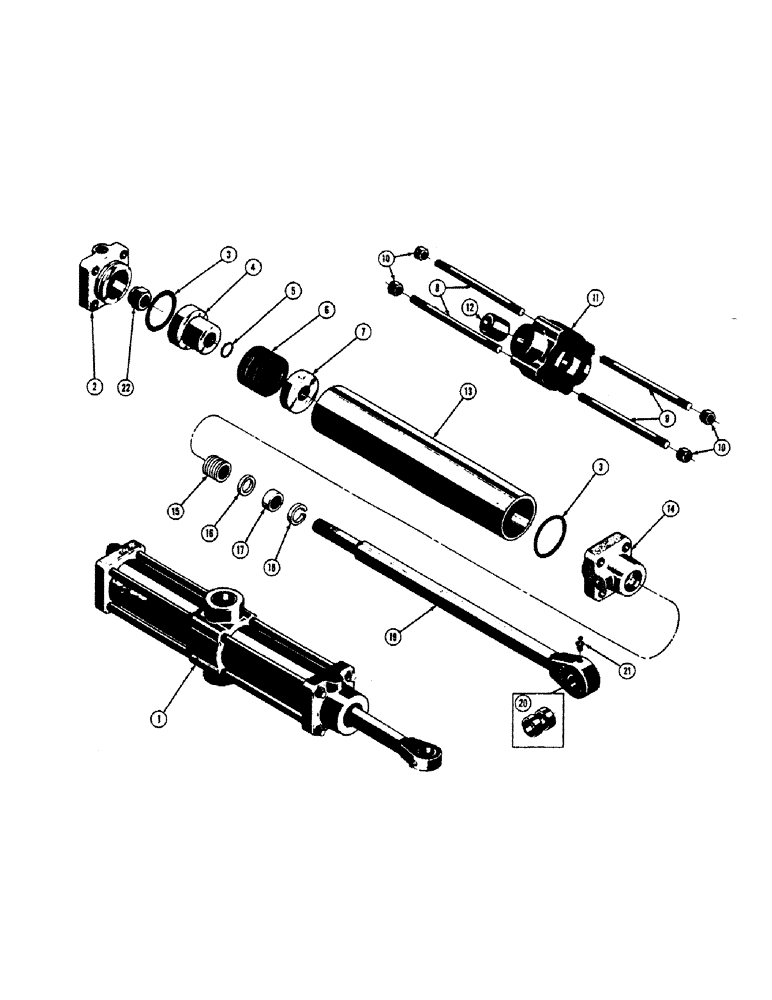

Запчасти Case 520 (158) - D23258 SCARIFIER HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

D23258

CYLINDER - scarifier, hydraulic

1шт.

2

31657

ARTICULATION

END - cylinder

1шт.

3

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

4

31663

X

PISTON - cylinder (Does not use "O" ring) (Use D23735)

1шт.

D23735

PISTON

- cylinder (When replacing 31663 piston order O3522CK "O" ring)

1шт.

5

O3522CK

X

SEAL - "O" ring, piston rod

1шт.

6

31662

PACKING

- piston

1шт.

7

31661

WASHER

- piston packing

1шт.

8

37392

ROD - tie, long

4шт.

9

37393

TAPE

ROD - tie, short

4шт.

10

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8 - 16NC)

8шт.

11

D23302

TRUNNION - cylinder (Used with 3.375 OD cylinder tube) (See 36947)

1шт.

36947

ROD

TRUNNION - cylinder (Used with 3.5 OD cylinder tube) (See D23302)

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

13

D23251

TUBE - cylinder, 3" ID x 3.375 OD (See 37396)

1шт.

37396

TAPE,3.5" OD, 13.333" Length

TUBE - cylinder, 3" ID x 3.5 OD (See D23251)

1шт.

14

36999

CAP COVER

CAP - end, cylinder

1шт.

15

17597

PACKING

- rod

1шт.

16

D23933

GLAND

WASHER - packing, piston rod

1шт.

17

D23962

SEAL

- wiper, piston rod

1шт.

18

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

19

D20021

ROD - piston

1шт.

20

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

22

D23739

LOCK NUT

NUT - lock (3/4 - 16NF)

1шт.
