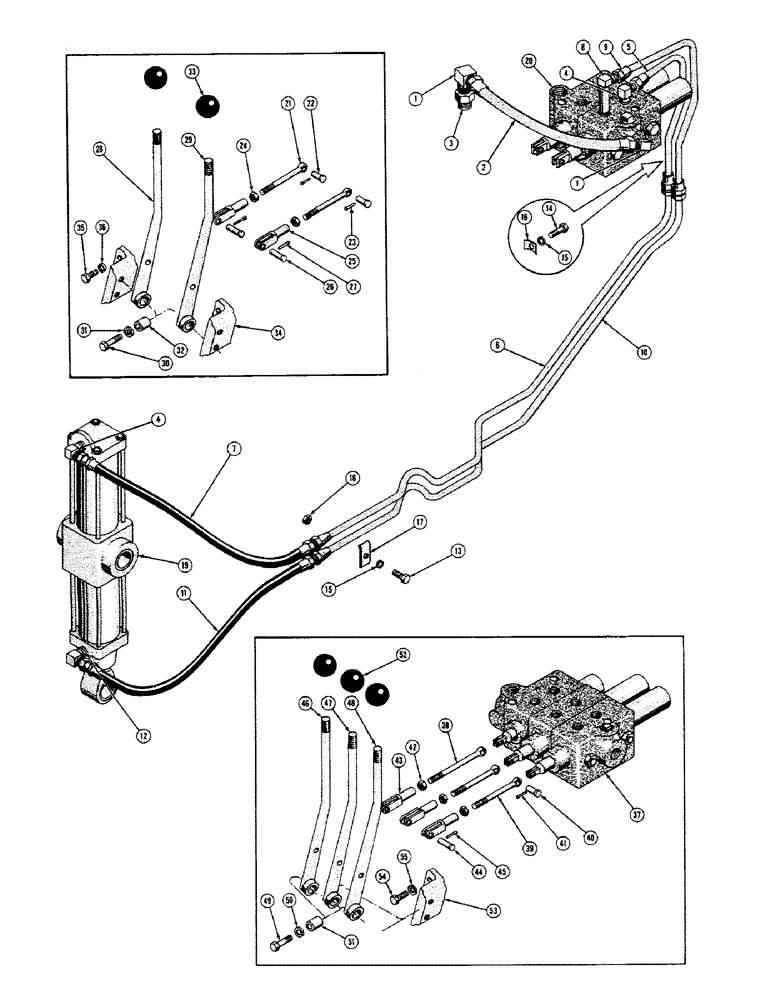

Запчасти Case 520 (154) - SCARIFIER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 NPT x 3/4 JIC

2шт.

2

38396

TUBE -, Serial Range: valve-tank

1шт.

3

221-69

BUSHING

- 1-1/4 NPT x 3/4 NPT

1шт.

4

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/4 NPT x 5/8 JIC

2шт.

5

38402

TUBE - front valve port to upper cylinder port, front section

1шт.

6

38404

TUBE - front valve port to upper cylinder port, center section

1шт.

7

38408

ROLLER

HOSE - front valve port to upper cylinder port, rear section

1шт.

8

218-498

ELBOW - 90 degree male, extra long (1/2 NPT x 5/8 JIC) 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

9

38400

TUBE - rear valve port to lower cylinder port, front section

1шт.

10

38406

TUBE - rear valve port to lower cylinder port, center section

1шт.

11

38410

HOSE

- rear valve port to lower cylinder port, rear section

1шт.

12

D20168

ELBOW - special restrictor

1шт.

13

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24NF x 1-1/2

1шт.

14

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

1шт.

15

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

38331

PLATE

- clamp

1шт.

17

32978

PLATE ASSY.

PLATE - clamp

1шт.

18

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

1шт.

19

D23258

CYLINDER - hydraulic, scarifier (See figure 158 for breakdown)

1шт.

20

39069

VALVE - control, hydraulic (See figure 106 for breakdown), levers for scarifier w/ mechanical dozer

1шт.

21

32361

SNAP RING

LINK - valve control, levers for scarifier w/ mechanical dozer

2шт.

22

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (1/4), valve & levers for scarifier w/ mechanical dozer

2шт.

23

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), , Valve & levers for scarifier w/ mechanical dozer 1/16" x 3/4"

2шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF), valve & levers for scarifier w/ mechanical dozer

2шт.

25

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - end, valve & levers for scarifier w/ mechanical dozer

2шт.

26

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Valve & levers for scarifier w/ mechanical dozer 3/8" x 1.060"

2шт.

27

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", valve & levers for scarifier w/ mechanical dozer

2шт.

28

38864

LEVER - valve control, LH, for scarifier w/ mechanical dozer

1шт.

29

38866

LEVER - valve control, RH, for scarifier w/ mechanical dozer

1шт.

30

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20NF x 1-3/4, valve & levers for scarifier w/ mechanical dozer

2шт.

31

195-33

WASHER,1/2"

- plain (1/2), valve & levers for scarifier w/ mechanical dozer

2шт.

32

NLS

NO LONGER SERVICED

BUSHING, valve & levers for scarifier w/ mechanical dozer

2шт.

33

CAS31375

KNOB

BALL - control lever, valve & levers for scarifier w/ mechanical dozer

2шт.

34

32322

BRACKET - mounting, control levers, valve for scarifier w/ mechanical dozer

2шт.

35

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Valve & levers for scarifier w/ mechanical dozer Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

36

92-6

LOCK WASHER,3/8"

WASHER, LOCK, , valve & levers for scarifier w/ mechanical dozer 3/8"

4шт.

37

38876

VALVE - control, hydraulic (See figure 102 for breakdown), valve & levers for scarifier w/ hydraulic dozer or loader

1шт.

38

35620

SHIM

LINK - valve control (Long), levers for scarifier w/ hydraulic dozer or loader

1шт.

39

32361

SNAP RING

LINK - valve control (Short), levers for scarifier w/ hydraulic dozer or loader

2шт.

40

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (1/4), valve & levers for scarifier w/ hydraulic dozer or loader

3шт.

41

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), , Valve & levers for scarifier w/ hydraulic dozer or loader 1/16" x 3/4"

3шт.

42

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF), valve & levers for scarifier w/ hydraulic dozer or loader

3шт.

43

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - end, valve & levers for scarifier w/ hydraulic dozer or loader

3шт.

44

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Valve & levers for scarifier w/ hydraulic dozer or loader 3/8" x 1.060"

3шт.

45

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", valve & levers for scarifier w/ hydraulic dozer or loader

3шт.

46

38864

LEVER - valve control, LH, for scarifier w/ hydraulic dozer or loader

1шт.

47

38865

LEVER - valve control, center, for scarifier w/ hydraulic dozer or loader

1шт.

48

38866

LEVER - valve control, RH, for scarifier w/ hydraulic dozer or loader

1шт.

49

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20NF x 1-3/4, valve & levers for scarifier w/ hydraulic dozer or loader

3шт.

50

195-33

WASHER,1/2"

- plain (1/2), valve & levers for scarifier w/ hydraulic dozer or loader

3шт.

51

NLS

NO LONGER SERVICED

BUSHING, valve & levers for scarifier w/ hydraulic dozer or loader

3шт.

52

CAS31375

KNOB

BALL - control lever, valve for scarifier w/ hydraulic dozer or loader

3шт.

53

32322

BRACKET - mounting, control levers, valve for scarifier w/ hydraulic dozer or loader

2шт.

54

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Valve & levers for scarifier w/ hydraulic dozer or loader Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

55

92-6

LOCK WASHER,3/8"

WASHER, LOCK, , valve & levers for scarifier w/ hydraulic dozer or loader 3/8"

4шт.
