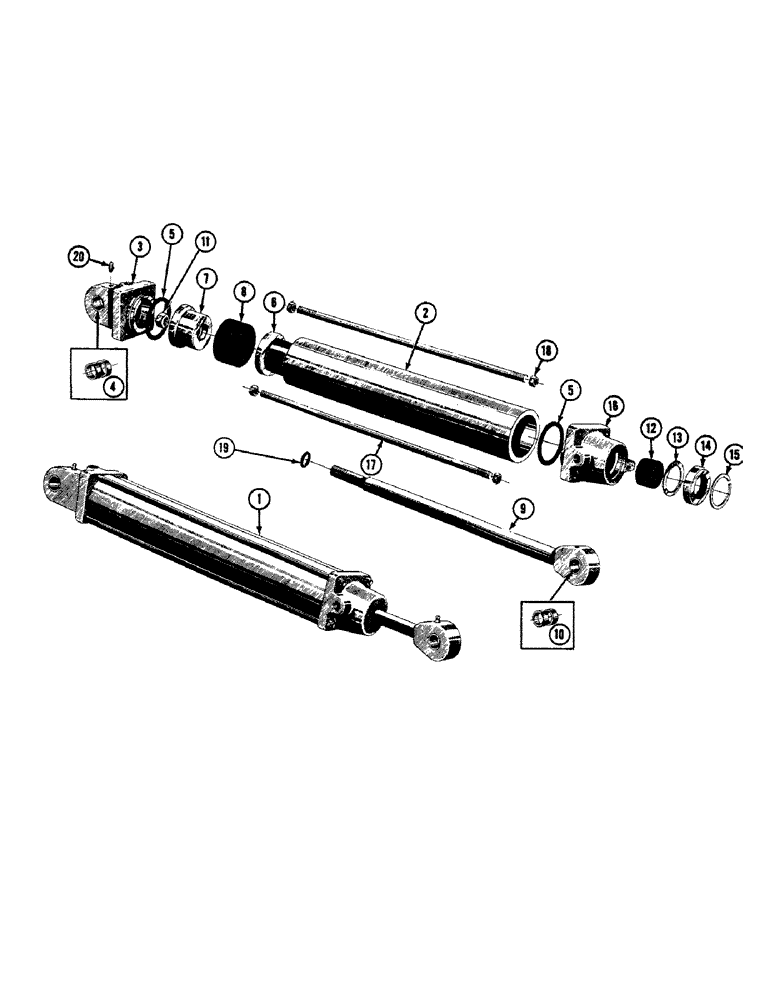

Запчасти Case 520 (138) - 37887 HYDRAULIC TILT CYLINDER (07) - HYDRAULIC SYSTEM

1

37887

CYLINDER - hydraulic, crown tilting

1шт.

2

37976

TUBE - cylinder

1шт.

3

D20038

END - cylinder

1шт.

4

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

5

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring

2шт.

6

38165

SPACER - retainer

1шт.

7

30631

X

PISTON - cylinder (Does not use "O" ring) (Use D23738)

1шт.

D23738

BLOCK

PISTON - cylinder (When replacing 30361 piston order O3522CK "O" ring)

1шт.

8

17598

PACKING

- piston

1шт.

9

D20029

ROD - piston

1шт.

10

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

11

D23739

LOCK NUT

NUT - lock (3/4 - 16NF)

1шт.

12

17597

PACKING

- piston rod

1шт.

13

36259

WASHER

- packing, piston rod

1шт.

14

17603

WIPER SEAL

- wiper, piston rod

1шт.

15

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

16

30628

CAP - end, cylinder

1шт.

17

38000

O-RING

ROD - tie

4шт.

18

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (1/2 - 20NF)

8шт.

19

O3522CK

X

SEAL - "O" ring

1шт.

D24985

RING

- leather backup (Not shown)

2шт.

20

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 67-1/2 degree grease, 1/8 NPT (Lincoln #5300)

1шт.
