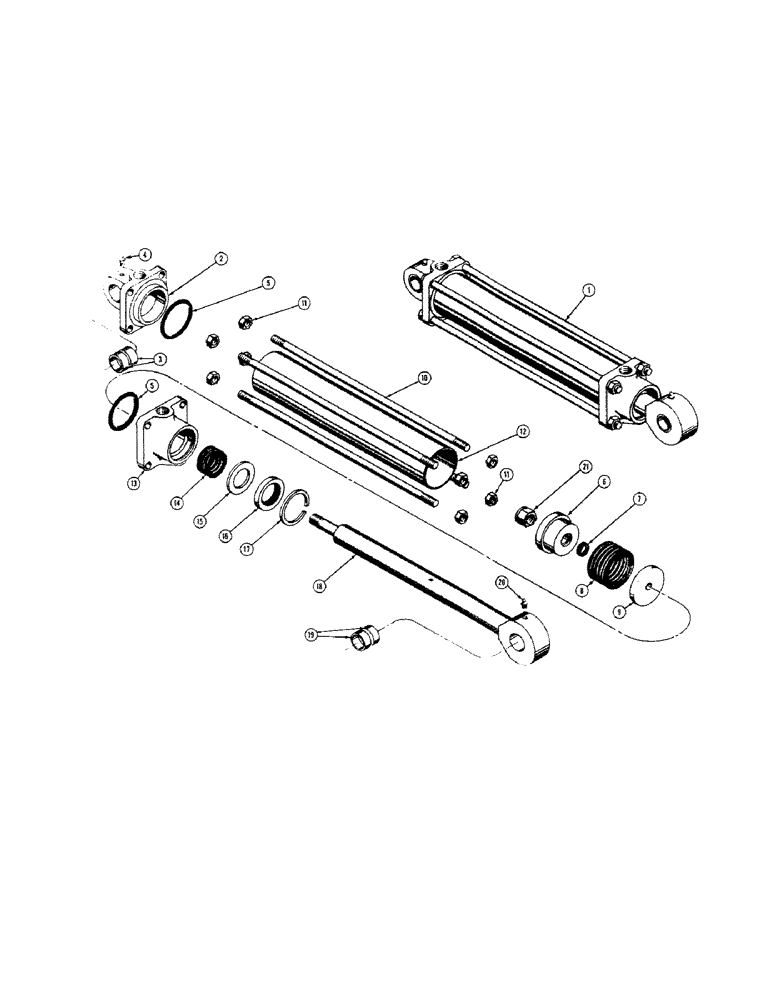

Запчасти Case 520 (138[1]) - 37932 HYDRAULIC DOZER ANGLING CYLINDER (07) - HYDRAULIC SYSTEM

1

37932

CYLINER - hydraulic

2шт.

2

D20054

END - cylinder

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

5

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O" ring

2шт.

6

30571

PISTON - cylinder (Does not use "O" ring) (Use D23736)

1шт.

D23736

PISTON - cylinder (When replacing 30571 piston order A7623 "O" ring)

1шт.

7

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring, piston rod

1шт.

8

17578

PACKING

- piston

1шт.

9

NLS

NO LONGER SERVICED

WASHER - piston packing

1шт.

10

37928

ROD - tie

4шт.

11

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2 - 20NF)

8шт.

12

37931

TUBE - cylinder

1шт.

13

30567

FLANGE

CAP - end, cylinder

1шт.

14

30568

PACKING

- rod

1шт.

15

70741

X

WASHER - packing, piston rod

1шт.

16

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

17

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

18

D20023

ROD - piston

1шт.

19

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

21

D23688

X

NUT - lock (1 - 14NF)

1шт.

D24987

RING

WASHER - leather backup (Not shown)

2шт.
