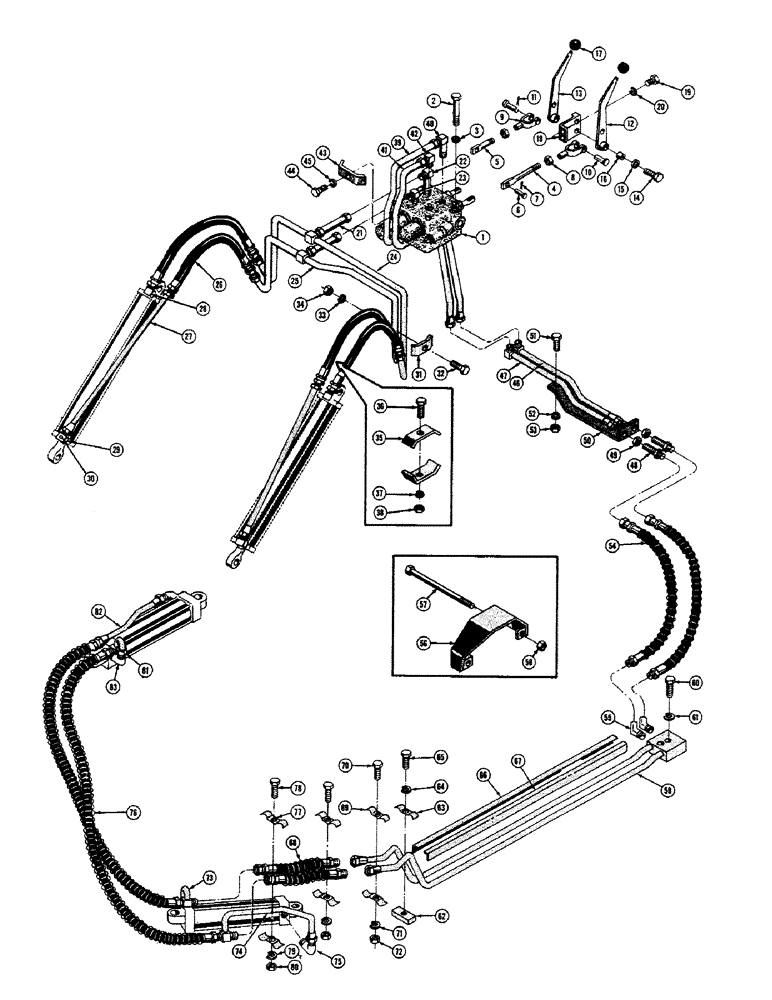

Запчасти Case 520 (134) - HYDRAULIC ANGLING DOZER HYDRAULICS, VALVE AND LEVERS (07) - HYDRAULIC SYSTEM

1

16400

VALVE - control, hydraulic (See figure 102 for breakdown)

1шт.

2

14-864

CAPSCREW,Hex, 1/2" - 20 x 4", Gr 5

HHCS - 1/2 - 20NF x 4

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

35620

SHIM

LINK - valve control (Long)

1шт.

5

32361

SNAP RING

LINK - valve control (Short)

1шт.

6

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (1/4)

2шт.

7

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

8

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

2шт.

9

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - end

2шт.

10

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

11

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

12

38864

LEVER - control valve, LH

1шт.

13

38865

LEVER - control valve, RH

1шт.

14

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20NF x 1-3/4

2шт.

15

195-33

WASHER,1/2"

- plain (1/2)

2шт.

16

32362

WASHER

2шт.

17

CAS31375

KNOB

BALL - control valve lever

2шт.

18

32322

BRACKET - mounting, valve lever

1шт.

19

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

38844

TUBE - right rear valve port to rear manifold tube, also right front valve port to front manifold tube, lift cylinder hydraulics .625" OD, 3.75" Length

2шт.

22

218-498

ELBOW - 90 degree male, extra long, 1/2 NPT x 5/8 JIC, lift cylinder hydraulics 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

23

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 5/8 JIC, lift cylinder hydraulics

1шт.

24

39064

TUBE - manifold, rear, lift cylinder hydraulics

1шт.

25

39061

TUBE - manifold, front, lift cylinder hydraulics

1шт.

26

19209

HOSE ASSY.

HOSE - manifold, tube to lift cylinder, hydraulics

4шт.

27

38849

BOLT,Hex, M6 x 80mm, Cl 8.8

TUBE - front manifold tube to lift cylinder (Front section), hydraulics

2шт.

28

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 5/8 JIC, lift cylinder hydraulics

3шт.

29

33888

TEE - special, 1/8 NPT x 1/2 NPT x 5/8 JIC, lift cylinder hydraulics

1шт.

30

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, ext. sq. hd., 1/8 NPT, lift cylinder hydraulics

1шт.

31

38331

PLATE

- tube clamp, lift cylinder hydraulics

2шт.

32

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24NF x 1-1/2, lift cylinder hydraulics

2шт.

33

92-5

LOCK WASHER,5/16"

WASHER, LOCK, , lift cylinder hydraulics 5/16"

2шт.

34

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), lift cylinder hydraulics

2шт.

35

31665

COLLAR CLAMP

PLATE - tube clamp, lift cylinder hydraulics

4шт.

36

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

HHCS - 1/2 - 20NF x 1-3/4, lift cylinder hydraulics

2шт.

37

92-5

LOCK WASHER,5/16"

WASHER, LOCK, , lift cylinder hydraulics 5/16"

2шт.

38

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), lift cylinder hydraulics

2шт.

39

38297

ELEMENT

TUBE - to left rear valve port, angling cylinder hydraulics

1шт.

40

218-497

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, extra long, 1/2 NPT x 1/2 JIC, angling cylinder hydraulics

1шт.

41

38299

TUBE - to left front valve port, angling cylinder hydraulics

1шт.

42

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree amle, 1/2 NPT x 1/2 JIC, angling cylinder hydraulics

1шт.

43

38331

PLATE

- tube clamp, angling cylinder hydraulics

1шт.

44

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16 - 24NF x 1, angling cylinder hydraulics

1шт.

45

92-5

LOCK WASHER,5/16"

WASHER, LOCK, , angling cylinder hydraulics 5/16"

1шт.

46

38310

TUBE - bulkhead union to tube, rear, angling cylinder hydraulics

1шт.

47

38312

PUMP, FUEL INJECTION

TUBE - bulkhead union to tube, front, angling cylinder hydraulics

1шт.

48

50883

UNION - special bulkhead, angling cylinder hydraulics

2шт.

49

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16NF), angling cylinder hydraulics

2шт.

50

39046

GUARD - tubing, angling cylinder hydraulics

1шт.

51

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Angling cylinder hydraulics Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

52

92-8

LOCK WASHER,1/2"

angling cylinder hydraulics 1/2"

1шт.

53

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13NC), angling cylinder hydraulics

1шт.

54

D20176

HOSE - bulkhead union to junction block, angling cylinder hydraulics

2шт.

55

D23906

ELBOW

- 45 degree street, 3/8 NPT, angling cylinder hydraulics

2шт.

56

D20141

GUARD - hose, angling cylinder hydraulics

2шт.

57

D23206

HHCS - 3/4 - 16NF x 12-1/2, angling cylinder hydraulics

2шт.

58

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock (3/4 - 16NF), angling cylinder hydraulics

2шт.

59

39612

X

JUNCTION BLOCK AND TUBE ASB'Y., angling cylinder hydraulics

1шт.

60

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20NF x 1-3/4, angling cylinder hydraulics

2шт.

61

92-8

LOCK WASHER,1/2"

angling cylinder hydraulics 1/2"

2шт.

62

39607

SPACER - tube clamp, angling cylinder hydraulics

1шт.

63

D20369

CLAMP

PLATE - tube clamp, angling cylinder hydraulics

1шт.

64

92-8

LOCK WASHER,1/2"

angling cylinder hydraulics 1/2"

1шт.

65

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2 - 20NF x 2-1/4, angling cylinder hydraulics

1шт.

66

39610

GUARD - tubing, inside (Track welded over inside tube of junction block and tube), angling cylinder hydraulics

2шт.

67

39611

FINGER

GUARD - tubing, outside (Track welded over outside tube of junction block and tube), angling cylinder hydraulics

2шт.

68

38614

CLIP

HOSE - junction block and tube to LH angling cylinder, hydraulics

2шт.

69

31665

COLLAR CLAMP

PLATE - tube clamp, angling cylinder hydraulics

2шт.

70

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Angling cylinder hydraulics Hex, 5/16"-24 x 1 3/4", G5

1шт.

71

92-5

LOCK WASHER,5/16"

WASHER, LOCK, , angling cylinder hydraulics 5/16"

1шт.

72

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), angling cylinder hydraulics

1шт.

73

38326

BUSHING,1.875, 1.125" Length

TUBE - to LH angling cylinder front port, hydraulics

1шт.

74

38324

TUBE - to LH angling cylinder rear port, hydraulics

1шт.

75

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 1/2 JIC, angling cylinder hydraulics

2шт.

76

39637

LINE

HOSE - LH angling cylinder to RH angling cylinder, hydraulics

2шт.

77

31665

COLLAR CLAMP

PLATE - tube clamp, angling cylinder hydraulics

4шт.

78

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Angling cylinder hydraulics Hex, 5/16"-24 x 1 3/4", G5

2шт.

79

92-5

LOCK WASHER,5/16"

WASHER, LOCK, , angling cylinder hydraulics 5/16"

2шт.

80

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), angling cylinder hydraulics

2шт.

81

38328

TUBE - to RH angling cylinder front port, hydraulics

1шт.

82

38322

TUBE - to RH angling cylinder rear port, hydraulics

1шт.

83

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 1/2 JIC, angling cylinder hydraulics

2шт.
