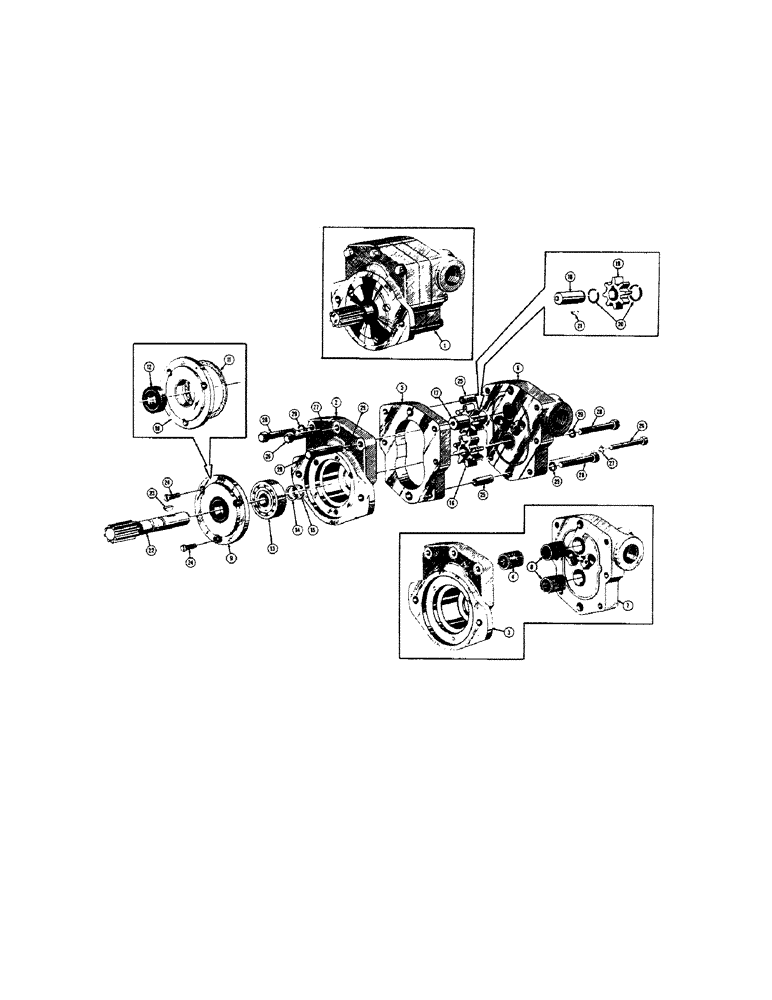

Запчасти Case 520 (112) - 31615 HYDRAULIC PUMP, 15 G.P.M. (07) - HYDRAULIC SYSTEM

1

31615

CAP

PUMP ASB'Y. - hydraulic (Webster No. 3HCS-4L) (15 G.P.M.)

1шт.

2

35694

BOLT

BODY ASB'Y. - pump

1шт.

3

NSS

NOT SOLD SEPARAT

BODY- pump

1шт.

4

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

1шт.

5

34452

PLATE - gear

1шт.

6

14205

SCREWDRIVER

COVER ASB'Y. - pump

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

8

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

2шт.

9

35737

LEVER

PLATE ASB'Y. - pilot

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE - pilot

1шт.

11

14221

GASKET

- pilot plate

1шт.

12

34449

OIL SEAL

SEAL - oil

1шт.

13

MT2041S

BEARING

- ball

1шт.

14

O6044AB

X

RING - retaining

1шт.

15

O6044AB

X

RING - retaining

1шт.

16

14257

GEAR-SET

GEAR - drive

1шт.

17

GEAR AND SHAFT ASB'Y. - idler (Order individual parts)

1шт.

18

34451

SHAFT - idler

1шт.

19

34453

HEATER PLUG

GEAR - idler

1шт.

20

14217

RING

- retaining

2шт.

21

34455

HOOK

KEY - Woodruff

1шт.

22

34445

SHIELD

- pump drive

1шт.

23

126-114

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

24

34447

X

SCREW - flathead machine

3шт.

25

NLS

NO LONGER SERVICED

PIN - dowel

2шт.

26

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

28

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

6шт.

29

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.
