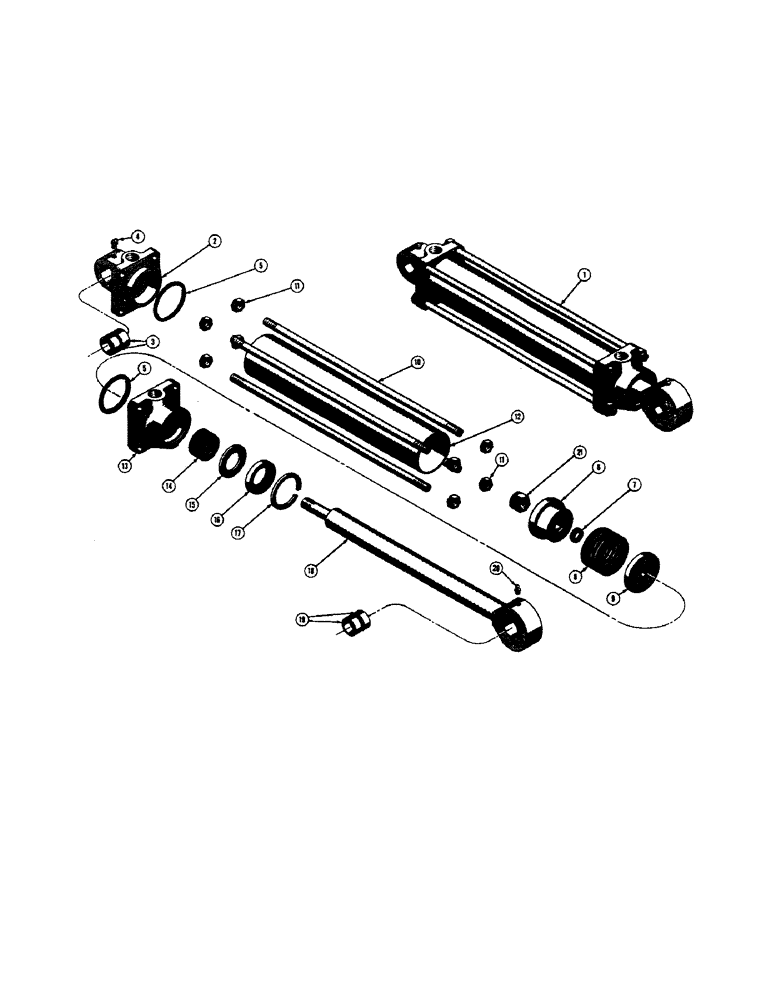

Запчасти Case 520 (112[1]) - 31608 AND 31609 TERRALOADR HYDRAULIC LIFT CYLINDERS (07) - HYDRAULIC SYSTEM

1

31608

CYLINDER - loader lift, hydraulic (RH)

1шт.

31609

CYLINDER - loader lift, hydraulic (LH)

1шт.

2

D20054

END - cylinder

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

2шт.

5

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O" ring

2шт.

6

30571

PISTON - cylinder (Does not use "O" ring) (Use D23736)

1шт.

D23736

PISTON - cylinder (When replacing 30571 piston order A7623 "O" ring)

1шт.

7

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring, piston rod

1шт.

8

17578

PACKING

- piston

1шт.

9

NLS

NO LONGER SERVICED

WASHER - retainer

1шт.

10

30569

ROD

- tie

4шт.

11

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2 - 20NF)

8шт.

12

30570

DRAWBAR

TUBE - cylinder

1шт.

13

30567

FLANGE

CAP - end, cylinder

1шт.

14

30568

PACKING

- piston rod

1шт.

15

70741

X

WASHER - packing, piston rod

1шт.

16

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

17

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

18

D20031

ROD - piston

1шт.

19

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

21

D23688

X

NUT - lock (1 - 14NF)

1шт.
