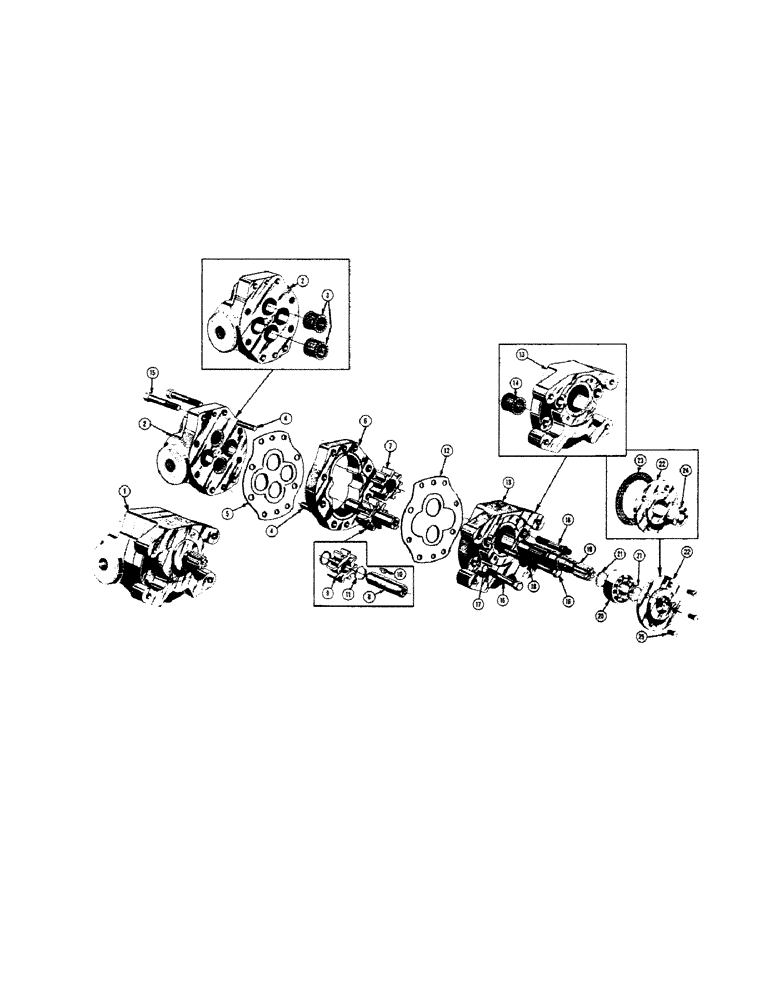

Запчасти Case 520 (110) - D21319 HYDRAULIC PUMP, 19 G.P.M., CODE NUMBER D9 AND EARLIER (07) - HYDRAULIC SYSTEM

1

D21319

PUMP - hydraulic (Webster #2XESI-L, 19 G.P.M)

1шт.

2

D21333

COVER - pump

1шт.

3

F51079

NEEDLE BEARING

BEARING - needle

2шт.

4

D21334

PIN - dowel, gear plate and cover

2шт.

5

D21465

PLATE - wear, pump cover and gear plate

1шт.

6

34534

CAM

PLATE - gear

1шт.

7

D21343

GEAR - drive

1шт.

8

34625

GUARD

SHAFT - idler gear

1шт.

9

D21339

GEAR

- idler

1шт.

10

48777

X

KEY - Woodruff, idler gear

1шт.

11

38384

SNAP RING - idler gear

2шт.

12

D21466

PLATE - wear, pump body and gear plate

1шт.

13

D21336

X

BODY - pump, complete

1шт.

14

F51079

NEEDLE BEARING

BEARING - needle

1шт.

15

13-842

HHCS - 1/2 - 13NC x 2-5/8

4шт.

16

13-846

HHCS - 1/2 - 13NC x 2-7/8

2шт.

17

D23924

WASHER - lock

6шт.

18

D21340

X

SCREW - body (1/2 - 13NC x 3 counter bore head)

2шт.

19

D21337

SHAFT - pump drive

1шт.

20

40200

BEARING ASSY,1.1811" ID x 2.4409" OD x 0.9375"

- ball, drive shaft

1шт.

21

34488

RING, SNAP

SNAP RING - bearing retaining

2шт.

22

D21338

PLATE

- pilot, complete

1шт.

23

34490

SPRING

GASKET - pilot plate

1шт.

24

D23754

X

SEAL - oil, (Double lip), pilot plate

1шт.

25

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

FHMS - 1/4 - 20NC x 1/2

4шт.
