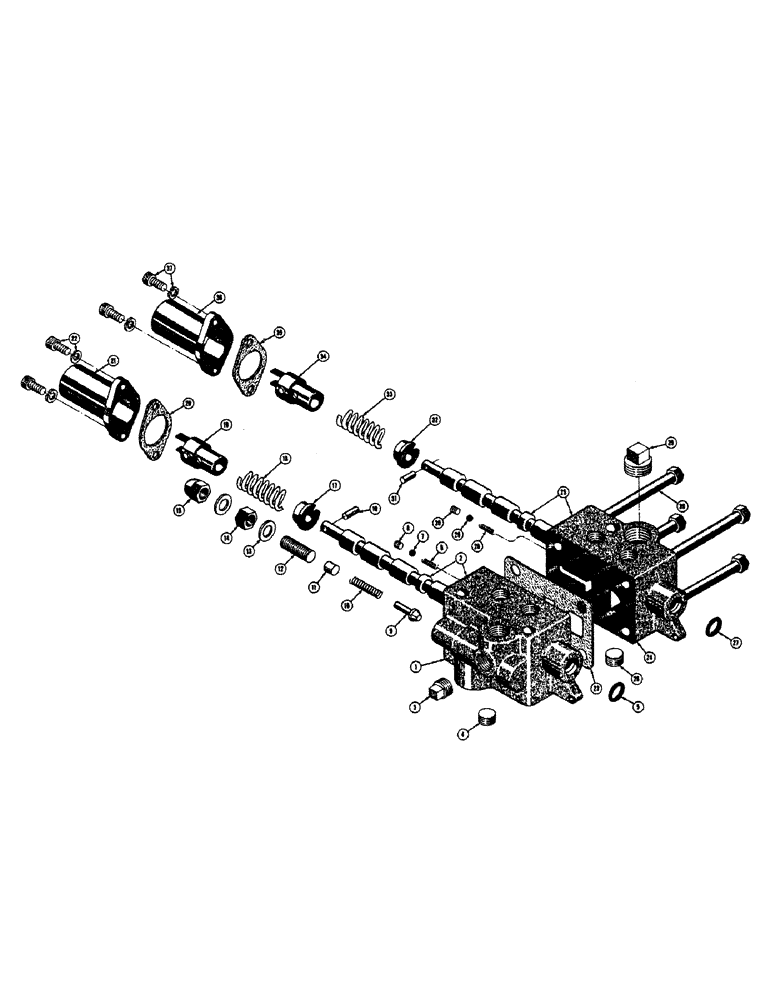

Запчасти Case 520 (106) - 39069 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
39069
VALVE - hydraulic control
1шт.
1
17368
CLEVIS COUPLING
SECTION - valve inlet, complete
1шт.
2
5460
TIP
HOUSING AND SPOOL - matched set
1шт.
3
221-14
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG - pipe, 1/2 NPT ext. sq. hd.
1шт.
4
221-664
PLUG,Hex Hd, 1/2"-14
- pipe, 1/2 NPT socket hd.
1шт.
5
16202
O-RING,40544" ID x 13" OD x 1"
SEAL - "O" ring, valve spool
1шт.
6
16212
HOSE
SPRING - check valve
1шт.
7
VT4852
X
BALL - check valve (5/32 dia.)
1шт.
8
16214
HOSE
SEAT - check valve
1шт.
9
16227
HOSE
POPPET - relief valve
1шт.
10
16404
SPRING CUP
SPRING - compression, relief valve
1шт.
11
16217
BUSHING
PLUG - relief valve
1шт.
12
NLS
NO LONGER SERVICED
SCREW - relief valve adjusting
1шт.
13
16219
GASKET
- relief valve
2шт.
14
25-119
NUT,9/16"-18, G5
- hex. (9/16 - 20NF)
1шт.
15
48355
NUT - cap (9/16 - 20NF)
1шт.
16
16207
TUBE
ROD - (1/4 x 21/32)
1шт.
18
16204
VALVE
SPRING - spool return
1шт.
19
16206
GUIDE - spring
1шт.
20
16211
HOSE
GASKET - valve cap
1шт.
22
71-512
SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"
AND LOCKWASHER - fil. hd. (5/16 - 18NC x 3/4)
2шт.
24
16402
CYLINDER
SECTION - valve outlet, complete
1шт.
25
5458
HOUSING AND SPOOL - matched set
1шт.
26
221-664
PLUG,Hex Hd, 1/2"-14
- pipe, 1/2 NPT socket hd.
1шт.
27
16202
O-RING,40544" ID x 13" OD x 1"
SEAL - "O" ring, valve spool
1шт.
28
16212
HOSE
SPRING - check valve
1шт.
29
VT4852
X
BALL - check valve (5/32 dia.)
1шт.
30
16214
HOSE
SEAT - check valve
1шт.
31
16207
TUBE
ROD - (1/2 x 21/32)
1шт.
33
16204
VALVE
SPRING - spool return
1шт.
34
16206
GUIDE - spring
1шт.
35
16211
HOSE
GASKET - valve cap
1шт.
37
61-512
HEX SOC SCREW,5/16"-18 x 3/4"
SHCS - 5/16 - 18NC x 3/4
2шт.
38
13-852
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5
4шт.
39
221-15
PLUG,Sq Hd, 3/4"-14
- pipe, 3/4 NPT ext. sq. hd.
1шт.
Выбрано товаров: 40
