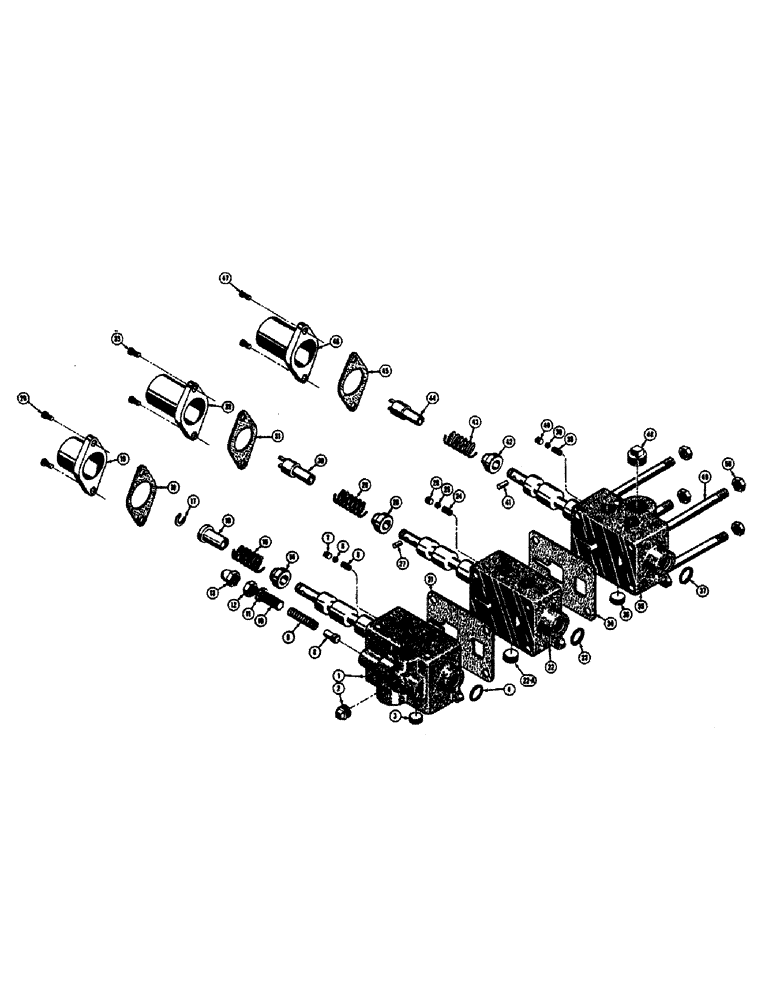

Запчасти Case 520 (102) - 16400 AND 38876 HYDRAULIC CONTROL VALVES (07) - HYDRAULIC SYSTEM

16401

SECTION - valve inlet

1шт.

See Figure Note.

1шт.

1

NLS

NO LONGER SERVICED

HOUSING AND SPOOL - matched set (5457)

1шт.

2

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2 NPT ext. sq. hd.

1шт.

3

221-664

PLUG,Hex Hd, 1/2"-14

- pipe, 1/2 NPT socket hd.

1шт.

4

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring, valve spool

1шт.

5

16212

HOSE

SPRING - check valve

1шт.

6

VT4852

X

BALL - check valve, 5/32 dia.

1шт.

7

16214

HOSE

SEAT - check valve

1шт.

8

16227

HOSE

POPPET - relief valve

1шт.

9

16404

SPRING CUP

SPRING - relief valve

1шт.

10

NLS

NO LONGER SERVICED

SCREW - relief valve adjusting

1шт.

11

16219

GASKET

- relief valve

2шт.

12

25-119

NUT,9/16"-18, G5

- hex. (9/16 - 18NF)

1шт.

13

48355

NUT - cap (9/16 - 18NF)

1шт.

14

16205

RETAINER - spring

1шт.

15

16204

VALVE

SPRING - spool return

1шт.

16

16411

HOSE

GUIDE - spool return spring

1шт.

17

16413

HOSE

- spring guide

1шт.

18

16211

HOSE

GASKET - valve cap

1шт.

19

NLS

NO LONGER SERVICED

CAP - valve, short

1шт.

20

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS - 5/16 - 18NC x 3/4

2шт.

21

16405

COLLAR

GASKET - valve

1шт.

See Figure Note.

1шт.

38995

SECTION - valve, center (38876 valve only)

1шт.

22

5456

SPRING

HOUSING AND SPOOL - matched set

1шт.

22a

221-664

PLUG,Hex Hd, 1/2"-14

- pipe, 1/2 NPT socket hd.

1шт.

23

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

1шт.

24

16212

HOSE

SPRING - check valve

1шт.

25

VT4852

X

BALL - check valve, 5/32 dia.

1шт.

26

16214

HOSE

SEAT - check valve

1шт.

27

16207

TUBE

PIN - (1/2 x 21/32)

1шт.

28

16205

RETAINER - spring

1шт.

29

16204

VALVE

SPRING - spool return

1шт.

30

16206

GUIDE - spool return

1шт.

31

16211

HOSE

GASKET - valve cap

1шт.

32

16210

HOSE

CAP - valve, long

1шт.

33

61-513

SHCS - 5/16 - 18NC x 3/4

2шт.

34

16405

COLLAR

GASKET - valve

1шт.

16402

CYLINDER

SECTION - valve outlet

1шт.

See Figure Note.

1шт.

35

5458

HOUSING AND SPOOL - matched set

1шт.

36

221-664

PLUG,Hex Hd, 1/2"-14

- pipe, 1/2 NPT socket hd.

1шт.

37

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

1шт.

38

16212

HOSE

SPRING - check valve

1шт.

39

VT4852

X

BALL - check valve, 5/32 dia.

1шт.

40

16214

HOSE

SEAT - check valve

1шт.

41

16207

TUBE

PIN - (1/4 x 21/32)

1шт.

42

16205

RETAINER - spool return spring

1шт.

43

16204

VALVE

SPRING - spool return

1шт.

44

16206

GUIDE - spool return spring

1шт.

45

16211

HOSE

GASKET - valve cap

1шт.

46

16210

HOSE

CAP - valve, long

1шт.

47

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS - 5/16 - 18NC x 3/4

2шт.

48

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, 1/2 NPT ext. sq. hd.

1шт.

49

39010

STUD - valve (1/2 - 20NF x 6-1/8) (38876 valve only)

4шт.

50

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - elastic stop (1/2 - 20NF) (38876 valve only)

4шт.

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

HHCS - 1/2 - 20NF x 3-1/4 (16400 valve only) (Not shown)

4шт.

See Figure Note.

1шт.
