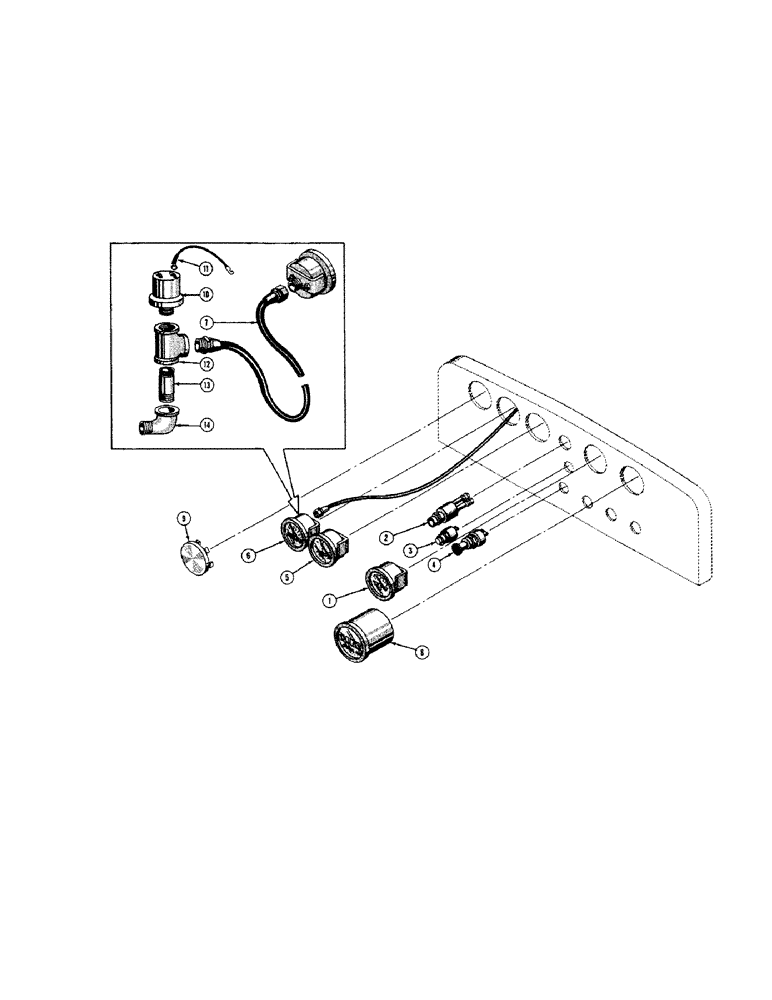

Запчасти Case 520 (066) - INSTRUMENT PANEL (06) - ELECTRICAL SYSTEMS

1

11284

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

2

A10868

DECAL

LOCKSWITCH - ignition

1шт.

3

D23216

SWITCH

- push button starter

1шт.

4

10855

X

SWITCH - light

1шт.

5

10860

X

AMMETER

1шт.

6

NLS

NO LONGER SERVICED

GAUGE - oil pressure

1шт.

7

D20271

HOSE - oil

1шт.

8

33267

CHAIN

METER - engine hours (6 volt) (Gas model only)

1шт.

8

33481

X

METER - engine hours (12 volt) (Diesel model only)

1шт.

9

30842

SPARE PART

PLUG - button

1шт.

32395

SEAL ASSY.

TERMINAL - bullet type (Hour meter wire) (Not shown)

1шт.

54772R2

TERMINAL CONNECTOR

TERMINAL - eyelet type (Hour meter wire) (Not shown)

3шт.

10

O8179AB

X

SWITCH - pressure

1шт.

11

38555

WIRE - jumper

1шт.

12

221-421

TEE,1/8" NPT

- pipe, 1/8 NPT

1шт.

13

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE - pipe, 1/8NPT x 1-1/2

1шт.

14

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.
