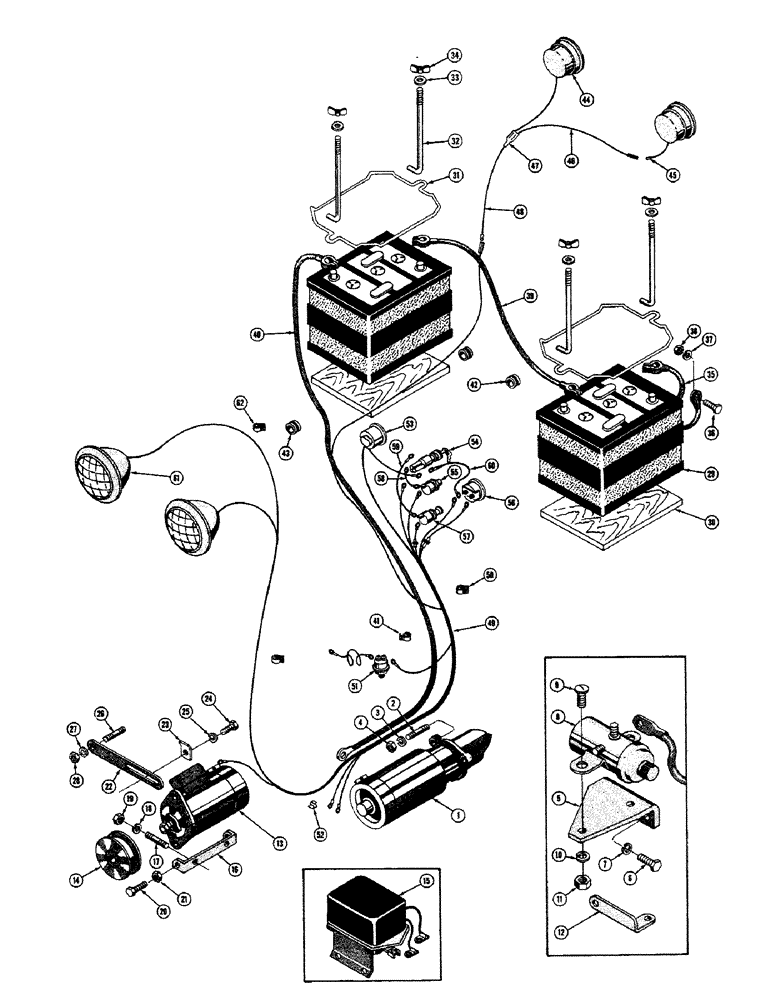

Запчасти Case 520 (052) - STARTER, GENERATOR, BATTERY, AND WIRING, DIESEL (06) - ELECTRICAL SYSTEMS

1

30365

STARTER - (12 volt)

1шт.

2

VT4501

STUD - 3/8 - 16NC x 1-11/16

2шт.

3

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

30438

X

NUT - hex. (3/8 - 16NC)

2шт.

5

30672

BRACKET -, Serial Range: solenoid-crankcase

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

74859

X

SOLENOID - starter

1шт.

9

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

RHMS - #10 - 24NC x 1/2

2шт.

10

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

11

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24NC)

2шт.

12

30675

STRAP - connecting, Serial Range: solenoid-starter

1шт.

13

71824

GENERATOR - (12 volt)

1шт.

14

NSS

NOT SOLD SEPARAT

PULLEY - generator drive

1шт.

15

NSS

NOT SOLD SEPARAT

REGULATOR - voltage (12 volt)

1шт.

16

R17849

BRACKET - mounting, Serial Range: generator-block

1шт.

17

VT4508

STUD - mounting bracket to block (3/8 - 16NC x 1-1/4)

2шт.

18

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

30438

X

NUT - hex. (3/8 - 16NC)

2шт.

20

10295

BUSHING

SCREW - generator to bracket (3/8 - 16 NC x 1-1/4)

2шт.

21

30438

X

NUT - hex. (3/8 - 16NC)

2шт.

22

R17850

STRAP - generator adjusting

1шт.

23

30360

CLIP - generator adjusting strap

1шт.

24

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Generator adjusting strap to generator Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

25

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

26

VT4512

X

STUD - generator adjusting strap to block (3/8 - 16 NC x 1)

1шт.

27

48526

X

WASHER - lock, Shakeproof (3/8)

1шт.

28

VT4505

NUT - hex. (3/8 - 16NC)

1шт.

29

BATTERY - (6 volt) (Not provided by J. I. Case Company) (Exide #SS-1)

2шт.

30

D20835

BOARD - battery bottom

2шт.

31

D20834

X

BRACKET - battery hold down

2шт.

32

38892

BOLT- angle

4шт.

33

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrought (5/16)

4шт.

34

129-419

WING NUT,5/16"-18

NUT - wing (5/16 - 16NC)

4шт.

35

38478

CABLE - battery (Ground)

1шт.

36

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24NF x 1

1шт.

37

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

38

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

1шт.

39

38479

CABLE - battery (Jumper)

1шт.

40

38476

CABLE - battery (Hot)

1шт.

41

49838

CLAMP

CLIP - wiring

2шт.

42

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber

2шт.

43

49562

GROMMET,11/16" ID x 1" Groove Dia

- rubber

1шт.

44

30903

LIGHT - tail (12 volt)

2шт.

33686

BULB

- tail light (12 volt) (Not shown)

1шт.

45

32395

SEAL ASSY.

BULLET - wiring

2шт.

46

D23584

WIRE - jumper (LH tail light to snap coupler)

1шт.

47

D23602

COUPLER - female (2 wire)

1шт.

48

D23408

WIRE - jumper (Snap coupler to main harness)

1шт.

49

38561

CABLE - main wiring

1шт.

50

49832

CLAMP

- wiring

1шт.

51

O8179AB

X

SWITCH - pressure, hour meter

1шт.

52

49874

ROD

- wiring

2шт.

53

33481

X

METER - engine hour (12 volt)

1шт.

54

10868

LOCKSWITCH - ignition

1шт.

55

D23216

SWITCH

- push button starter

1шт.

56

10860

X

AMMETER

1шт.

57

10855

X

SWITCH - light

1шт.

58

33709

WIRE - jumper, ignition switch to starter button

1шт.

59

33705

GLASS

WIRE - jumper, ignition switch to light switch

1шт.

60

33706

WIRE - jumper, ignition, Serial Range: switch-ammeter

1шт.

61

37819

LIGHT - head (12 volt)

2шт.

D21323

UNIT - seal beam (12 volt) (Not shown)

1шт.

62

80049853

YOKE

- wiring

4шт.
