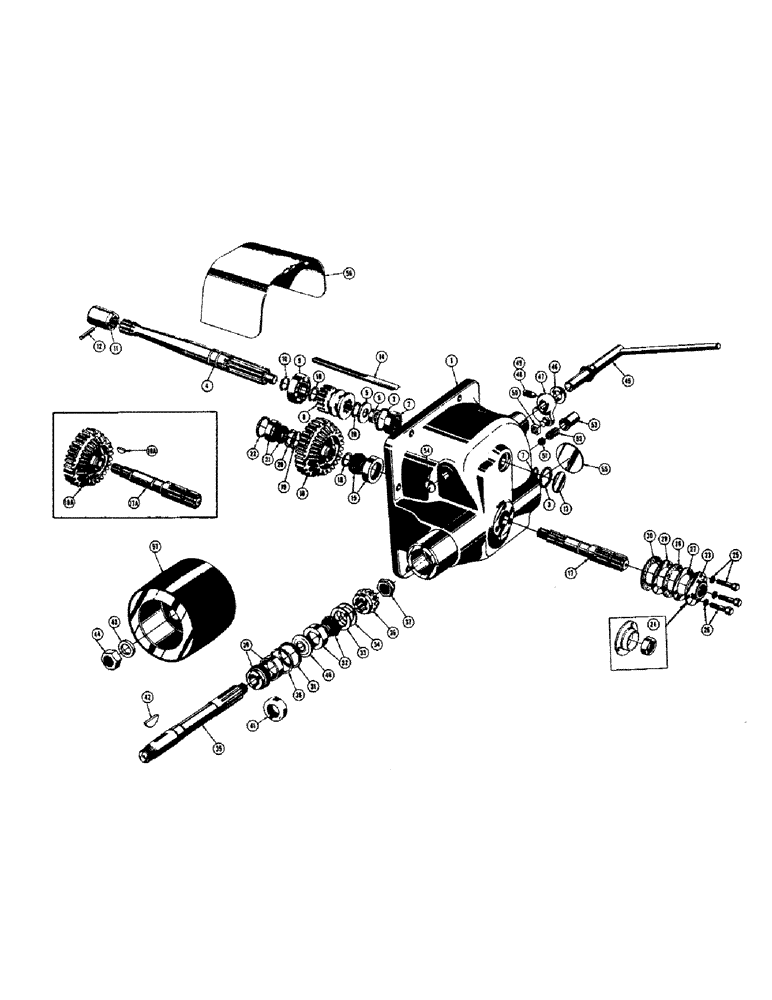

Запчасти Case 520 (148) - POWER TAKE-OFF AND BELT PULLEY (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
D23999
P.T.O. - complete
1шт.
1
23087
HYDRAULIC HOSE
HOUSING - P.T.O. (Includes 1 - 11453 snap ring)
1шт.
2
23043
BEARING - P.T.O. drive
1шт.
3
23030
PLATE
SNAP RING - P.T.O. shaft bearing
2шт.
4
23009
OIL SEAL
SHAFT - P.T.O. drive
1шт.
5
23022
HYDRAULIC HOSE
SPACER - drive shaft bearing
1шт.
6
23023
BEARING CONE,0.669" ID x 0.9797" OD
RACE - inner, drive shaft bearing
1шт.
7
23024
HYDRAULIC HOSE
RING - retaining, drive shaft
1шт.
8
23054
CARTRIDGE
GEAR - P.T.O. drive shaft
1шт.
10
VT2111
X
SNAP RING - P.T.O. drive shaft
3шт.
11
23018
SLEEVE,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring
- drive shaft
1шт.
12
23019
RIVET
- drive shaft sleeve
1шт.
13
23080
HYDRAULIC HOSE
PLUG - Welsh, P.T.O. drive shaft hole
1шт.
14
23088
TUBE
- oil, P.T.O. bearing
1шт.
15
NSS
NOT SOLD SEPARAT
BEARING - roller
1шт.
O4056TS
CUP
- bearing
1шт.
VT3404
X
CONE - bearing
1шт.
16
D23997
GEAR - P.T.O. shaft (Splined hub) (See 23073)
1шт.
16a
23073
HYDRAULIC HOSE,Hex, 3/4"-10 x 10", G5
GEAR - P.T.O. shaft (Keyed hub) (See D23997)
1шт.
17
D23998
SHAFT - P.T.O. (Used with splined gear) (See 23025)
1шт.
17a
23025
HYDRAULIC HOSE
SHAFT - P.T.O. (Used with Woodruff key) (See D23998)
1шт.
18
VT2111
X
SNAP RING - outer bearing retaining
1шт.
19
D23996
SPACER - bearing, P.T.O. shaft gear (Used with splined gear and shaft)
1шт.
19a
23032
X
KEY - Woodruff (Used with 23073 gear only)
1шт.
20
23038
HYDRAULIC HOSE
SHIM - P.T.O. shaft inner bearing (.020)
1шт.
D25223
SHIM - P.T.O. shaft inner bearing (.010)
1шт.
D25222
SHIM - P.T.O. shaft inner bearing (.015)
1шт.
21
NSS
NOT SOLD SEPARAT
BEARING - roller
1шт.
VT2214
X
CUP - bearing
1шт.
O1542AB
BEARING ASSY
CONE - bearing
1шт.
23
23011
PIN
CAP - P.T.O. shaft bearing
1шт.
24
23033
OIL SEAL
SEAL - oil, P.T.O. shaft
1шт.
25
NLS
NO LONGER SERVICED
SCREW AND LOCKWASHER
1шт.
26
23016
CAP
SCREW AND LOCKWASHER
2шт.
27
23013
TINE
SHIM - P.T.O. shaft bearing cap (.010)
1шт.
28
23014
4 WAY CONNECTION
GASKET - P.T.O. shaft bearing cap
1шт.
29
23012
TINE
SHIM - P.T.O. shaft bearing cap (.005)
1шт.
30
23015
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw
GASKET - P.T.O. shaft bearing cap
1шт.
32
NSS
NOT SOLD SEPARAT
BEARING - roller
1шт.
O4056TS
CUP
- bearing
1шт.
VT3404
X
CONE - bearing
1шт.
33
23035
HYDRAULIC HOSE
SHIM - B.P. shaft inner bearing (.005)
1шт.
34
23036
HYDRAULIC HOSE
SHIM - B.P. shaft inner bearing (.010)
1шт.
35
23027
SHAFT - belt pulley
1шт.
36
23074
HYDRAULIC HOSE
GEAR - B.P. shaft
1шт.
37
11380
NUT
- B.P. gear retaining
1шт.
39
NSS
NOT SOLD SEPARAT
BEARING - roller
1шт.
O4056TS
CUP
- bearing
1шт.
VT3404
X
CONE - bearing
1шт.
40
23037
HYDRAULIC HOSE
WASHER - oil, B.P. shaft
1шт.
41
D49930
OIL SEAL
SEAL - oil, B.P. shaft
1шт.
42
D20977
X
KEY - Woodruff, B.P. shaft
1шт.
43
23042
HYDRAULIC HOSE
WASHER - B.P. retaining nut
1шт.
44
23041
HYDRAULIC HOSE
NUT - B.P. retaining
1шт.
45
23046
VALVE SPRING
SHIFT LEVER AND SHAFT - P.T.O.
1шт.
46
23093
HYDRAULIC HOSE
WASHER - cork, shift shaft
1шт.
47
23094
HYDRAULIC HOSE
FINGER - shift
1шт.
48
23095
HYDRAULIC HOSE
SCREW - mounting, shift finger
1шт.
49
R10831
ELECTRICAL WIRE
WIRE - lock
1шт.
50
23096
FILTER ASSY
TRUNNION - shift finger
1шт.
51
O8296AB
X
BALL - mesh lock
1шт.
52
23098
SPRING
- mesh lock
1шт.
53
23097
FLANGE NUT,Flg, 7/16"-14, GF
RETAINER - mesh lock
1шт.
54
23089
HYDRAULIC HOSE
PLUG - Welsh, P.T.O. shift shaft bore
1шт.
55
23034
HYDRAULIC HOSE
PLUG - Welsh, B.P. shaft
1шт.
56
23040
HYDRAULIC HOSE
SHIELD - P.T.O.
1шт.
57
23045
BUSHING
PULLEY - P.T.O. belt
1шт.
Выбрано товаров: 71
