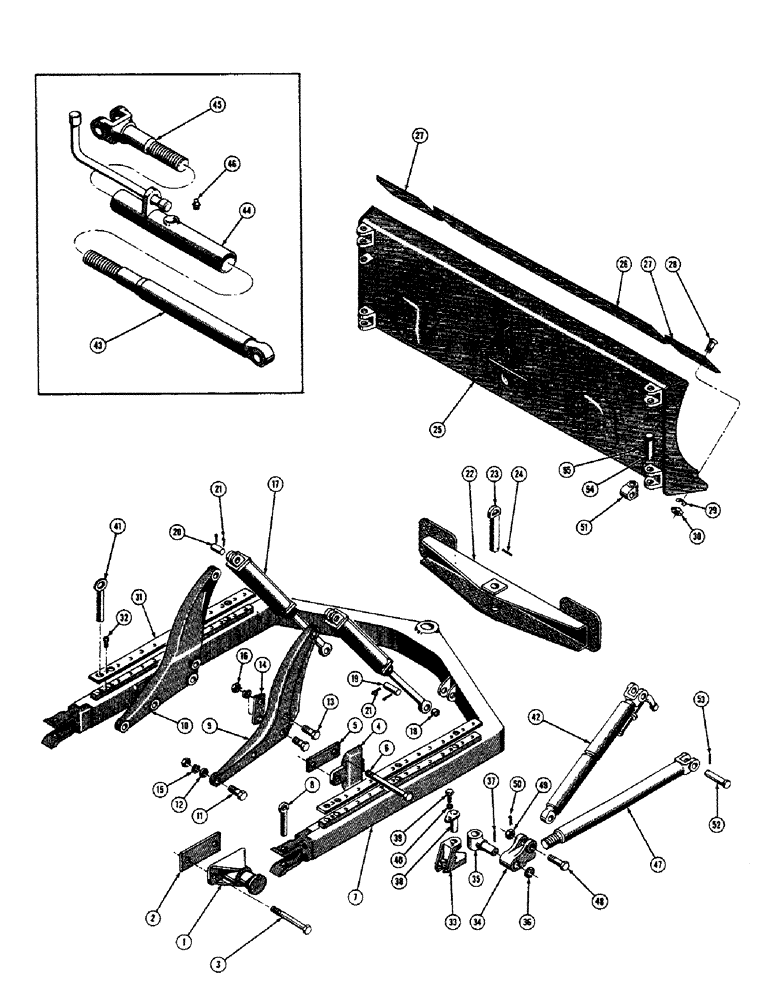

Запчасти Case 520 (128) - MECHANICAL ANGLING DOZER (05) - UPPERSTRUCTURE CHASSIS

1

34044

SPACER

BRACKET - pivot, dozer attaching

2шт.

2

34043

SPACER,12.95mm ID x 19.05mm OD x 17.47mm L

- pivot bracket

2шт.

3

16-12192

BOLT (MACHINE)

HHCS - 3/4 - 16NF x 12

4шт.

4

33961

CONNECTING LINK

PLATE - dozer rub

2шт.

5

34047

LEVER

SPACER - rub plate

2шт.

6

16-12192

BOLT (MACHINE)

HHCS - 3/4 - 16NF x 12

4шт.

7

37575

COVER

"C" FRAME - dozer

1шт.

8

38679

PIN - mounting, "C" frame

2шт.

9

16692

BRACKET - cylinder, RH

1шт.

10

16693

CLAMP

BRACKET - cylinder, LH

1шт.

11

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

6шт.

12

32799

SPACER

4шт.

13

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

HHCS - 5/8 - 18NF x 2-3/4

2шт.

14

17803

PLATE - reinforcing

2шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

16

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18NF)

8шт.

17

17751

CYLINDER - hydraulic lift (See figure 124 (1) for breakdown)

2шт.

18

17631

BUSHING

2шт.

19

18743

PIN - mounting, lower

2шт.

20

16726

PIN - mounting, upper

2шт.

21

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

22

38107

BOARD

SWIVEL - pivot, moldboard

1шт.

23

38072

PIN

- mounting, "C" frame to moldboard pivot swivel

1шт.

24

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

25

38037

SHIM,.010" Thk

MOLDBOARD - dozer

1шт.

26

38047

EDGE

BLADE - cutting, center

1шт.

27

16042

EDGE

BLADE - cutting, end

2шт.

28

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, 1/2 - 13NC x 1-3/4

23шт.

29

92-8

LOCK WASHER,1/2"

23шт.

30

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 20NF)

23шт.

31

37573

PLATE - slide

2шт.

32

62-828

SHCS - 1/2 - 20NF x 1-3/4

26шт.

33

39127

BRACKET

- slide

2шт.

34

39125

BRACKET - strut

2шт.

35

39124

PAWL

PIN - strut

2шт.

36

39131

WASHER - special

2шт.

37

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

2шт.

38

39130

PIN - mounting, strut to slide bracket

2шт.

39

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20NF x 3/4

2шт.

40

92-8

LOCK WASHER,1/2"

2шт.

41

38070

LUBE NIPPLE

PIN - angling stop

2шт.

42

38062

STRUT - upper

2шт.

43

38051

SCREW - bottom strut

1шт.

44

38063

TURNBUCKLE

1шт.

45

38055

SCREW - top strut

1шт.

46

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

47

38026

SPARE PART

STRUT - lower

2шт.

48

38025

SPARE PART

BOLT - strut

2шт.

49

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - castle (3/4 - 16NF)

2шт.

50

132-34

COTTER PIN,3/32" x 1 3/4"

Pin, Split (Cotter), 3/32" x 1 3/4"

2шт.

51

38023

UNIVERSAL

4шт.

52

38067

PIN - mounting, Serial Range: universal-strut

4шт.

53

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.

54

38068

PIN - mounting, Serial Range: universal-moldboard

4шт.

55

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.
