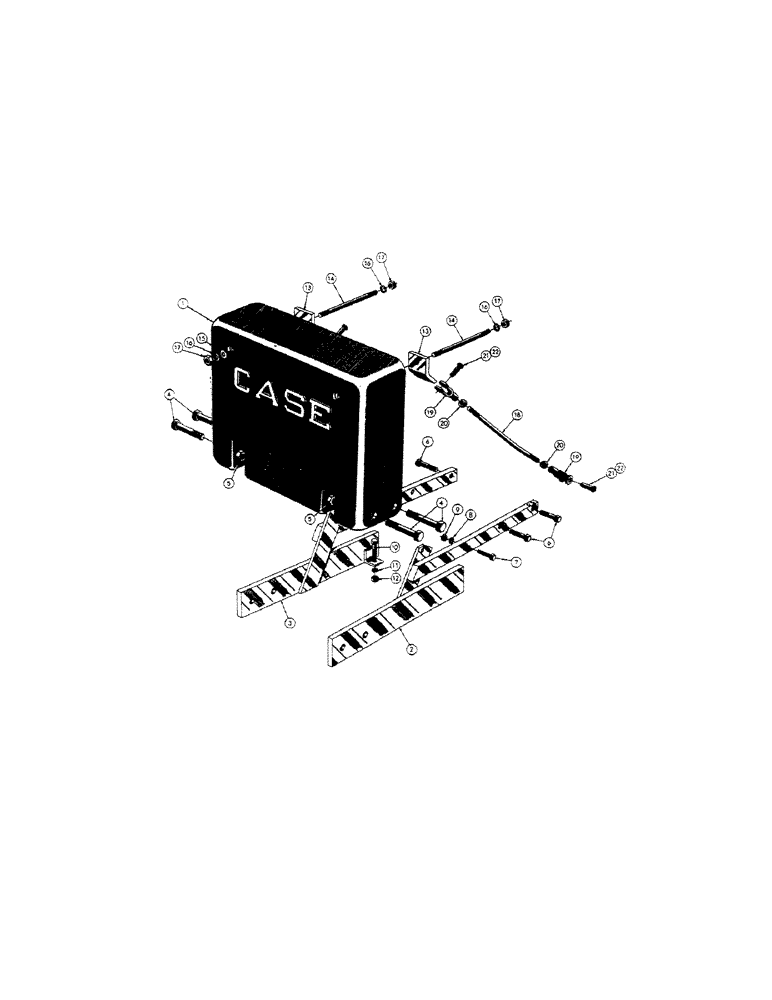

Запчасти Case 520 (122) - REAR COUNTERWEIGHT, 1400 POUND (05) - UPPERSTRUCTURE CHASSIS

1

31112

O-RING

COUNTERWEIGHT - rear (1400 lb.)

1шт.

2

34459

BRACKET - mounting, RH, counterweight

1шт.

3

34460

BRACKET - mounting, LH, counterweight

1шт.

4

14-1688

BOLT,Hex, 1" - 14 x 5-1/2", Gr 5

HHCS - 1 - 14NF x 5-1/2

4шт.

5

131-370

LOCK NUT

NUT - lock, (1 - 14NF)

4шт.

6

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

HHCS - 5/8 - 18NF x 2-3/4

4шт.

14-1064

BOLT,Hex, 5/8" - 18 x 4", Gr 5

HHCS - 5/8 - 18NF x 4 (Used with loader)

2шт.

7

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2 - 20NF x 2-1/4

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

25-118

NUT,1/2"-20, G5

- regular hex. (1/2 - 20NF)

2шт.

10

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

25-1110

NUT,5/8"-18, G5

- regular hex. (5/8 - 18NF)

2шт.

13

32167

STRAP - attaching

2шт.

14

32169

GEAR

ROD - holding

2шт.

15

195-33

WASHER,1/2"

- plain

2шт.

16

92-8

LOCK WASHER,1/2"

4шт.

17

25-118

NUT,1/2"-20, G5

- regular hex. (1/2 - 20NF)

4шт.

18

33432

ROD - brace

2шт.

19

O2701AB

X

YOKE - adjustable

4шт.

20

25-118

NUT,1/2"-20, G5

- regular hex. (1/2 - 20NF)

4шт.

21

O2499AB1

X

PIN - yoke

4шт.

22

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.
