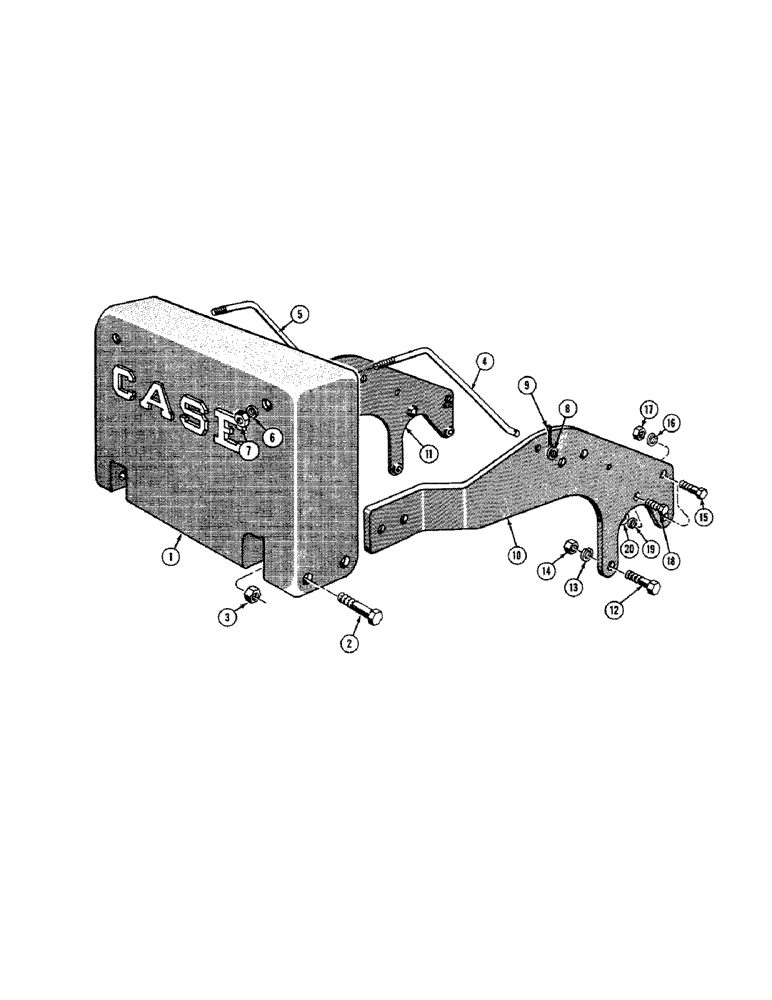

Запчасти Case 520 (122[1]) - REAR COUNTERWEIGHT, WITH P.T.O. AND BELT PULLEY (05) - UPPERSTRUCTURE CHASSIS

1

31112

O-RING

COUNTERWEIGHT - rear, rear counterweight (with p.t.o. and belt pulley)

1шт.

2

14-1688

BOLT,Hex, 1" - 14 x 5-1/2", Gr 5

HHCS - 1 - 14NF x 5-1/2, rear counterweight (with p.t.o. and belt pulley)

4шт.

3

131-370

LOCK NUT

NUT - lock, gripco (1 - 14NF), rear counterweight (with p.t.o. and belt pulley)

4шт.

4

D21392

ROD - support, RH, rear counterweight ( with p.t.o. and belt pulley)

1шт.

5

D21393

ROD - support, LH, rear counterweight ( with p.t.o. and belt pulley)

1шт.

6

195-41

WASHER,5/8"

Rear counterweight (with PTO and belt pulley) 5/8"

2шт.

7

131-154

LOCK NUT,5/8"-18, GA

NUT - self locking, gripco (5/8 - 18NF), rear counterweight (with p.t. o. and belt pulley)

2шт.

8

95-10

WASHER,5/8"

- standard wrought (5/8), rear counterweight (with p.t.o. and belt pulley)

2шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , Rear counterweight (with p.t.o. and belt pulley) 3/16" x 1"

2шт.

10

D21263

ARM - support, counterweight, RH, rear counterweight (with p.t.o. and belt pulley)

1шт.

11

D21264

ARM - support, counterweight, LH, rear counterweight ( with p.t.o. and belt pulley)

1шт.

12

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4 - 16NF x 2-3/4, rear counterweight (with p.t.o. and belt pulley)

2шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Rear counterweight (with PTO and belt pulley) 3/4"

2шт.

14

25-1712

NUT,3/4"-16, G5, Hvy

- hex. (Heavy) (3/4 - 16NF), rear counterweight (with p.t.o. and belt pulley)

2шт.

15

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

HHCS - 5/8 - 18NF x 2-3/4, rear counterweight ( with p.t.o. and belt pulley)

4шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rear counterweight (with PTO and belt pulley) 5/8"

4шт.

17

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18NF), rear counterweight (with p.t.o. and belt pulley)

4шт.

18

14-844

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

HHCS - 1/2 - 20NF x 2-3/4, rear counterweight ( with p.t.o. and belt pulley)

2шт.

19

92-8

LOCK WASHER,1/2"

rear counterweight (with p.t.o. and belt pulley) 1/2"

2шт.

20

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20NF), rear counterweight (with p.t.o. and belt pulley)

2шт.
