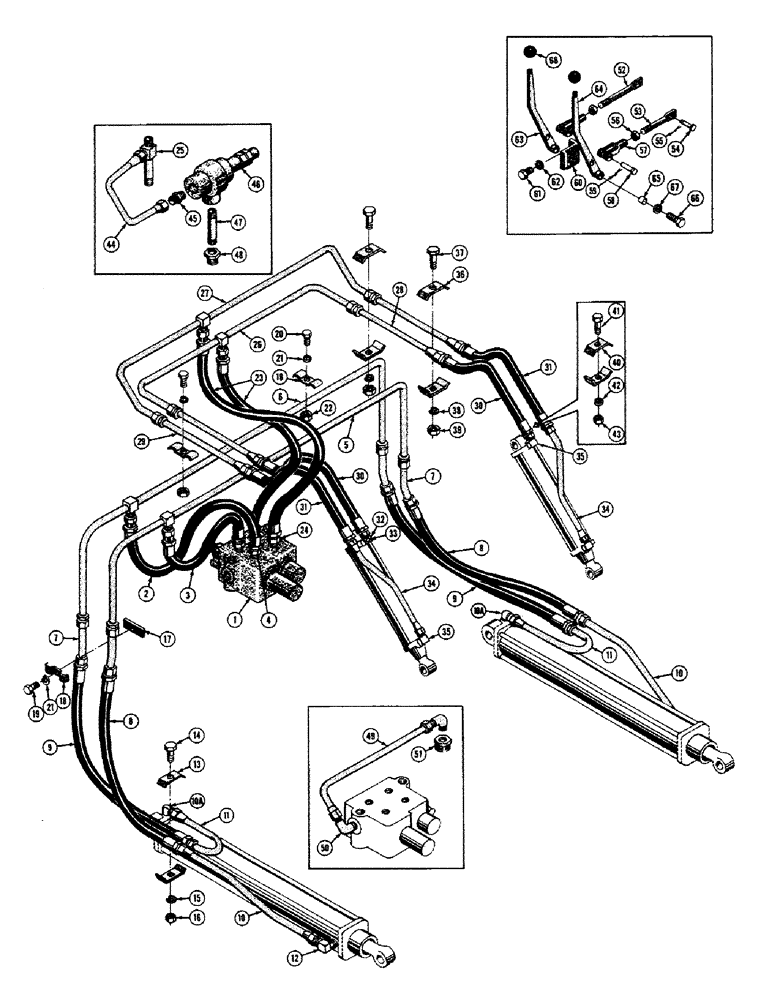

Запчасти Case 520 (118) - TERRALOADR PUMP, VALVE, HOSES, TUBES, AND MOUNTING PARTS (05) - UPPERSTRUCTURE CHASSIS

1

16400

VALVE - control (See figure 102 for breakdown)

1шт.

2

19207

HOSE ASSY.

HOSE - right front valve port to rear lift cylinder manifold tube

1шт.

3

19259

HOSE - right rear valve port to front lift cylinder manifold tube

1шт.

4

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 1/2 NPT x 5/8 JIC

2шт.

5

19260

TUBE - front lift cylinder manifold

1шт.

6

19263

TUBE - rear lift cylinder manifold

1шт.

7

36576

TUBE - lift cylinder manifold tubes to lift cylinder ports (Upper section)

4шт.

8

36574

HOSE

- front lift cylinder manifold tube to lift cylinder front port (Center section)

2шт.

9

36695

HOSE - rear lift cylinder manifold tube to lift cylinder rear port (Center section)

2шт.

10

36588

TUBE - front lift cylinder, Serial Range: port-hose

2шт.

10a

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 5/8 JIC

2шт.

11

36578

TUBE - rear lift cylinder, Serial Range: port-hose

2шт.

12

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 5/8 JIC

2шт.

13

31665

COLLAR CLAMP

PLATE - clamp

4шт.

14

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

15

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

17

33747

PLATE - tube clamp spacer

2шт.

18

17179

CLAMP - tube

4шт.

19

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24NF x 1-1/2

2шт.

20

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16 - 24NF x 1

2шт.

21

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

22

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

23

35543

HOSE

- left front and rear valve ports to dump cylinder manifold tubes

2шт.

24

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 1/2 NPT x 5/8 JIC (Left front valve port)

1шт.

25

50882

TEE - male, 1/2 NPT x 5/8 JIC x 5/8 JIC

1шт.

26

19267

TUBE - lower dump cylinder manifold

1шт.

27

19269

TUBE - upper dump cylinder manifold

1шт.

28

36582

TUBE - lower dump cylinder manifold tube to dump cylinder rear ports (Rear section)

2шт.

29

36592

TUBE - upper dump cylinder manifold tube to dump cylinder front ports (Rear section)

2шт.

30

36547

HOSE

- dump cylinder rear, Serial Range: port-tube

2шт.

31

NLS

NO LONGER SERVICED

HOSE - tube to dump cylinder front port tube

2шт.

32

33888

TEE - special (RH dump cylinder rear port)

1шт.

33

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8 NPT sq. hd.

1шт.

34

36594

FIXING PLATE

TUBE - dump cylinder front, Serial Range: ports-hose

2шт.

35

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 5/8 JIC

3шт.

36

32978

PLATE ASSY.

PLATE - tube clamp

8шт.

37

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24NF x 1-1/2

4шт.

38

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

39

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

40

31665

COLLAR CLAMP

PLATE - tube clamp

4шт.

41

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

42

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

43

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

44

38791

TUBE - control valve to relief valve

1шт.

45

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 1/2 NPT x 5/8 JIC

1шт.

46

D24452

VALVE

- special relief (See page 184 for breakdown)

1шт.

47

D21315

NIPPLE - pipe, 1/2 x 3-1/2 long

1шт.

48

221-60

TUBE

BUSHING - pipe, Serial Range: (3/4-1/2)

1шт.

49

38398

TUBE - control valve, Serial Range: outlet-reservoir

1шт.

50

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 NPT x 3/4 JIC

2шт.

51

221-69

BUSHING

- pipe, Serial Range: (1-1/4-3/4)

1шт.

52

35620

SHIM

LINK - valve control (Long)

1шт.

53

32361

SNAP RING

LINK - valve control (Short)

1шт.

54

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (1/4)

2шт.

55

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

56

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

2шт.

57

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - end

2шт.

58

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

59

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

60

32322

BRACKET - mounting, valve lever

1шт.

61

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

62

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

63

38864

LEVER - valve (LH)

1шт.

64

38865

LEVER - valve (RH)

1шт.

65

32362

WASHER

2шт.

66

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20NF x 1-3/4

2шт.

67

195-33

WASHER,1/2"

- plain (1/2)

2шт.

68

CAS31375

KNOB

BALL - valve lever

2шт.
