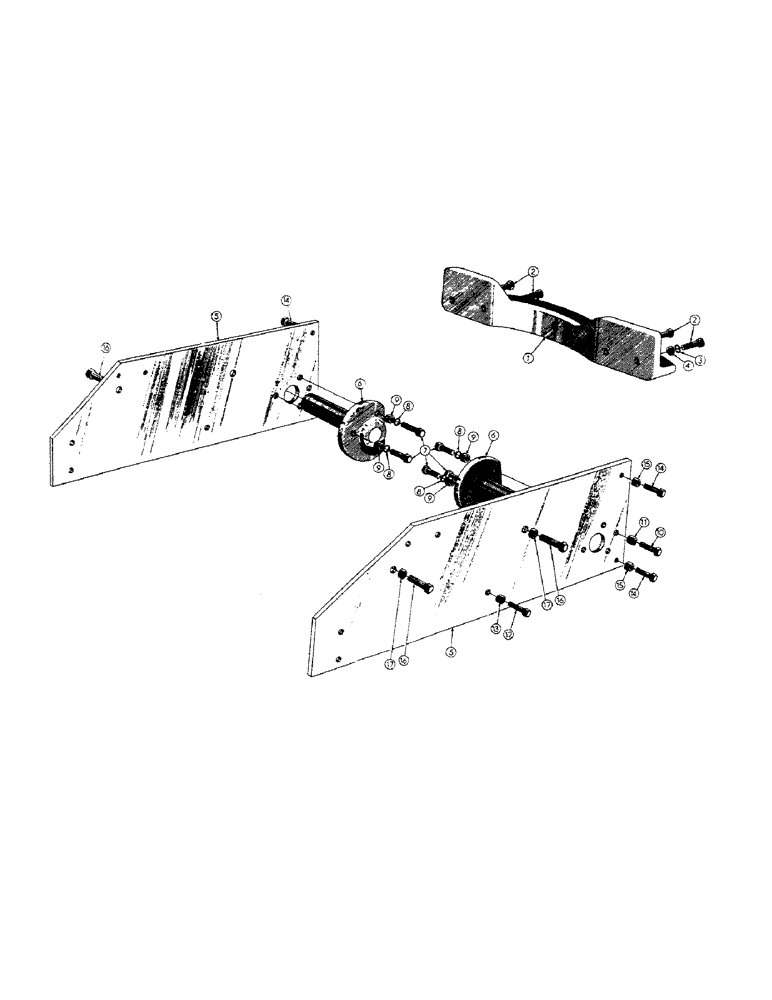

Запчасти Case 520 (084[1]) - SIDE PLATE, PIVOT BAR, AND DRAWBAR GUIDE (05) - UPPERSTRUCTURE CHASSIS

1

13103

GUIDE - drawbar

1шт.

2

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

4шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18NF)

4шт.

5

33111

PLATE - side

2шт.

6

33067

BELT

BAR - pivot

1шт.

7

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS - 3/4 - 16NF x 2-1/2

6шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

9

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16NF)

6шт.

10

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

HHCS - 5/8 - 18NF x 2-1/2

2шт.

11

129-498

NUT - lock (5/8 - 18NF) NASP

2шт.

12

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4 - 16NF x 2-3/4

2шт.

13

25-2712

LOCK NUT

NUT - lock (3/4 - 16NF)

2шт.

14

33046

BOLT - body (5/8 - 18NF x 2-1/2)

4шт.

15

129-498

NUT - lock (5/8 - 18NF) NASP

4шт.

16

33047

BOLT,Hex, 1" - 14 x 3 3/32"

- body (1 - 14NF x 3-3/32)

4шт.

17

129-500

WING NUT,#10-32

NUT - lock (1 - 14NF)

4шт.
