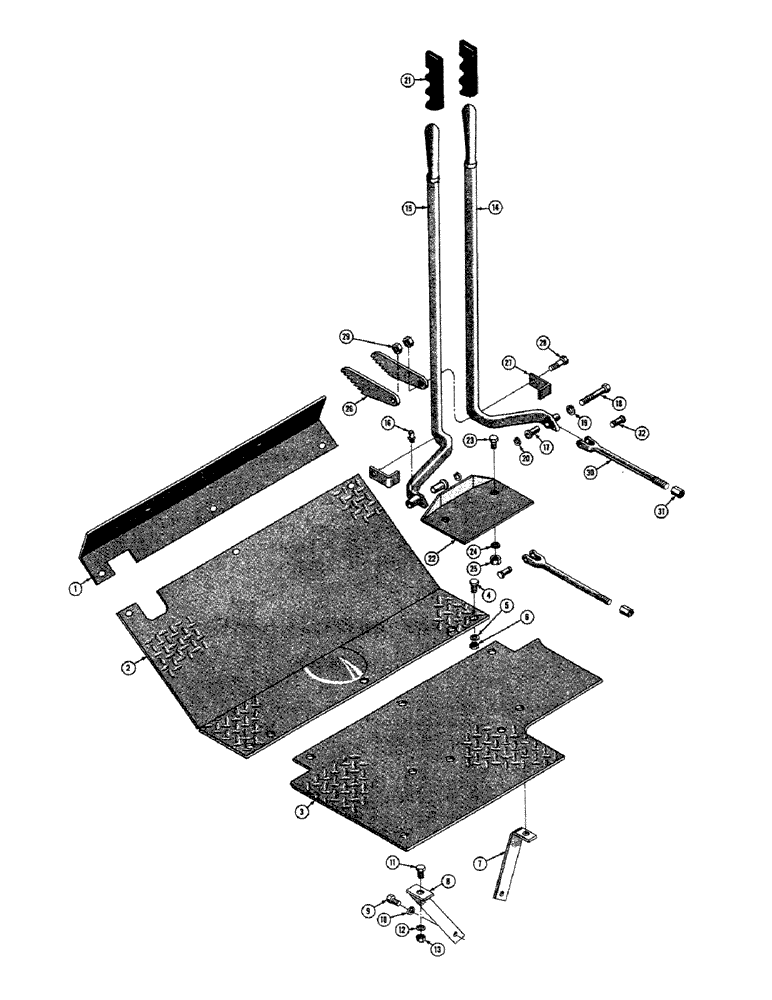

Запчасти Case 520 (074) - FLOOR PLATE, STEERING LEVERS AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

34915

PLATE - closure

1шт.

2

35501

RING

PLATE - floor, front

1шт.

3

31057

PLATE - floor, rear

1шт.

4

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 -24NF x 1

11шт.

5

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

6

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

11шт.

7

33605

EXHAUST MANIFOLD

BRACE - floor plate, RH

1шт.

8

33606

BRACE - floor plate, LH

1шт.

9

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24NF x 1

2шт.

12

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

14

35625

LEVER - brake, RH

1шт.

15

35626

LEVER - brake, LH

1шт.

16

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, drive-type

2шт.

17

35504

BUSHING

- brake lever

2шт.

18

13-960

BOLT,Hex, 9/16" - 12 x 3-3/4", Gr 5

HHCS - 9/16 - 12NC x 3-3/4

2шт.

19

195-37

WASHER,9/16"

- plain (91/6)

2шт.

20

92-9

BEARING WASHER,9/16"

2шт.

21

31400

CLAMP

GRIP - rubber, brake lever

2шт.

22

35503

FLANGE

PLATE - ratchet

1шт.

23

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

2шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20NF)

2шт.

26

33604

RATCHET

- brake lever

2шт.

27

36880

SPARE PART

STOP

2шт.

28

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8 - 24NF x 1-1/2

2шт.

29

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex. jam (3/8 - 24NF)

2шт.

30

35505

ROD

- yoke, steering

2шт.

31

11471

NUT

- steering rod

2шт.

32

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Not shown 1/8" x 3/4"

2шт.
