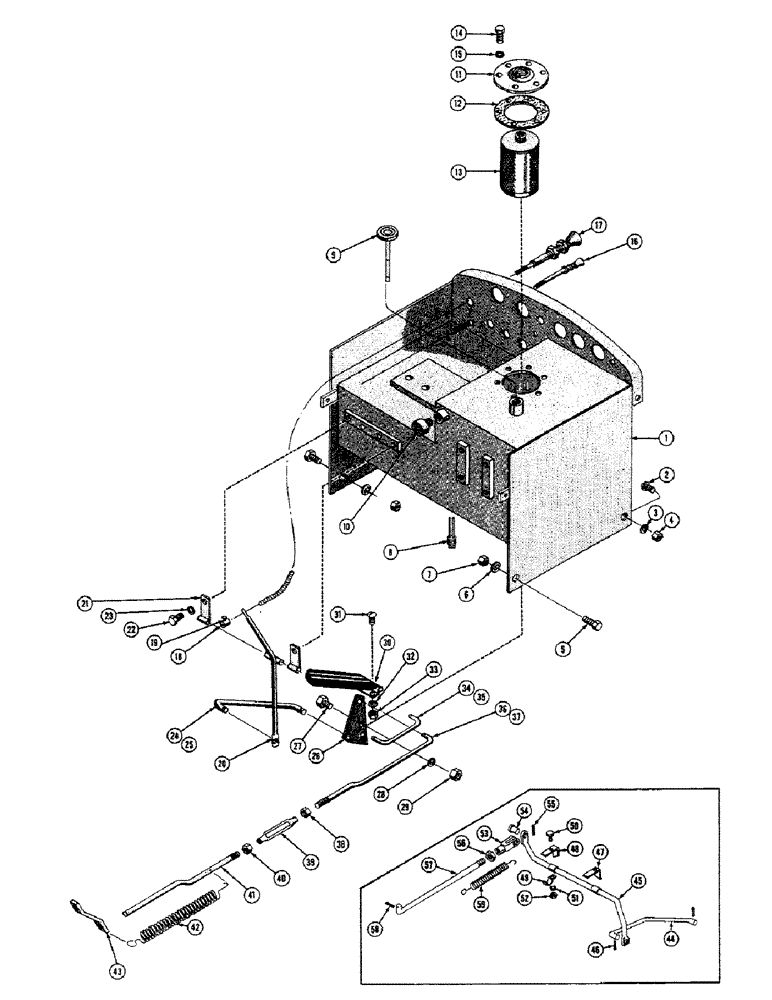

Запчасти Case 520 (062) - COWL, DASH, AND THROTTLE CONTROL (05) - UPPERSTRUCTURE CHASSIS

1

38295

SPRING

COWL AND DASH - (Gas model only)

1шт.

38231

EYEBOLT

COWL AND DASH - (Diesel model only)

1шт.

2

78-812

SCREW - truss hd. mach., 1/2 - 20NF x 3/4

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

4

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

2шт.

5

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20NF x 1-1/4

2шт.

6

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - lock, Shakeproof (Internal tooth) (1/2)

2шт.

7

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20NF)

2шт.

8

D21397

PLUG - pipe, 3/4 NPT (Magnetic)

1шт.

9

35072

CAP AND GAUGE - filler

1шт.

10

31543

BREATHER

FILTER - breather

1шт.

11

38266

ARM

CAP - inlet, oil filter

1шт.

12

36321

GASKET

- oil filter inlet cap

1шт.

13

36442

FILTER

- oil

1шт.

14

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24NF x 1

6шт.

15

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

16

10856

CONTROL - carburetor choke (Gas model only)

1шт.

10858

LOOM - protective, choke control (Gas model only) (Not shown)

1шт.

38367

BRUSH, COMMUTATOR

CONTROL - engine fuel shut off (Diesel model only)

1шт.

38368

LOOM - protective, fuel shut off control (Diesel model only) (Not shown)

1шт.

17

35312

WASHER

THROTTLE - hand

1шт.

18

34823

CHAIN LINK

STOP - pivot, hand throttle

1шт.

19

178-801

SET SCREW,Hex Soc, #10-24 x 1/4"

SCREW - set, #10 - 24NC x 1/4

1шт.

20

D20437

ARM - pivot, hand, Serial Range: throttle-link

1шт.

21

38194

BRACKET - pivot arm

2шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

HHCS - 5/16 - 24NF x 3/4

2шт.

23

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

D20206

LINK - pivot arm to reversing crank

1шт.

25

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (Not shown)

2шт.

26

33275

CRANK - reversing

1шт.

27

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8 - 24NF x 1-1/2

1шт.

28

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

29

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

1шт.

30

31267

PEDAL - accelerator

1шт.

31

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

RHMS - #10 - 24NC x 3/4

2шт.

32

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

33

129-7

NUT,Hex, #10 - 24

-hex. (#10 - 24NC)

2шт.

34

32226

DECAL

LINK - pedal to reversing crank

1шт.

35

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (Not shown)

2шт.

36

38254

LINK - throttle, reversing crank to turnbuckle (Gas model only)

1шт.

37

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (Gas model only) (Not shown)

1шт.

38

25-108

NUT,1/2"-13, G5

- hex. (5/16 - 18NC) (Gas model only)

1шт.

39

49785

TURNBUCKLE

- throttle adjusting (Gas model only)

1шт.

40

129-302

NUT - hex. (5/16 - 18NC left hand thread) (Gas model only)

1шт.

41

38255

LINK - turnbuckle to spring (Gas model only)

1шт.

42

32230

X

SPRING - throttle guide to link (Gas model only)

1шт.

43

60659

GUIDE - throttle (Gas model only)

1шт.

44

38798

LINK - reversing crank to pivot shaft (Diesel model only)

1шт.

45

38191

SHAFT - pivot (Diesel model only)

1шт.

46

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (Diesel model only)

1шт.

47

38200

BRACKET - clamp, LH (Diesel model only)

1шт.

48

38199

BRACKET - clamp, RH (Diesel model only)

1шт.

49

38188

CLAMP

- pivot shaft (Diesel model only)

2шт.

50

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16 - 24NF x 1 (Diesel model only)

2шт.

51

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (Diesel model only) 5/16"

2шт.

52

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF) (Diesel model only)

2шт.

53

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

END - adjustable yoke (Diesel model only)

1шт.

54

VT2105

X

PIN - yoke (Diesel model only)

1шт.

55

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (Diesel model only) 1/16" x 1/2"

1шт.

56

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28NF) (Diesel model only)

1шт.

57

35471

RING

ROD - pull, pivot shaft to governor (Diesel model only)

1шт.

58

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (Diesel model only)

1шт.

59

32230

X

SPRING - throttle return (Diesel model only)

1шт.
