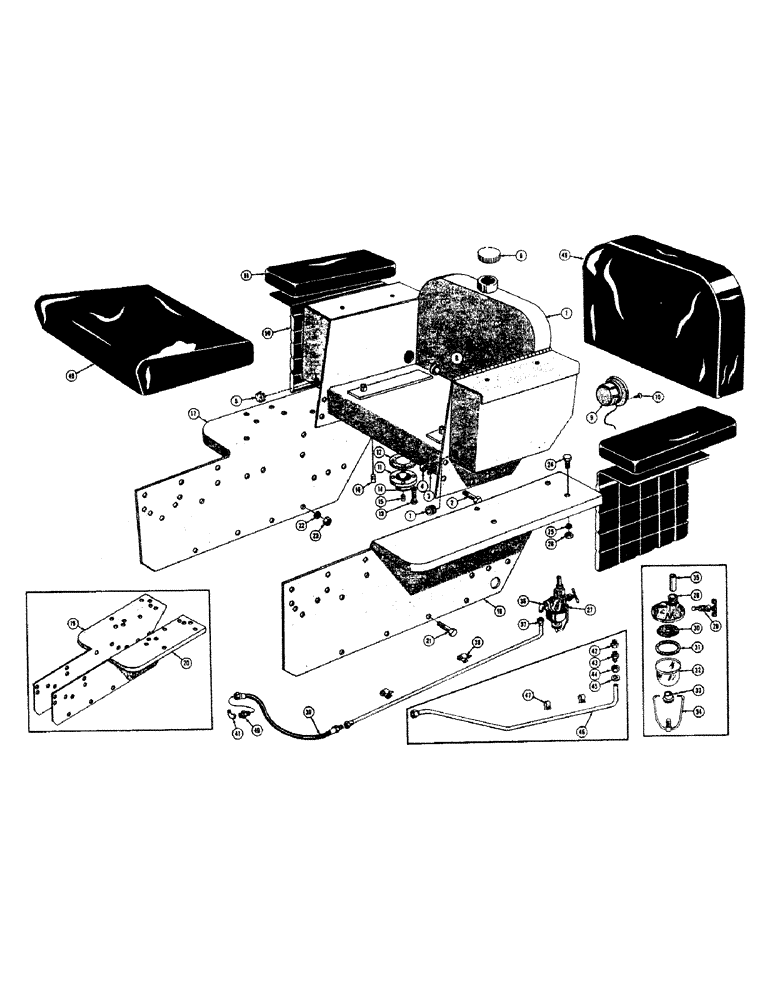

Запчасти Case 520 (060) - FENDERS, FUEL TANK, SEAT, AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS

1

38490

EXTENSION

SEAT AND TANK ASB'Y.

1шт.

2

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8 - 24NF x 3/4

10шт.

3

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

10шт.

5

49864

X

PLUG - button (Gas model only)

1шт.

6

CASE10731

FILLER CAP

CAP - filler

1шт.

7

49562

GROMMET,11/16" ID x 1" Groove Dia

- rubber (2 used on diesel model)

1шт.

8

49561

GROMMET,1/4" ID x 7/16" Groove Dia

- rubber

2шт.

9

30902

LIGHT - tail (6 volt) (Gas model only)

2шт.

33685

BULB - tail light (6 volt) (Not shown)

1шт.

30903

LIGHT - tail (12 volt) (Diesel model only)

2шт.

33686

BULB

- tail light (12 volt) (Not shown)

1шт.

10

187-29

SCREW

- self tapping

6шт.

11

34574

BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L

COVER - fuel tank drain

1шт.

12

35621

GASKET

- fuel tank drain cover

1шт.

13

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24NF x 1

4шт.

14

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8 NPT ext. sq. hd.

1шт.

16

221-833

PLUG - pipe, 3/8 NPT ext. sq. hd.

2шт.

17

38488

HYD CONNECTOR

FENDER - RH

1шт.

18

38489

HYD CONNECTOR

FENDER - LH

1шт.

19

38747

FENDER - RH (Terraload'r only)

1шт.

20

38746

DECAL

FENDER - LH (Terraload'r only)

1шт.

21

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20NF x 1-1/2

3шт.

22

92-8

LOCK WASHER,1/2"

3шт.

23

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20NF)

3шт.

24

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24NF x 1

4шт.

25

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

26

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

4шт.

27

O3990AB1

X

STRAINER - fuel

1шт.

28

A11214

HEAD

- fuel strainer

1шт.

29

A11205

VALVE

- shut off

1шт.

30

A11211

FILTER SCREEN

SCREEN - strainer

1шт.

31

A11208

GASKET

- bowl

1шт.

32

A11209

BOWL

- glass

1шт.

33

A11210

ADJUSTER

CUP AND NUT - bail

1шт.

34

A11212

BAIL

- bowl

1шт.

35

NLS

NO LONGER SERVICED

TUBE - extension, fuel strainer

1шт.

36

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degree male, 1/8 NPT x 3/8 JIC

1шт.

37

38799

TUBE - fuel line

1шт.

38

38351

SPACER

CLAMP - tube

2шт.

39

36775

HOSE - fuel line

1шт.

40

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Male, 3/8 JIC (Gas model only) 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

41

221-401

ELBOW,45 Degree, 1/8"-27, NPT

- 45 degree street, 1/8 NPT (Gas model only)

1шт.

42

221-52

BUSHING,Hex, 3/8" x 1/8" NPT

- outside hex. (3/8 NPT x 1/8 NPT) (Diesel model only)

1шт.

43

41921

FITTING - ball check (Diesel model only)

1шт.

44

80672C1

DECAL

NUT - Ermeto (Diesel model only)

2шт.

45

30317

X

RING - Ermeto (Diesel model only)

2шт.

46

30520

CAP

TUBE - fuel return (Diesel model only)

1шт.

47

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- fuel return tube (Diesel model only)

2шт.

48

D36612

CUSHION

CUSHION - seat

1шт.

49

33529

BUSHING

CUSHION - back

1шт.

50

31075

PAD - side

2шт.

51

34702

SPRING CUP

CUSHION - arm rest

2шт.
