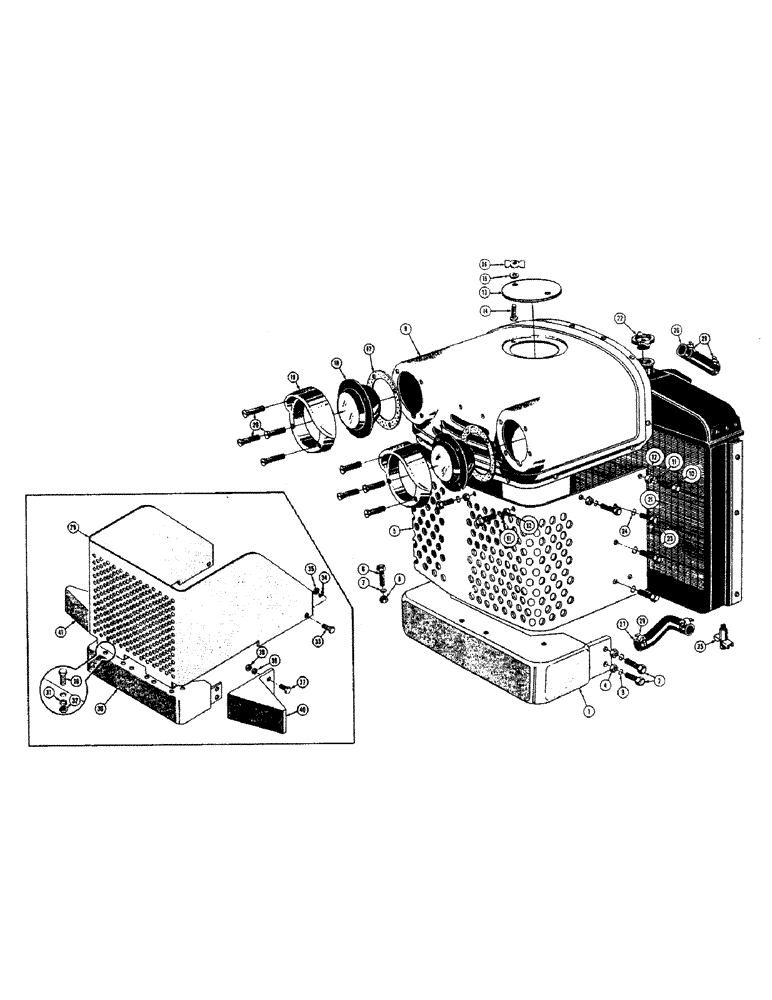

Запчасти Case 520 (058) - RADIATOR, GRILLE CAP, AND GRILLE (05) - UPPERSTRUCTURE CHASSIS

1

D23572

BUMPER - front (Gas model only)

1шт.

34325

BUMPER - front (Diesel model only)

1шт.

2

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20NF x 1-1/2

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20NF)

4шт.

5

30765

PIN

GRILLE - radiator (Gas model only)

1шт.

31297

GRILLE - radiator (Diesel model only)

1шт.

6

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20NF)

4шт.

9

34332

GROOVED PULLEY

GRILLE CAP - radiator

1шт.

10

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24NF x 1

8шт.

11

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

95-6

WASHER,3/8"

- plain (3/8) (Not shown)

8шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

8шт.

36717

PLATE

EMBLEM - (Not shown)

1шт.

73-416

BOLT (MACHINE),Flat, 1/4"

FHMS - 1/4 - 20NC x 1 (Not shown)

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (Not shown) 1/4"

2шт.

25-104

NUT,1/4"-20, G5

(Not shown) 1/4"-20, G5

2шт.

13

31630

COVER - access, radiator

1шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

15

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

129-419

WING NUT,5/16"-18

NUT - wing (5/16 - 18NC)

2шт.

17

NLS

NO LONGER SERVICED

GASKET- head, Serial Range: light-shroud

2шт.

18

36516

X

LIGHT - head (6 volt) (Gas model only)

2шт.

37819

LIGHT - head (12 volt) (Diesel model only)

2шт.

19

31136

RING - mounting, head light

2шт.

20

73-424

BOLT (MACHINE)

FHMS - 1/4 - 20NC x 1-1/2

8шт.

21

NLS

NO LONGER SERVICED

RADIATOR - (Gas model only)

1шт.

34618

CHAIN

RADIATOR - (Diesel model only)

1шт.

22

31988

X

CAP - radiator pressure

1шт.

23

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

6шт.

24

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

25

217-92

COCK

DRAIN COCK - radiator

1шт.

26

31116

HOSE - radiator inlet (Gas model only)

1шт.

31289

PIN

HOSE - radiator inlet (Diesel model only)

1шт.

27

30739

LINE,1.50" ID x 3.75", SAE 20R1

RADIATOR HOSE , Outlet (Gas model only) 1.50" ID x 3.75", SAE 20R1

1шт.

30738

LINE

HOSE - radiator outlet (Diesel model only)

1шт.

28

G10807

CLAMP

- hose

4шт.

29

37792

WASHER

GUARD - radiator, forestry (Optional)

1шт.

30

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20NF x 1

4шт.

31

92-8

LOCK WASHER,1/2"

4шт.

32

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20NF)

4шт.

33

14-1016

BOLT,Hex, 5/8" - 18 x 1"

HHCS - 5/8 - 18NF x 1

2шт.

34

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

35

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18NF)

2шт.

36

37791

SPACER

BUMPER - front (Use with forestry guard only) (Optional)

1шт.

37

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20NF x 1-1/2

8шт.

38

92-8

LOCK WASHER,1/2"

8шт.

39

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20NF)

8шт.

40

37800

EXTENSION - bumper, forestry (LH) (Optional)

1шт.

41

37801

EXTENSION - bumper, forestry (RH) (Optional)

1шт.
