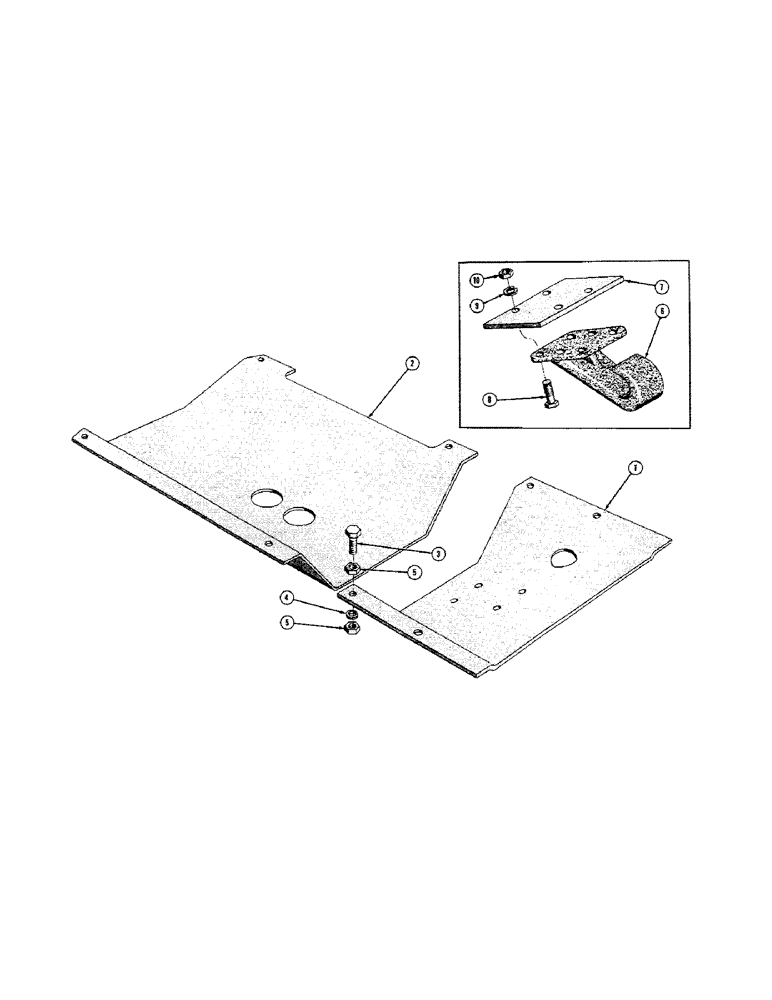

Запчасти Case 520 (098[1]) - PULL HOOK AND CRANKCASE GUARD (04) - UNDERCARRIAGE

1

31290

PIPE

GUARD - crankcase, front

1шт.

2

31294

TOGGLE

GUARD - crankcase, rear

1шт.

3

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20NF x 1-1/2

8шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20NF)

16шт.

6

10940

HOOK

- pull

1шт.

7

32123

LEVER

PLATE - doubler

1шт.

8

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20NF x 1-3/4

4шт.

9

92-8

LOCK WASHER,1/2"

4шт.

10

25-118

NUT,1/2"-20, G5

- hex. (1/2 x 20NF)

4шт.
