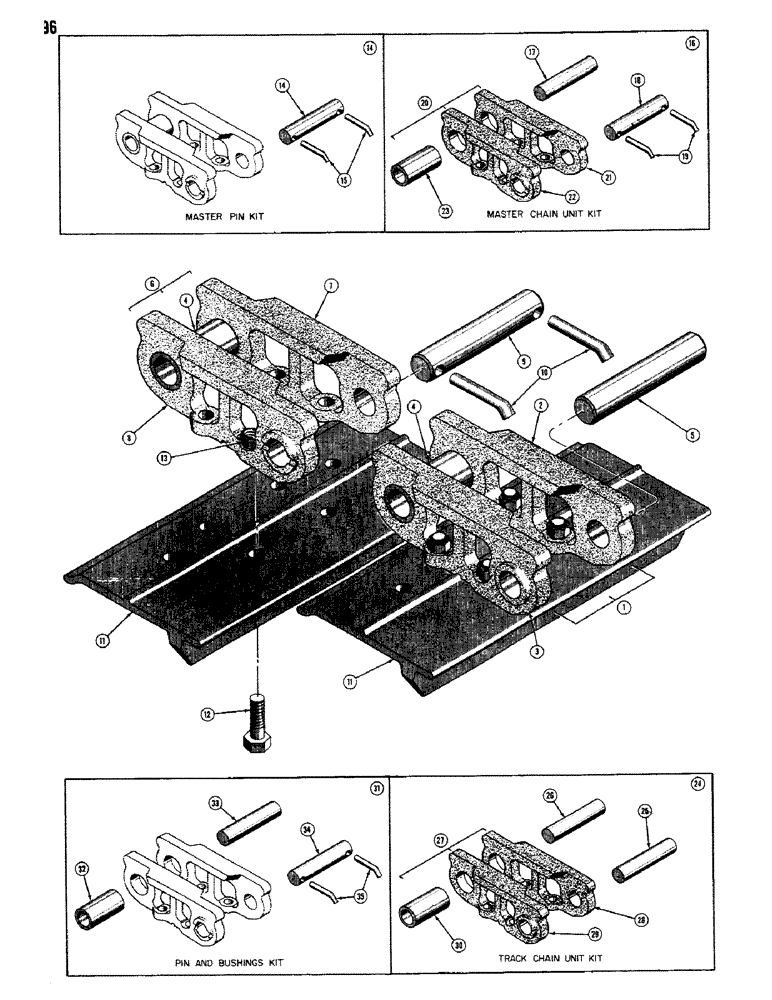

Запчасти Case 520 (096) - TRACK CHAIN (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
NLS
NO LONGER SERVICED
CHAIN - complete, 15 units
2шт.
5482
CHAIN - complete, 16 units
2шт.
1
34589
X
UNIT ASB'Y. - track (See D21014)
15шт.
2
30638
X
LINK - track, RH (See D21014)
15шт.
3
R41049
DRAG LINK
LINK - track, LH (See D21014)
15шт.
5
32831
PIN
- track (Standard) (See D21014; also items 17 and 33)
15шт.
6
34571
KIT
UNIT ASB'Y. - master (See D21013)
1шт.
7
R41050
LINK
- master, RH (See D21013)
1шт.
8
33286
LINK
- master, LH (See D21013)
1шт.
4
NLS
NO LONGER SERVICED
- link (See D21013, 14, 15)
1шт.
9
D21012
PIN
- master (See item #14)
1шт.
10
R15710
LINCH PIN
PIN - lock, master pin
2шт.
11
32884
PLATE - grouser (Standard - 13")
62шт.
12
46944
BOLT,Hex, 7/16" - 20 x 1 1/2", Gr 8
HHCS - special, 7/16 - 20 NF x 1-1/2)
248шт.
13
25-277
NUT - hex., special (7/16 - 20NF)
248шт.
14
D21012
PIN
KIT - master pin
4шт.
15
R15710
LINCH PIN
PIN - lock, master kit
2шт.
16
D21013
KIT
- track master unit, chain
4шт.
17
32836
PIN
- track (Service .003" oversize), master chain unit kit
1шт.
18
D21012
PIN
- master, chain unit kit
1шт.
19
R15710
LINCH PIN
PIN - lock, master pin, chain unit kit
2шт.
20
34571
KIT
UNIT ASB'Y. - master chain unit kit
1шт.
21
R41050
LINK
- master, RH, chain unit kit
1шт.
22
33286
LINK
- master, LH, chain unit kit
1шт.
24
D21014
KIT
- track chain unit
58шт.
25
32831
PIN
- track (Standard), chain unit kit
1шт.
26
32836
PIN
- track, (Service .003" oversize), chain unit kit
1шт.
27
34589
X
UNIT ASB'Y. - track chain unit kit
1шт.
28
30638
X
LINK - track, RH, chain unit kit
1шт.
29
R41049
DRAG LINK
LINK - track, LH, chain unit kit
1шт.
30
NLS
NO LONGER SERVICED
- link, track chain unit kit
1шт.
31
D21015
KIT - pins and bushings
1шт.
33
32836
PIN
- track (Service .003" oversize), bushing kit
60шт.
34
D21012
PIN
- master, bushing kit
4шт.
35
R15710
LINCH PIN
PIN - lock, master pin, bushing kit
2шт.
Выбрано товаров: 38
