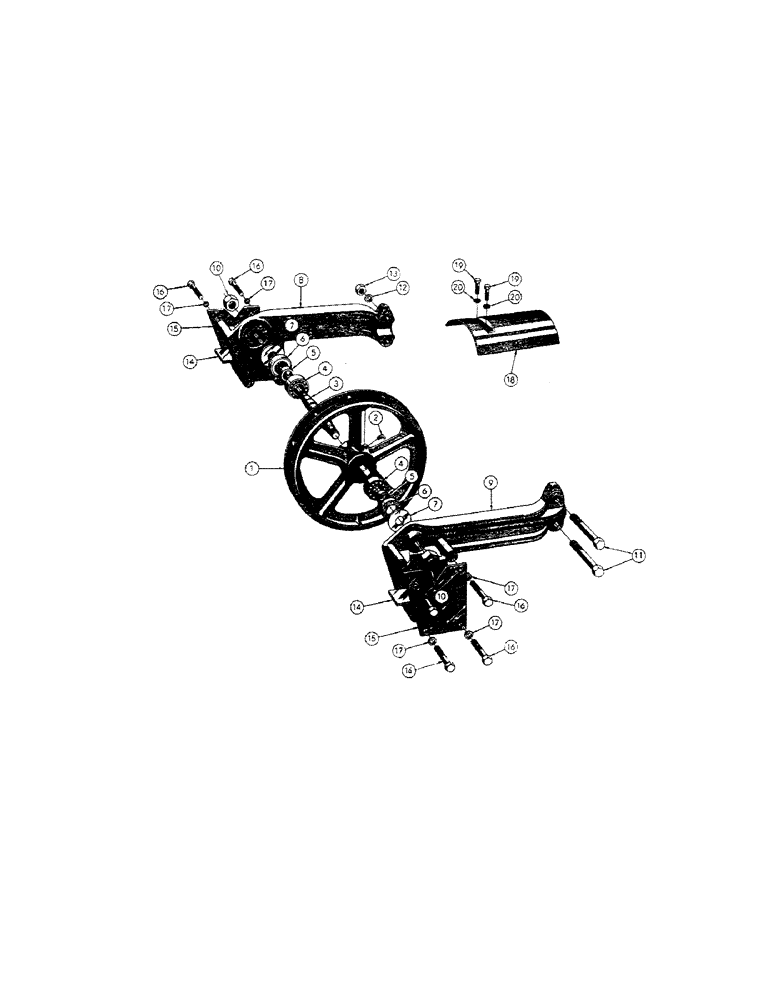

Запчасти Case 520 (090) - IDLER WHEEL (04) - UNDERCARRIAGE

1

32065

FRONT IDLER

HUB - idler wheel

1шт.

2

219-49

LUBE NIPPLE,90 Degree Elbow, 1/4" - 18 NPTF

FITTING - 67-1/2 degree grease, 1/4 NPT (Lincoln #5350)

1шт.

3

32068

SHAFT

- idler wheel

1шт.

4

VT2893

X

BEARING - idler wheel

2шт.

5

32051

SPACER

- idler wheel shaft

2шт.

6

40633

PLATE

SEAL - oil, idler wheel

2шт.

7

30704

BEARING COVER

- idler wheel shaft

2шт.

D20102

BRACKET ASBY. - idler wheel

1шт.

8

NSS

NOT SOLD SEPARAT

BRACKET - idler wheel, RH

1шт.

9

NSS

NOT SOLD SEPARAT

BRACKET - idler wheel, LH

1шт.

10

131-370

LOCK NUT

NUT - lock (1 - 14NF)

2шт.

11

14-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

HHCS - 5/8 - 18NF x 3-3/4

2шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18NF)

2шт.

14

31797

PLATE

PALTE - wear

2шт.

15

31796

PLATE - box

2шт.

16

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20NF x 1-1/2

8шт.

17

92-8

LOCK WASHER,1/2"

8шт.

18

32074

SHIELD

- sliding

1шт.

19

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

HHCS - 3/8 - 24NF x 1/2

2шт.

20

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
