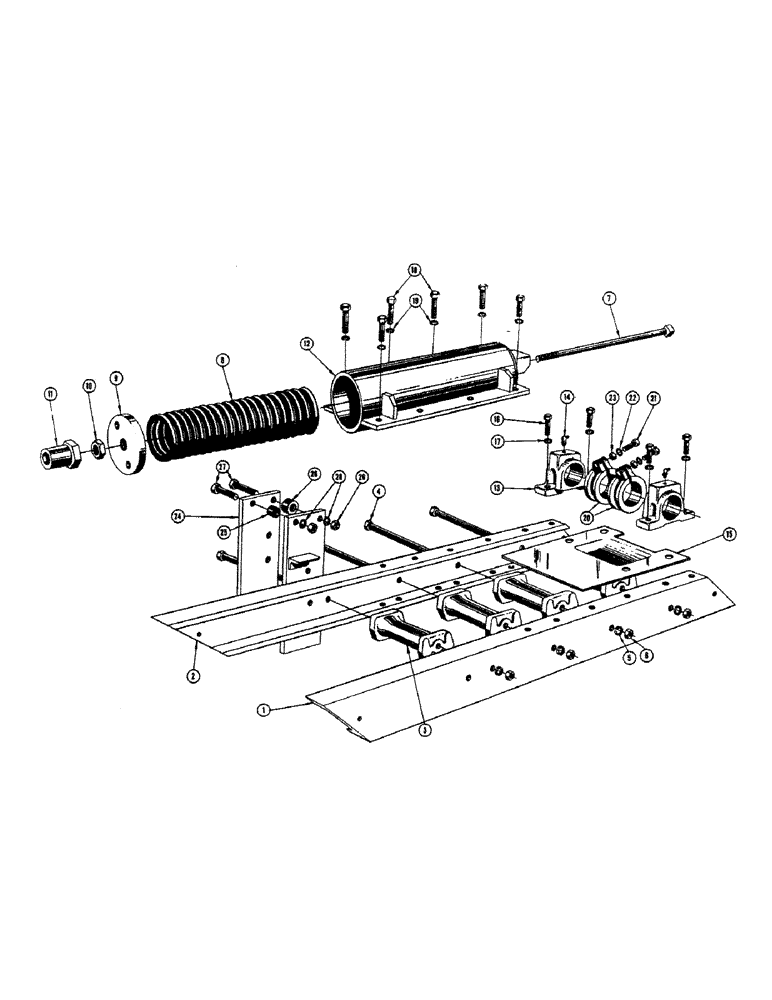

Запчасти Case 520 (088) - TRACK FRAME AND RECOIL SPRING (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
31832
CHANNEL - track, outer, RH
1шт.
31833
CHANNEL - track, outer, LH
1шт.
2
33945
CHANNEL - track, inner, RH
1шт.
33946
COVER PLATE
CHANNEL - track, inner, LH
1шт.
3
NLS
NO LONGER SERVICED
SPACER - track channel
8шт.
4
D23459
HHCS - 3/4 - 16NF x 11-1/8
8шт.
5
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
8шт.
6
25-1112
NUT,3/4"-16, G5
- hex. (3/4 - 16NF)
8шт.
30478
SPRING - recoil, RH, complete
1шт.
7
32094
BOLT,1" - 14 x 24 1/2", Steel
- track adjusting
1шт.
8
12088
DECAL
SPRING - recoil
1шт.
9
32096
NUT - tension adjusting
1шт.
10
25-1516
NUT,Jam, 1"-14, G5
- hex. jam (1 - 14NF)
1шт.
11
51200219
NUT
- track adjusting
1шт.
12
32140
HOUSING - recoil spring, RH
1шт.
30479
DECAL
SPRING - recoil, LH, complete
1шт.
7
32094
BOLT,1" - 14 x 24 1/2", Steel
- track adjusting
1шт.
8
12088
DECAL
SPRING - recoil
1шт.
9
32096
NUT - tension adjusting
1шт.
10
25-1516
NUT,Jam, 1"-14, G5
- hex. jam (1 - 14NF)
1шт.
11
51200219
NUT
- track adjusting
1шт.
12
32141
FITTING
HOUSING - recoil spring, LH
1шт.
13
D27536
BLOCK
BLOCK - pivot
4шт.
14
219-49
LUBE NIPPLE,90 Degree Elbow, 1/4" - 18 NPTF
FITTING - 67-1/2 degree grease, 1/4 NPT (Lincoln #5350)
4шт.
15
32542
PAN - mud
2шт.
16
14-1228
BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5
HHCS - 3/4 - 16NF x 1-3/4
8шт.
17
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
8шт.
18
14-1024
BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5
12шт.
20
15101
CLAMP - track frame mounting
4шт.
21
14-1048
BOLT,Hex, 5/8" - 18 x 3", Gr 5
HHCS - 5/8 - 18NF x 3
4шт.
23
25-1110
NUT,5/8"-18, G5
- hex. (5/8 - 18NF)
4шт.
24
32181
PLATE - forward support
2шт.
25
32182
SPACER
6шт.
26
32332
SPACER
2шт.
27
14-1048
BOLT,Hex, 5/8" - 18 x 3", Gr 5
HHCS - 5/8 - 18NF x 3
8шт.
29
25-1110
NUT,5/8"-18, G5
- hex. (5/8 - 18NF)
8шт.
Выбрано товаров: 39
