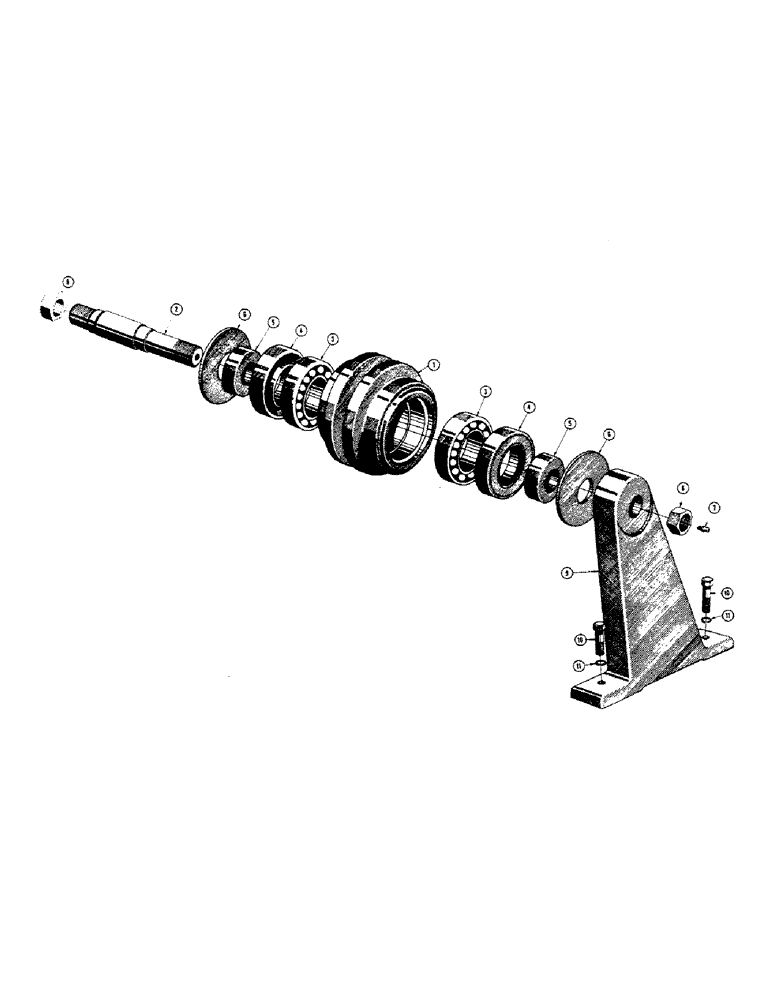

Запчасти Case 520 (086[1]) - TRACK CARRIER ROLLER (04) - UNDERCARRIAGE

31165

X

ROLLER - track carrier (Complete)

2шт.

1

31163

ROLLER

HUB - track carrier roller

1шт.

D10793

X

KIT - track carrier roller

1шт.

2

30707

SHAFT

- carrier roller

1шт.

3

VT2893

X

BEARING - ball

1шт.

4

D29138

OIL SEAL

SEAL - oil

1шт.

5

32051

SPACER

- carrier roller

1шт.

6

30704

BEARING COVER

- carrier roller

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, 1/8 NPT (Lincoln #5000)

1шт.

8

131-370

LOCK NUT

NUT - lock (1 - 14NF)

1шт.

9

30718

BRACKET

- carrier roller

1шт.

8

131-370

LOCK NUT

NUT - lock (1 - 14NF)

1шт.

10

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

4шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
