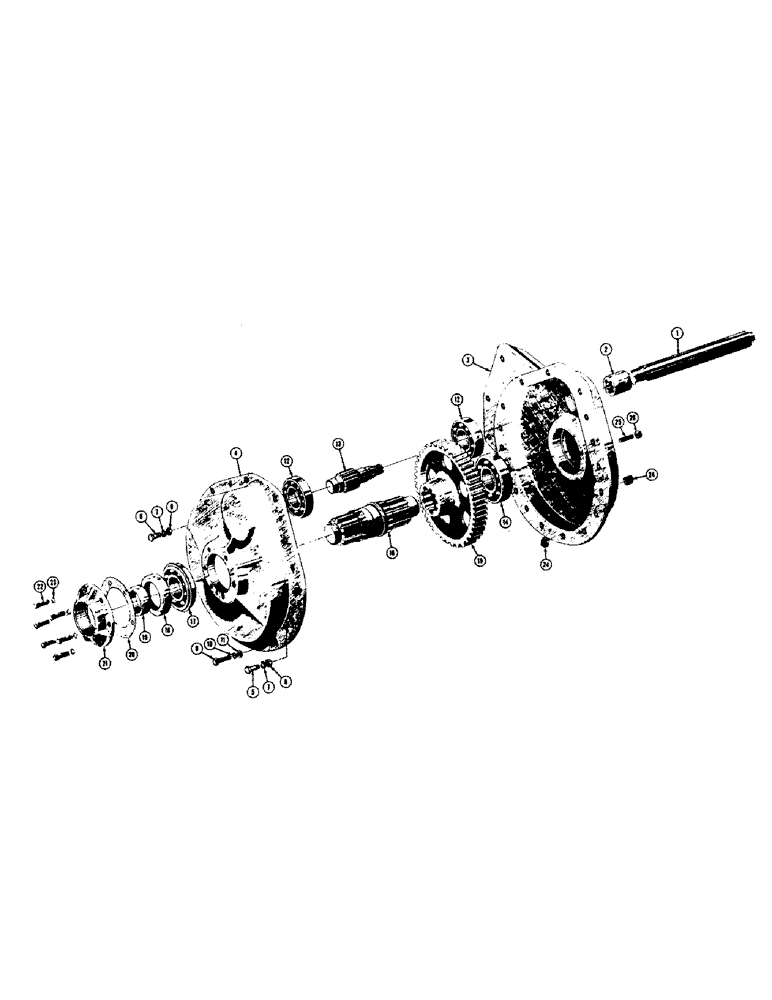

Запчасти Case 520 (082) - FINAL DRIVE AND AXLE SHAFT (03) - TRANSMISSION

1

51200025

SHAFT

SHAFT - axle, final drive

2шт.

2

51200026

COUPLING

COUPLING - final drive

2шт.

3

11816

RIVET

HOUSING - final drive, right hand inner

1шт.

11817

RIVET

HOUSING - final drive, left hand inner

1шт.

4

11823

X

HOUSING - final drive, outer

2шт.

Before ordering outer housings, check the casting number. When replacing 11823 housing with D24658 housing, it will also be necessary to order the following parts, that are listed under D24658: Reference No. 5 thru No. 11.

1шт.

5

14-726

SPARE PART HHCS - 7/16 - 20NF x 1-5/8 Hex, 7/16"-20 x 1 5/8", G5

24шт.

6

14-740

BOLT,Hex, 7/16" - 20 x 2-1/2"

HHCS - 7/16 - 20NF x 2-1/2

10шт.

7

92-7

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

34шт.

8

25-117

NUT,7/16"-20, G5

NUT - hex. (7/16 - 20NF)

34шт.

4

D24658

HOUSING

HOUSING - final drive, outer

2шт.

Before ordering outer housings, check the casting number. When replacing 11823 housing with D24658 housing, it will also be necessary to order the following parts, that are listed under D24658: Reference No. 5 thru No. 11.

1шт.

5

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

HHCS - 7/16 - 14NC x 3/4

18шт.

6

13-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

BOLT, Hex, 7/16"-14 x 2 1/2", G5

10шт.

7

92-7

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

28шт.

8

25-107

NUT,7/16"-14, G5

NUT - hex. (7/16 - 14NC)

28шт.

9

D24688

BOLT

BOLT - body fit (1/2 - 13NC)

6шт.

10

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

6шт.

11

25-108

NUT,1/2"-13, G5

NUT - hex. (1/2 - 13NC)

6шт.

12

40002

BALL BEARING

BEARING - final drive pinion

2шт.

13

51200027

SHAFT

PINION - final drive

2шт.

14

40003

BEARING

BEARING - final drive

2шт.

15

CAS11833

GEAR WHEEL

GEAR - final drive

2шт.

16

CAS11853

SHAFT

SHAFT - final drive

2шт.

17

40039

HINGE

BEARING - outer, final driveshaft

2шт.

18

40610

TUBE NUT

SEAL - oil, final driveshaft

2шт.

19

51200024

SPACER

SPACER - final driveshaft

2шт.

20

CAS11828

GASKET

GASKET - seal retainer

2шт.

21

11827

RETAINER

RETAINER - seal, final driveshaft

2шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

12шт.

23

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

24

D21396

PLUG, DRAIN

PLUG - pipe, magnetic (1/2 NPT)

4шт.

25

R29874

STUD

STUD - mounting, final drive

16шт.

26

129-498

SPARE PART NUT - lock (5/8 - 18NF) NASP

16шт.
