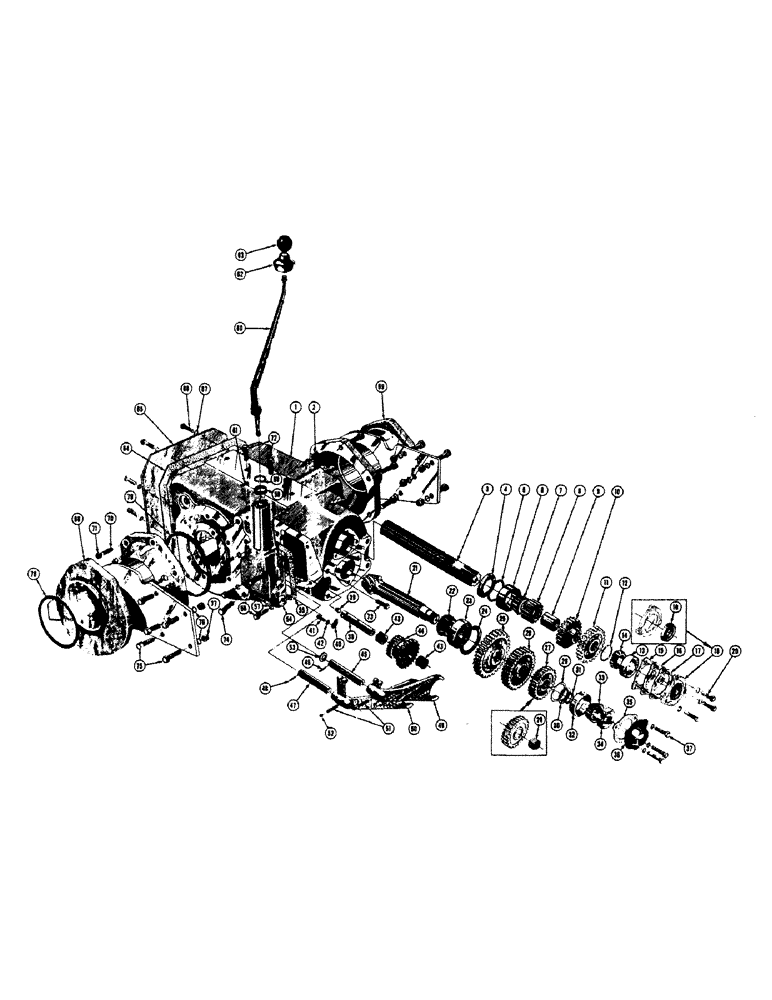

Запчасти Case 520 (078) - TRANSMISSION, DIFFERENTIAL AND FINAL DRIVE SPACERS (03) - TRANSMISSION

D23400

X

TRANSMISSION AND DIFFERENTIAL

1шт.

1

11361

BALL BEARING

CASE - transmission (Includes 11451 snap ring)

1шт.

D23217

X

PLUG - pipe, magnetic (Case drain) (Not shown)

2шт.

2

221-16

PLUG,Sq Hd, 1"-11 1/2 NPTF

- pipe, 1 NPT, case filler

1шт.

221-834

X

PLUG - pipe, 1/2 NPT, oil level (Not shown)

1шт.

3

D33873

MAIN SHAFT

transmission

1шт.

4

11371

CUP ASSY.

CUP - oil, main shaft rear bearing

1шт.

5

11453

TAPERED BEARING

SNAP RING - main shaft rear bearing

1шт.

6

O4056TS

CUP

- bearing

1шт.

7

VT3404

X

CONE - bearing

1шт.

8

11363

BALL BEARING

GEAR - main shaft, low and reverse

1шт.

9

NLS

NO LONGER SERVICED

- main shaft gear

1шт.

10

11365

GEAR

- main shaft, second speed

1шт.

11

11366

GEAR

- main shaft, constant mesh

1шт.

12

VT2111

X

SNAP RING - main shaft

1шт.

13

O4056TS

CUP

- bearing

1шт.

14

VT3404

X

CONE - bearing

1шт.

15

51200023

GASKET

- main shaft front bearing cap

1шт.

16

11367

SHIM

- main shaft front bearing cap (.010)

1шт.

17

11368

SHIM

- main shaft front bearing cap (.005)

1шт.

D20541

SHIM,.020" Thk

Main shaft front bearing cap (Not shown) .020" Thk

1шт.

18

11369

X

CAP - main shaft front bearing

1шт.

19

11370

OIL RESERVOIR

SEAL - oil, bearing cap

1шт.

20

23016

CAP

HHCS AND LOCKWASHER - 3/8 - 16NC x 1

3шт.

21

R25584

GEAR WHEEL

COUNTERSHAFT AND BEVEL PINION

1шт.

22

40384

ROLLER BEARING

CONE - bearing

1шт.

23

12667A1

CUP - bearing

1шт.

24

11451

RING, SNAP

SNAP RING - countershaft rear bearing

1шт.

25

11373

BALL BEARING

- countershaft, first and reverse

1шт.

26

11374

GEAR

- sliding, second and third

1шт.

26

11374GV

DISC

- sliding, second and third

1шт.

27

11375

GEAR

AND BUSHING - third

1шт.

28

11376

BUSHING

- countershaft third gear

1шт.

29

101-21250

SNAP RING,#250, 2.673", Int

- countershaft front bearing

1шт.

30

11378

BELLEVILLE WASHER

- third gear retaining

1шт.

31

11377

X

WASHER - spring, third gear retaining

1шт.

32

O4056TS

CUP

- bearing

1шт.

33

W9651S

CUP ASSY.

CONE - bearing

1шт.

34

11380

NUT

- adjusting, countershaft front bearing

1шт.

35

51200023

GASKET

- countershaft front bearing cap

1шт.

36

11381

CAP

- countershaft front bearing

1шт.

37

D20542

X

HHCS AND LOCKWASHER

3шт.

38

34592

SHAFT

- reverse idler

1шт.

39

34594

X

PLUG - pipe, slotted headless

1шт.

40

11385

LOCK ASSY

LOCK - reverse idler shaft

1шт.

41

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

(Idler shaft lock) Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

42

48526

X

WASHER - lock (3/8), (Idler shaft lock screw)

1шт.

43

11450

TAPERED BEARING

BEARING - needle, reverse idler

2шт.

44

NLS

NO LONGER SERVICED

GEAR - reverse idler

1шт.

45

11396

ROD

- shift, first and reverse

1шт.

46

11398

PIN

- lock, shift rod, short

1шт.

47

11397

ROD

- shift, second and third

1шт.

48

11399

PIN

- lock, shift rod, long

1шт.

49

11400

FORK TEDDER

FORK - shift, first and reverse

1шт.

50

NLS

NO LONGER SERVICED

FORK - shift, second and third

1шт.

51

11403

SPRING

- mesh lock

2шт.

52

VT4913

X

BALL - mesh lock

2шт.

53

11456

SPACER - first and reverse shift fork

5шт.

54

NLS

NO LONGER SERVICED

COVER AND GUIDE - control

1шт.

55

11391

GASKET

- control, Serial Range: cover-case

1шт.

56

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

57

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

58

CASCAS11393

WASHER - pivot, gear shift lever

1шт.

59

CAS11454

RING, SNAP

SNAP RING - gear shift lever

1шт.

60

37238

LEVER

- gear shift

1шт.

61

31365

PIN

- stake, gear shift lever

1шт.

62

VT2017

X

COVER - dust, gear shift lever

1шт.

63

O3501AB

X

KNOB - gear shift liver

1шт.

64

11429

GASKET

- transmission cover plate, Serial Range: -case

1шт.

65

D21185

PLATE

- cover, transmission

1шт.

66

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

11шт.

67

92-7

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

11шт.

68

NLS

NO LONGER SERVICED

SPACER - final drive, RH

1шт.

69

NLS

NO LONGER SERVICED

SPACER - final drive, LH

1шт.

70

46505

STUD

- 9/16 x 2-1/2

12шт.

71

25-279

NUT - lock (9/16 - 18NF)

12шт.

72

13-916

BOLT,Hex, 9/16" - 12 x 1", Gr 5

HHCS - 9/16 - 12NC x 1 (Top plug)

4шт.

73

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(Front plug) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

74

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

(Side plug) Hex, 3/4"-10 x 1 1/4", G5

4шт.

75

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

8шт.

76

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

77

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18NF)

8шт.

78

100-1387

SNAP RING,#87, Ext

SEAL - "O" ring, final drive spacer outer flange

2шт.

79

32369

SEAL

- cork, Serial Range: flange-transmission

2шт.
