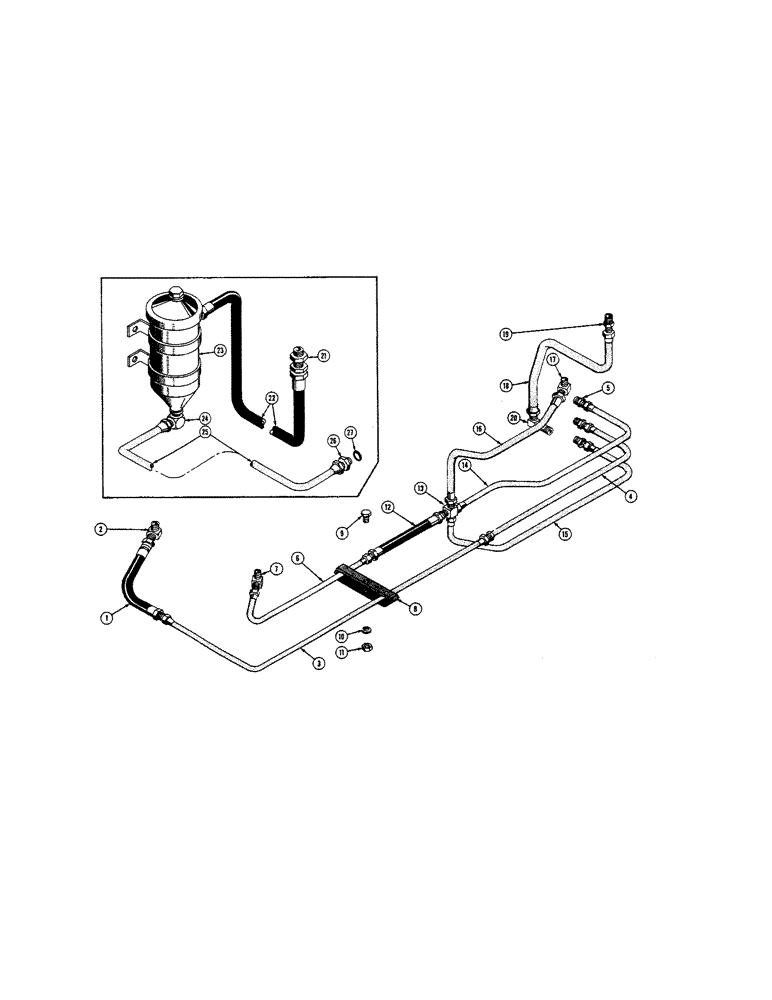

Запчасти Case 520 (072) - TORQUE CONVERTER HYDRAULICS (03) - TRANSMISSION

1

36724

BEARING CONE,19.07mm ID x 16.64mm W

HOSE - radiator to torque convertor center port (Front section)

1шт.

2

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree male, 3/8 JIC x 1/4 NPT

1шт.

3

36722

ROD

TUBE - radiator to torque convertor center port (Center section)

1шт.

4

19153

TUBE - radiator to torque convertor center port (Rear section)

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - male, 3/8 JIC x 1/4 NPT

3шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, not shown

3шт.

6

36726

BEARING CONE,31.75mm ID x 16.76mm W

TUBE - radiator to tee (Front section) (Gas model only)

1шт.

6

84356153GV

BEARING

Value

1шт.

D23756

TUBE - radiator to tee (Front sectin) (Diesel model only)

1шт.

7

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree male, 3/8 JIC x 1/4 NPT

1шт.

8

D20491

PLATE - tube clamp

2шт.

9

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16 - 24NF x 1

1шт.

10

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

12

36724

BEARING CONE,19.07mm ID x 16.64mm W

HOSE - radiator to tee (Rear section)

1шт.

13

218-665

TEE

- 5/8 JIC x 3/8 JIC

1шт.

14

19216

TUBE - tee to torque convertor upper port

1шт.

15

19215

TUBE - tee to torque convertor lower port

1шт.

16

39106

TUBE -, Serial Range: tee-reservoir

1шт.

17

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree male, 5/8 JIC x 1/2 NPT

1шт.

18

38173

LINE

TUBE - reservoir to torque convertor

1шт.

19

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC x 3/4 NPT

1шт.

20

D20071

ELBOW UNION

ELBOW - special 90 degree male, extra long

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Not shown

1шт.

21

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 3/4 NPT x 5/8 JIC, torque converter oil filter (backhoe models only)

1шт.

22

D21079

HOSE - reservor to oil filter side port, torque converter (backhoe models only)

1шт.

23

35033

SCREW

FILTER - oil, torque convertor, (backhoe models only)

1шт.

24

218-495

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 3/4 JIC x 1/2 NPT, torque converter oil filter (backhoe models only)

1шт.

25

35077

TUBE - oil filter bottom port to torque convertor, (backhoe models only)

1шт.

26

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, 5/8 JIC x 7/8 - 14NF, torque converter oil filter (backhoe models only)

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Torque converter oil filter (backhoe models only)

1шт.
