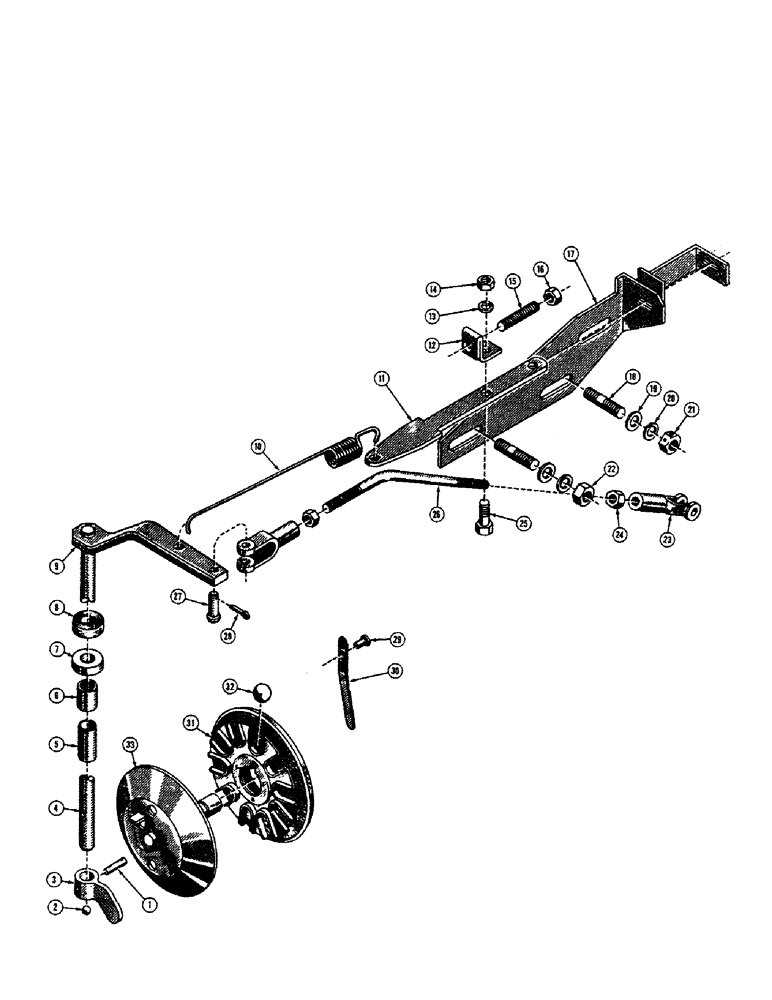

Запчасти Case 520 (048) - GOVERNOR, DIESEL (02) - FUEL SYSTEM

1

30399

PIN - taper

1шт.

2

O8635AB

X

BALL - governor rocker arm thrust bearing (1/4 dia.)

1шт.

3

30398

ARM - governor rocker

1шт.

4

NSS

NOT SOLD SEPARAT

SHAFT - governor rocker (Use R13390)

1шт.

5

30397

SPACER - rocker shaft

1шт.

6

30596

FLANGE

BEARING - needle

1шт.

7

30595

SEAL - dust, felt

1шт.

8

30594

SEAL - dust

1шт.

9

R13390

LEVER - governor

1шт.

10

33690

SPRING - governor control

1шт.

11

33689

SPADE - governor control

1шт.

12

30592

CLIP - idler stop adjusting

1шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28NF)

1шт.

15

30591

SCREW - headless set

1шт.

16

10491

GENERAL TOOL

NUT - hex. jam (1/4 - 28NF)

1шт.

17

11280

STOP BRACKET AND SUPPORT ASB'Y. - governor

1шт.

18

30425

CONNECTOR, ELEC

STUD - 3/8 - 16 NC x 1-1/2

2шт.

19

195-25

WASHER,3/8"

2шт.

20

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

30426

NUT - hex., special (3/8 - 16NC) (Drilled)

1шт.

22

30438

X

NUT - hex. (3/8 - 16NC)

1шт.

23

30419

END - rod, governor control

2шт.

24

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28NF)

2шт.

25

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

HHCS - 1/4 - 28NF x 5/8

1шт.

26

30418

ROD - governor control

1шт.

27

30421

PIN - control rod end

2шт.

28

30420

TENSION SPRING

PIN - cotter

2шт.

29

30585

RIVET - governor bumper spring (1/8 dia. x 7/16)

2шт.

30

30586

SPRING - governor bumper

1шт.

30590

PLUG

GOVERNOR - complete

1шт.

31

30588

DRIVER - governor

1шт.

32

O8296AB

X

BALL - governor driver (5/8 dia.)

10шт.

33

30589

SHAFT AND RACE - governor

1шт.

30417

SCREW - nylock (1/4 - 20NC x 5/8), governor bumper spring adjusting (Not shown)

1шт.
