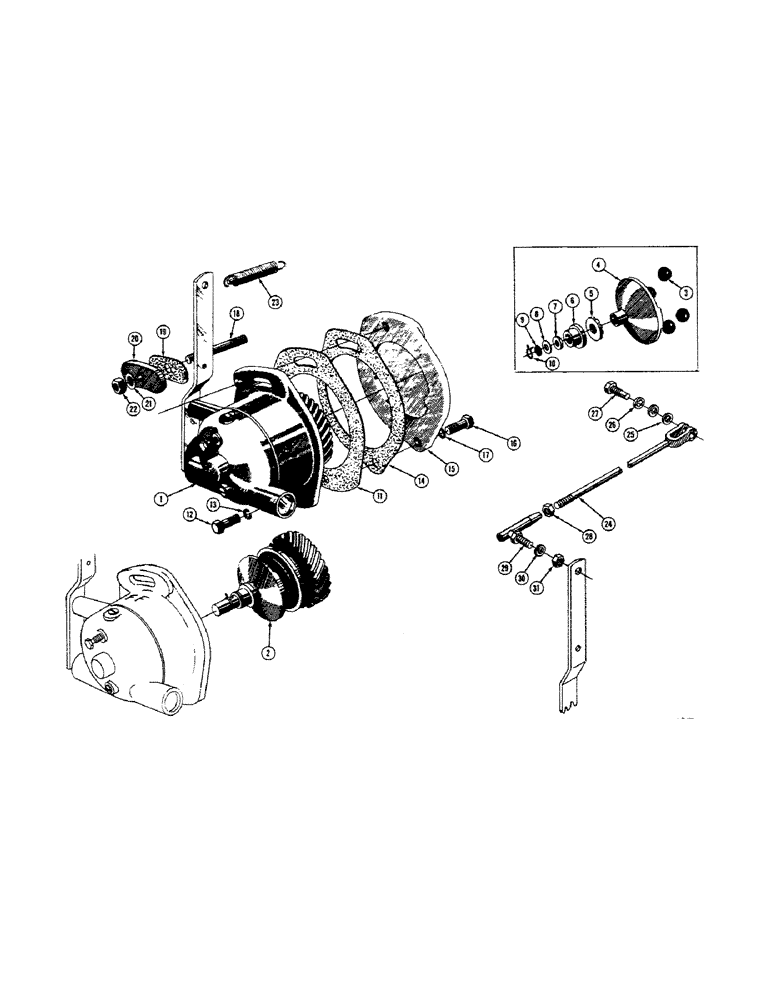

Запчасти Case 520 (020) - GOVERNOR, GAS (02) - FUEL SYSTEM

1

10456

GOVERNOR ASB'Y.

1шт.

2

10458

SEALING RING

WORKS ASB'Y. - governor

1шт.

3

VT3268

BALL - governor, 3/8 dia.

4шт.

4

10465

SEALING RING COLLAR

RACE - upper

1шт.

5

10466

BEARING - thrust

1шт.

6

10467

SEALING RING COLLAR

BASE - governor lever fork

1шт.

7

10468

WASHER - thrust, lever fork base

1шт.

8

10469

WASHER - thrust, lever fork base

1шт.

9

10472

SEALING RING COLLAR

PLATE - thrust

1шт.

10

10470

CLIP - governor works retaining

1шт.

11

10480

GASKET - governor

1шт.

12

10295

BUSHING

SCREW - 3/8 - 16NC x 1-1/8

1шт.

13

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

VT3694

X

GASKET - mag. hole

1шт.

15

10231

COVER - mag. hole

1шт.

16

10323

HHCS - 3/8 - 16NC x 1-3/8

1шт.

17

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

10322

STUD - 3/8 - 16NC x 3-7/8

1шт.

19

10482

BUSHING

GASKET - governor flange

1шт.

20

10481

PLATE - governor gasket

1шт.

21

10498

FLANGE

WASHER - copper

1шт.

22

30438

X

NUT - hex. (3/8 - 16NC)

1шт.

23

10022

SPRING

ASB'Y. - governor

1шт.

24

10127

ROD -, Serial Range: governor-carburetor

1шт.

25

10032

NUT

WASHER - plain

2шт.

26

48525

X

WASHER - lock

1шт.

27

10029

SCREW - yoke, Serial Range: end-carburetor

1шт.

28

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28NF)

1шт.

29

10031

JOINT - ball

1шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28NF)

1шт.
