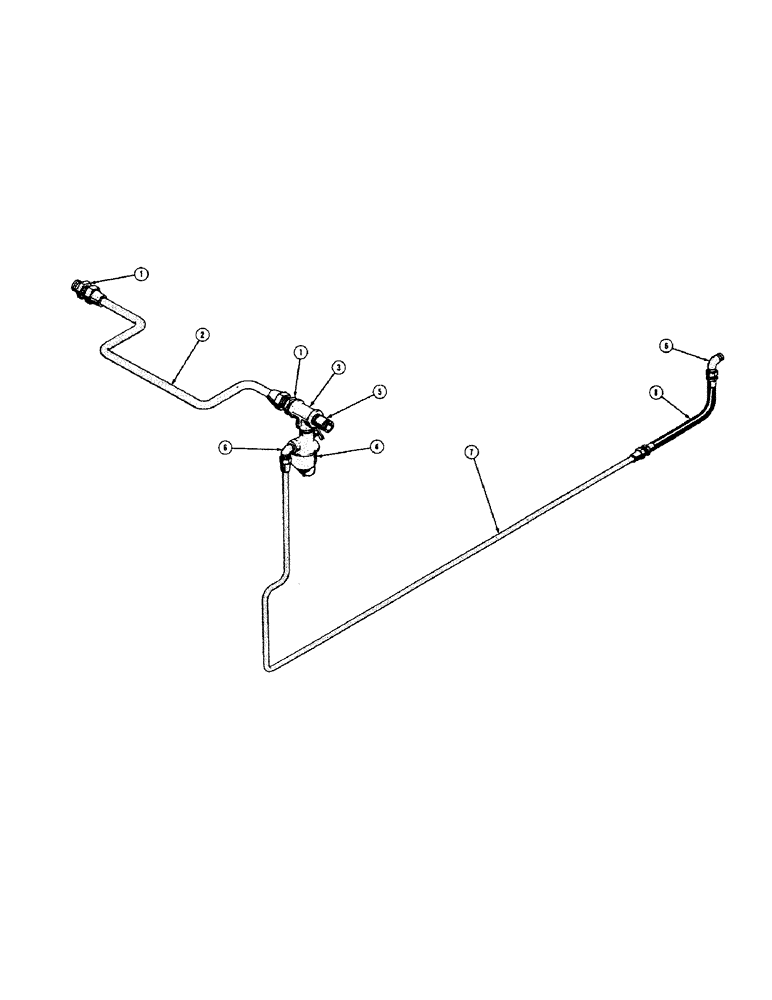

Запчасти Case 520 (020[1]) - FUEL LINES, BACKHOE, GAS MODELS (02) - FUEL SYSTEM

1

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

CONNECTOR - male, 3/8 NPT x 1/2 JIC

2шт.

2

35075

TUBE - fuel line (LH fuel tank to fuel strainer)

1шт.

3

221-423

TEE,3/8" NPT

- pipe, 3/8 NPT

1шт.

4

O3990AB1

X

STRAINER - fuel (See figure 60 for breakdown)

1шт.

5

221-161

PIPE,Nipple, 3/8" NPT x 1 1/2"

NIPPLE - 3/8 NPT x 1-1/2

1шт.

6

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degrees male, 1/8 NPT x 1/4 JIC

2шт.

7

35076

TUBE - fuel line (Fuel, Serial Range: strainer-hose)

1шт.

8

36774

FORK

HOSE - fuel line (Tube to fuel pump)

1шт.
