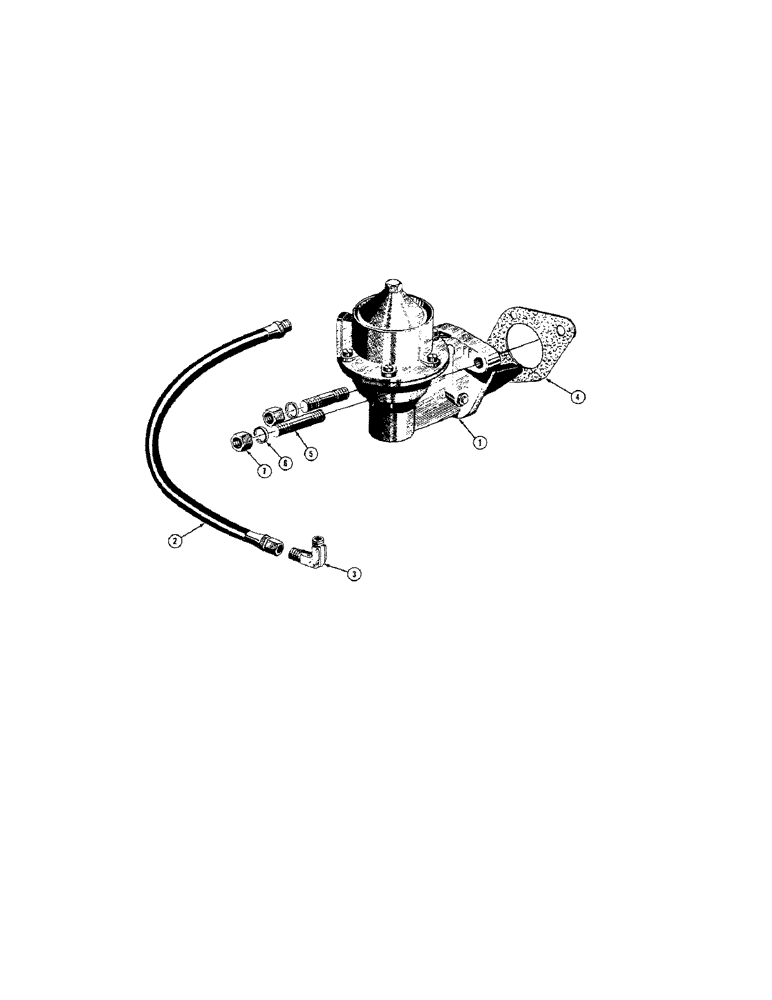

Запчасти Case 520 (016[1]) - FUEL PUMP, GAS (02) - FUEL SYSTEM

1

10023

PUMP - fuel

1шт.

2

10026

HOSE - fuel, Serial Range: pump-carburetor

1шт.

3

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

(Carburetor inlet) 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

4

10123

GASKET - fuel, Serial Range: pump-block

1шт.

5

31173

STUD - 5/16 - 18NC x 1-1/2

2шт.

6

92-6

LOCK WASHER,3/8"

WASHER - heavy sec. lock (5/16)

2шт.

7

47861

KNOB

NUT - hex. (5/16 - 18NC)

2шт.
