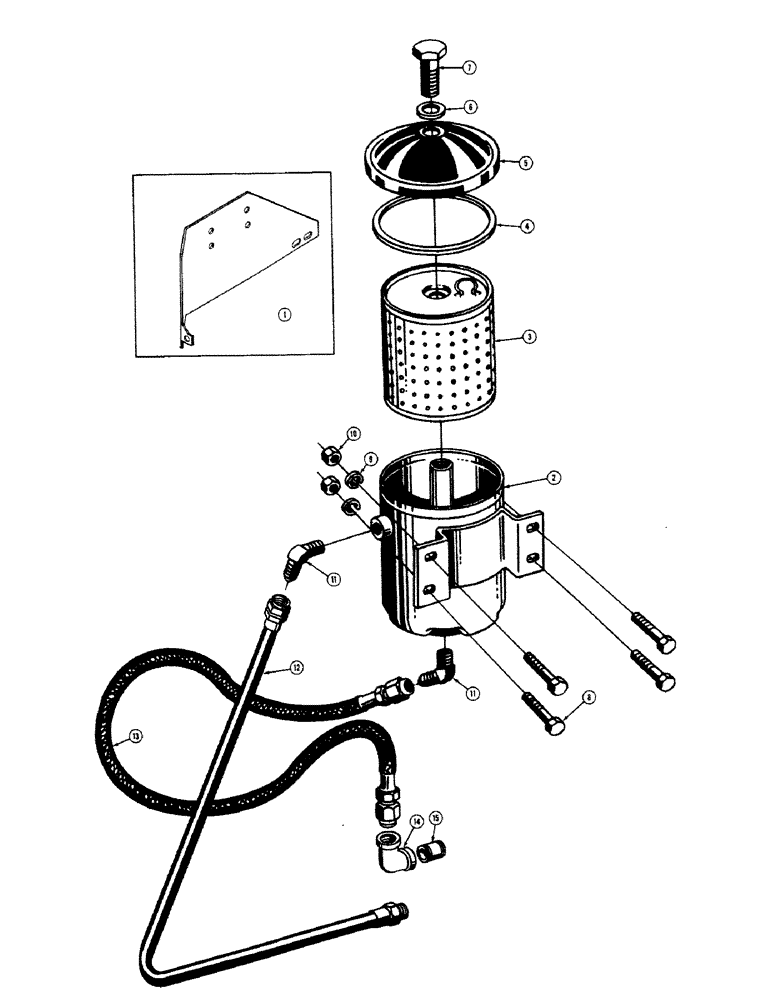

Запчасти Case 520 (050) - ENGINE OIL FILTER, DIESEL (01) - ENGINE

1

38030

SHIM,.003" Thk

BRACKET - mounting, oil filter

1шт.

G11068

O-RING

FILTER - engine oil, complete

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - oil filter

1шт.

3

G45008

ELEMENT

CARTRIDGE - oil filter

1шт.

4

G46006

GASKET

- oil filter cover

1шт.

5

34850

CYLINDER

COVER - oil filter

1шт.

6

10054

COLLAR

GASKET - cover screw

1шт.

7

10055

SCREW - oil filter, Serial Range: cover-body

1шт.

8

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

4шт.

9

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

11

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

x 1/4 SAE 90º, 7/16"-20, 45º Fl x 1/8" NPT

2шт.

12

D20271

HOSE - side of oil, Serial Range: filter-block

1шт.

13

36566

HOSE - bottom of oil, Serial Range: filter-block

1шт.

14

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

15

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - outside hex. (1/4 NPT x 1/8 NPT)

1шт.
