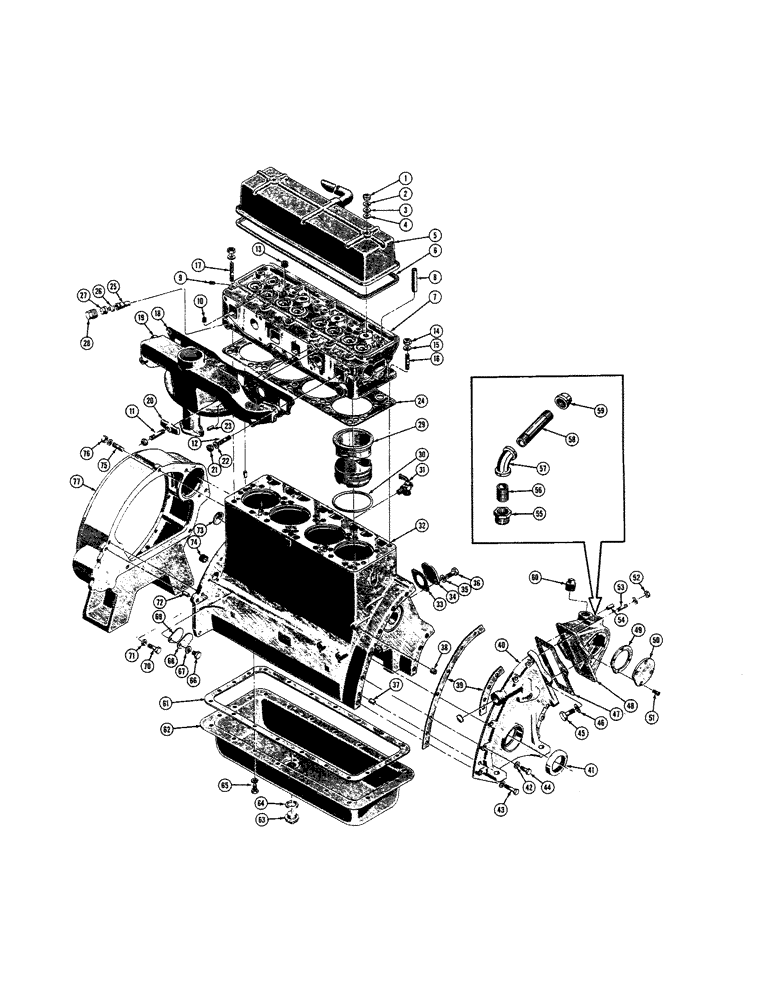

Запчасти Case 520 (030) - ENGINE BLOCK AND RELATED PARTS, DIESEL (01) - ENGINE

31062

CONNECTOR, ELEC

ENGINE ASB'Y. - diesel, complete

1шт.

1

30438

X

NUT - hex. (3/8 - 16NC)

2шт.

2

48507

RUNNER

WASHER - lock, Shakeproof (7/16)

2шт.

3

10096

NUT

WASHER - plain (3/8)

4шт.

4

30257

GASKET

- copper asbestos

2шт.

5

11231

COVER ASB'Y. - cylinder head

1шт.

6

30019

SPRING

- cylinder head cover to cylinder head

1шт.

7

34841

HEAD ASB'Y. - cylinder

1шт.

8

30068

TUBE - push rod

8шт.

9

221-661

PLUG,Hex Hd, 1/8"-27

- pipe, 1/8 NPT hex. hd.

1шт.

10

VT3383

X

PLUG, fuse

1шт.

11

30248

HYDRAULIC PUMP

STUD - 3/8 - 16NC x 2-1/8

4шт.

12

VT4501

STUD - 3/8 - 16NC x 1-11/16

4шт.

13

221-24

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG - pipe, 1/2 NPT ext. sq. hd.

2шт.

14

10142

LARGE PLATE

NUT - hex., (7/16 - 20NF)

20шт.

15

VT3340

X

WASHER - plain (29/64" ID x 3/4" OD x 1/16 ga.)

20шт.

16

30320

STUD - 7/16 - 14/20 x 2-1/2

5шт.

17

30322

STUD - 7/16 - 14/20 x 5-13/16

15шт.

18

30111

COLLAR

GASKET - manifold

1шт.

19

33691

SEAT

MANIFOLD - intake and exhaust

1шт.

20

30110

DECAL

CRAB - manifold

4шт.

21

10452

SEALING RING

NUT - hex. (3/8 - 16NC)

8шт.

22

10096

NUT

WASHER - plain (3/8)

4шт.

23

30234

DOWEL - manifold to cylinder head

2шт.

24

30031

PRESSURE PIPE

GASKET - cylinder, Serial Range: head-block

1шт.

25

30025

BODY ASB'Y. - energy cell

4шт.

26

30022

SPRING

CAP - energy cell

4шт.

27

30027

PRESSURE PIPE

RETAINER - energy cell

4шт.

28

30026

RIGID TUBE

PLUG - energy cell retainer

4шт.

29

30016

SLEEVE

- cylinder

4шт.

30

30013

PULLEY

PACKING - cylinder liner

8шт.

31

10554

X

DRAIN COCK - water, block

1шт.

32

34840

AIR COMPRESSOR

BLOCK - engine

1шт.

33

10123

GASKET - fuel pump hole cover

1шт.

34

10121

COVER - fuel pump hole

1шт.

35

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

WASHER - copper (5/16)

2шт.

36

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

37

30233

DOWEL - 3/8 dia. x 3/4

2шт.

38

VT3395

X

PLUG - pipe, 1/4 NPT ctsk. hd.

3шт.

39

30056

O-RING

GASKET - gear, Serial Range: cover-block

1шт.

40

34875

O-RING

COVER ASB'Y. - gear

1шт.

41

10972

HOSE,Female, 1.5-2.5 mm2

SEAL - crankshaft oil and dust

1шт.

42

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

43

NLS

NO LONGER SERVICED

HHCS - 3/8 - 16NC x 1-5/8

3шт.

44

10295

BUSHING

HHCS - 3/8 - 16NC x 1-1/8

5шт.

45

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

46

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

47

30070

PULLEY

GASKET - injection pump adaptor to gear cover

1шт.

48

30069

PULLEY

ADAPTOR - injection pump

1шт.

49

30072

GASKET - adaptor hole cover

1шт.

50

30073

COVER - adaptor hole

1шт.

51

172-97

FHMS - #10 - 32NF x 1/2

4шт.

52

30438

X

NUT - hex. (3/8 - 16NC)

4шт.

53

VT3675

X

STUD - 3/8 - 16NC x 1-1/2)

4шт.

54

30233

DOWEL - adaptor to gear cover

2шт.

55

221-70

BUSHING - outside hex. (1-1/4 x 1)

1шт.

56

221-236

PIPE,Nipple, 1" NPT x 1 1/2"

NIPPLE, close (1 dia. x 1-1/2)

1шт.

57

221-370

ELBOW

- 45 degrees pipe, 1 NPT x 1 NPT

1шт.

58

221-245

NIPPLE - pipe (1 dia. x 5)

1шт.

59

221-527

CAP,1" NPT

- oil filler pipe, 1 NPT

1шт.

60

221-16

PLUG,Sq Hd, 1"-11 1/2 NPTF

- pipe, 1 NPT ext. sq. hd.

1шт.

61

30055

BOOT

GASKET - oil, Serial Range: pan-block

1шт.

62

30081

BOLT,Hex Flg, 1/4"-20 x 1/2", Serr

PAN ASB'Y. - oil

1шт.

63

VT4521

X

PLUG - oil pan drain

1шт.

64

VT4520

X

GASKET - oil pan drain plug

1шт.

65

10314

LINING

SCREW AND LOCKWASHER - 5/16 - 18 NC x 3/4

19шт.

66

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

67

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

68

10133

COVER - flywheel pointer

1шт.

69

10134

FELT - pointer cover

1шт.

70

10323

SCREW - 3/8 - 16NC x 1-3/8

6шт.

71

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

72

30327

DOWEL - 7/16 dia. x 1

2шт.

73

VT3398

X

PLUG - Hubbard

1шт.

74

VT3395

X

PLUG - pipe, 1/4 NPT hex. ctsk hd.

1шт.

75

30329

STUD - 3/8 - 16NC x 1-5/8

1шт.

76

30438

X

NUT - hex. (3/8 - 16NC)

1шт.

77

33693

DOOR SEAL

HOUSING - flywheel

1шт.

30437

CHAIN

STUD - 5/16 - 18NC x 1-3/8, air inlet flange on manifold, parts not shown

2шт.

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Gear cover to block, parts not shown Hex, 3/8"-16 x 1 3/4", G5

1шт.

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd, Cylinder head plug, rear, parts not shown

1шт.

221-833

PLUG - pipe, 3/8 NPT ext. sq. head, cylinder head contact face, parts not shown

2шт.

10775

LOCK WASHER

PLUG - core hole, parts not shown

1шт.

30395

PLUG - pipe, 1/8 NPT, block cross drill at rear side, parts not shown

2шт.

30087

CLEVIS

PIN - flywheel pointer, parts not shown

1шт.

VT4501

STUD - 3/8 - 16NC x 1-11/16, gear cover to block, parts not shown

2шт.

30438

X

NUT - hex. (3/8 - 16NC) gear cover to block stud, parts not shown

4шт.

VT3675

X

STUD - 3/8 - 16NC x 1-1/2, gear cover to block, parts not shown

2шт.

221-834

X

PLUG - pipe, 1/2 NPT ext. sq. hd., thermo. couple hole, parts not shown

1шт.
