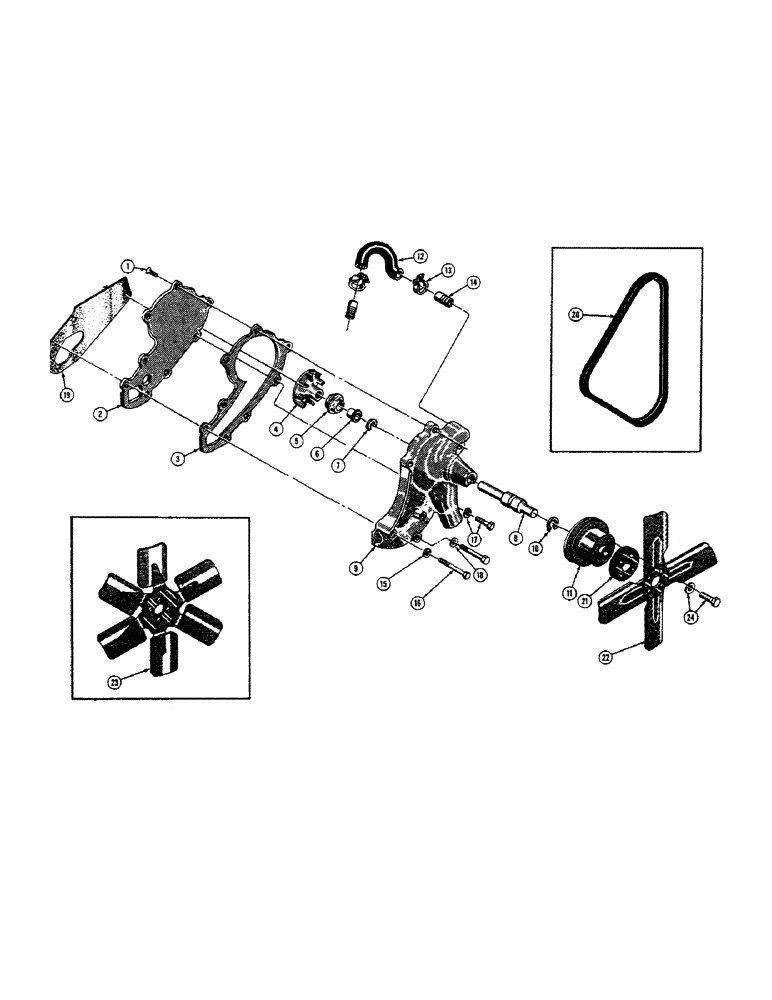

Запчасти Case 520 (016) - WATER PUMP, FAN, FAN BELT, AND PULLEY, GAS (01) - ENGINE

31175

PUMP ASB'Y. - water (Complete)

1шт.

1

10506

SCREW -, Serial Range: cover-body

4шт.

2

32682

COVER - water pump

1шт.

3

32683

IDLER

GASKET - water pump cover

1шт.

4

10502

IMPELLER - water pump

1шт.

5

10503

SEAL ASSY.

SEAL - water pump

1шт.

6

10505

SWITCH

SHEDDER - water

1шт.

7

10509

RING, LOCKING

RING - bearing seat

1шт.

8

10501

FLANGE

SHAFT - water pump

1шт.

9

32681

BODY - water pump

1шт.

10

10504

GASKET

RETAINER - water pump

1шт.

11

10592

FITTING

HUB - fan

1шт.

12

11072

HOSE - water pump to water outlet elbow

1шт.

13

10615

OLIVE

CLAMP- hose

2шт.

14

10628

NUT

NIPPLE - pipe, 3/8 NPT

2шт.

15

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

16

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

17

80680

LOCK WASHER,3/8 0.381 CST ZND

SCREW AND LOCKWASHER - 3/8 - 16NC x 1-1/4

1шт.

18

10298

COPPER WASHER

- copper

1шт.

19

10523

BUSHING

GASKET - water, Serial Range: pump-crankcase

1шт.

20

11585

COIL

BELT - fan drive

1шт.

21

30474

SPACER - fan

1шт.

22

G45244

FAN

- suction

1шт.

23

11290

FAN

- pusher

1шт.

24

10314

LINING

SCREW AND LOCKWASHER -, Serial Range: fan-hub

4шт.

11066

BELT

SCREW AND LOCKWASHER - 3/8 - 16NC x 2 (Not shown)

2шт.

6050

KIT - water pump repair (Not shown)

1шт.
